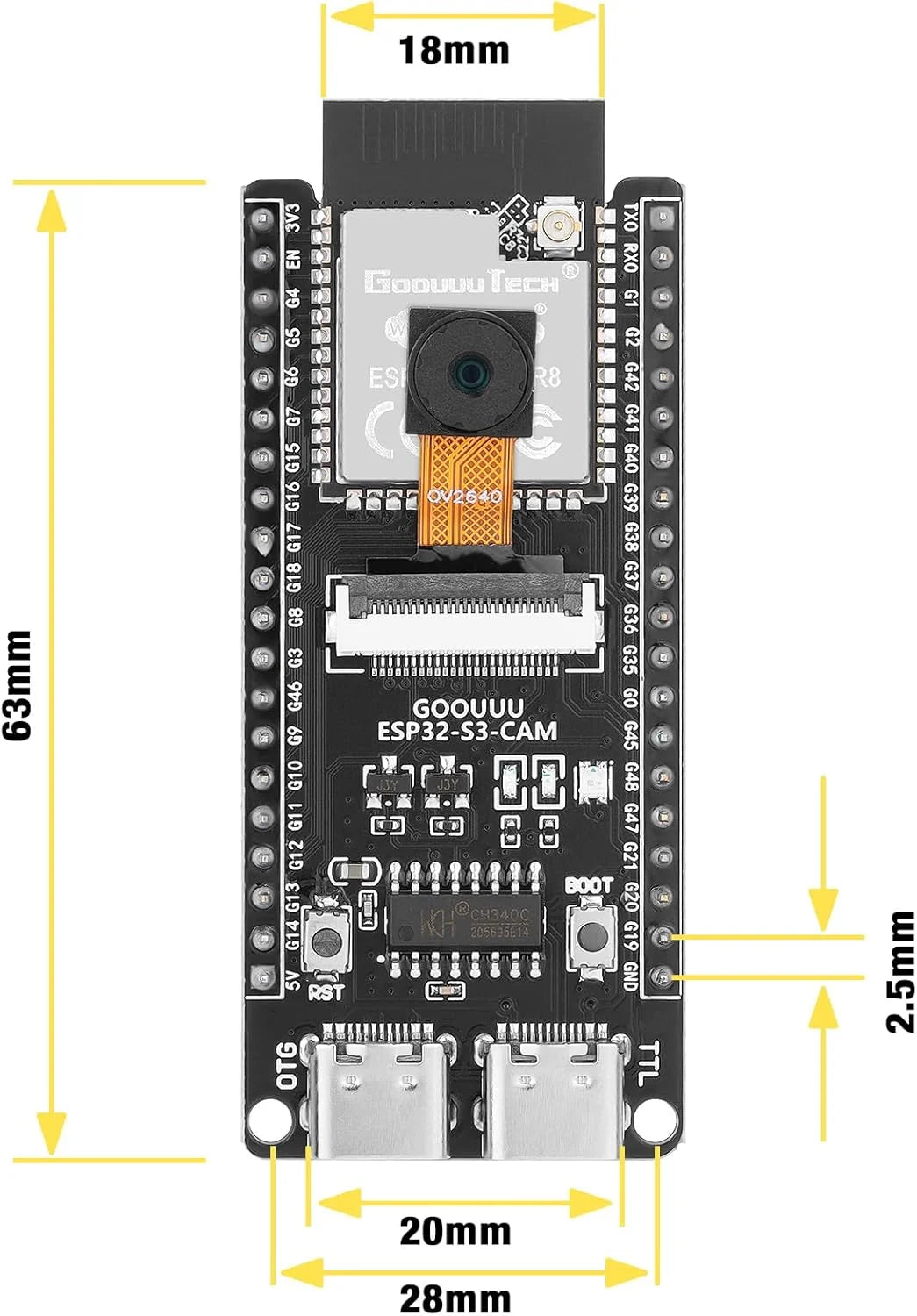

ESP32-S3-CAM OV3660 Camera Module Development Board

K-TECHNICS
In stock
KSh3,500.00

Secure checkout

Friendly support

Hassle-free returns

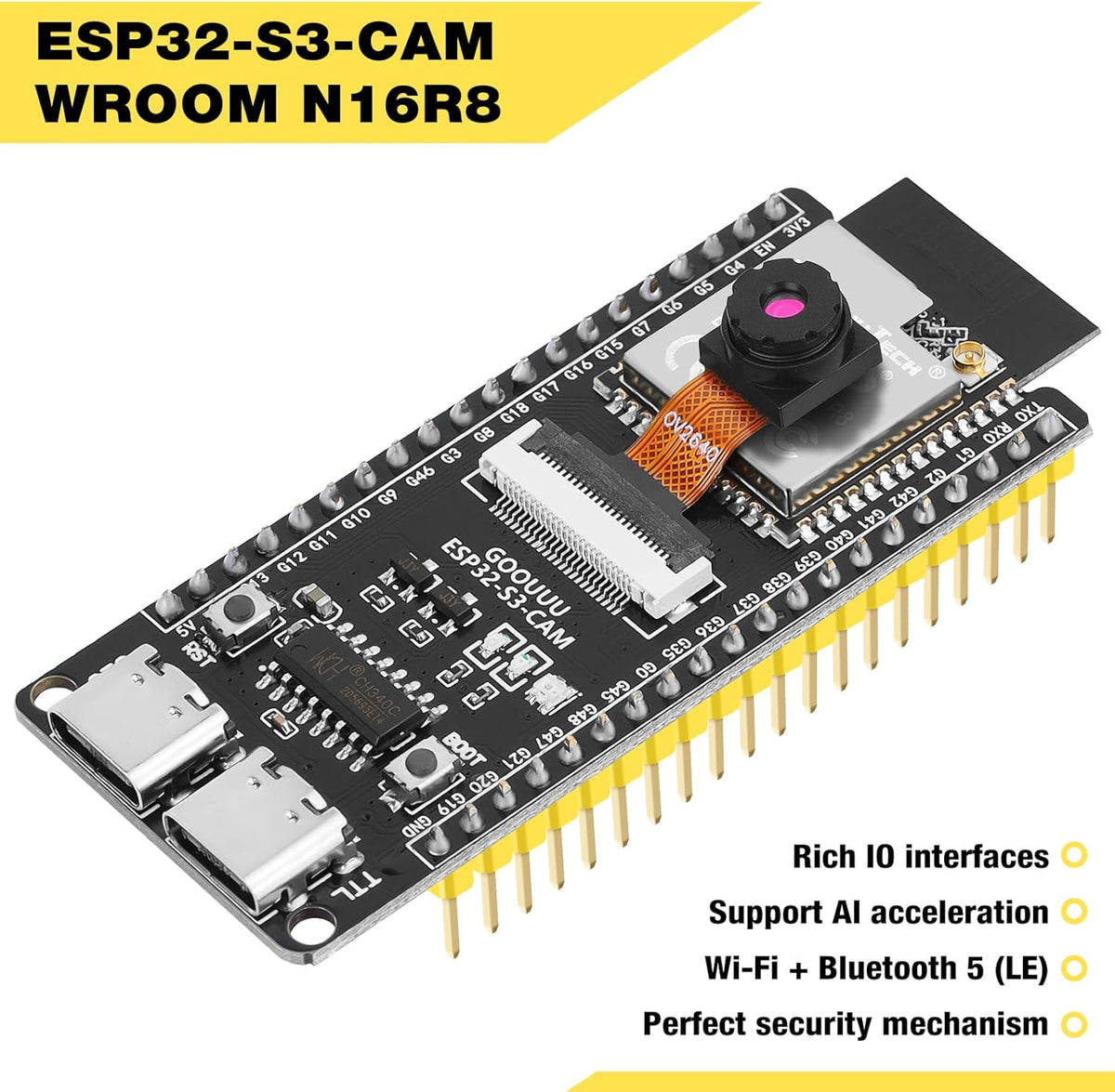

The ESP32-S3-CAM OV3660 Development Board is a powerful camera-enabled IoT development platform built around the ESP32-S3-WROOM-1-N16R8. It combines a dual-core 240MHz processor, 16MB Flash, 8MB PSRAM, 2.4GHz Wi-Fi, Bluetooth 5 LE, and a 3MP OV3660 camera for advanced vision and wireless applications.

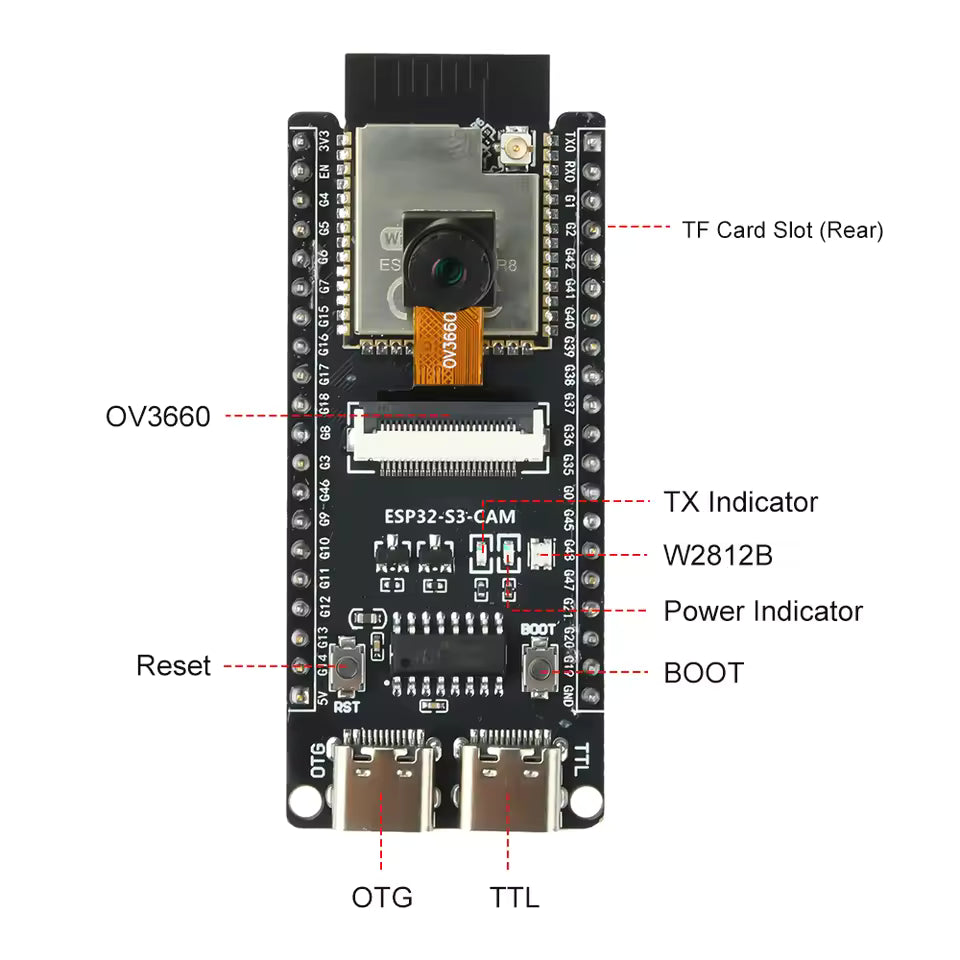

The board provides dual USB Type-C interfaces for programming/serial communication and USB OTG, along with a TF/microSD card interface for additional storage. It is an excellent platform for Wi-Fi cameras, image recognition, face detection, QR-code scanning, surveillance, robotics, AIoT, and smart-home projects.

Key Features

  • ESP32-S3-WROOM-1-N16R8 processor module
  • Dual-core Xtensa LX7 CPU up to 240MHz
  • 16MB Flash + 8MB PSRAM
  • Built-in 2.4GHz Wi-Fi
  • Bluetooth 5 LE
  • OV3660 3-megapixel camera
  • Camera supports DVP interface and JPEG, RGB565, YUV/YCbCr422 and RAW formats
  • Dual USB Type-C interfaces
  • USB-to-Serial programming interface
  • Native USB OTG
  • TF/microSD card slot
  • BOOT and RESET/PWR controls
  • Built-in RGB/status indicators
  • GPIO expansion headers
  • Suitable for Arduino, ESP-IDF and MicroPython development

Camera Specifications

Parameter Specification
Camera Sensor OV3660
Resolution Up to 2048 × 1536 (3MP)
Interface DVP
Lens Approx. 1/4"
Aperture Around F/2.2–F/2.4 depending on camera revision
Output JPEG, RGB565, YUV/YCbCr422, RAW
Application Image capture, streaming & computer vision

The OV3660 can capture images up to 2048 × 1536 pixels, making it suitable for detailed image capture and vision applications.

Technical Specifications

Parameter Specification
MCU ESP32-S3
Module ESP32-S3-WROOM-1-N16R8
CPU Dual-core Xtensa LX7
Clock Up to 240MHz
Flash 16MB
PSRAM 8MB
Wi-Fi 2.4GHz 802.11 b/g/n
Bluetooth Bluetooth 5 LE
USB USB Type-C / USB OTG
Storage TF/microSD card
GPIO Multiple programmable GPIOs
Camera OV3660 3MP
Operating Voltage 3.3V
USB Input 5V
