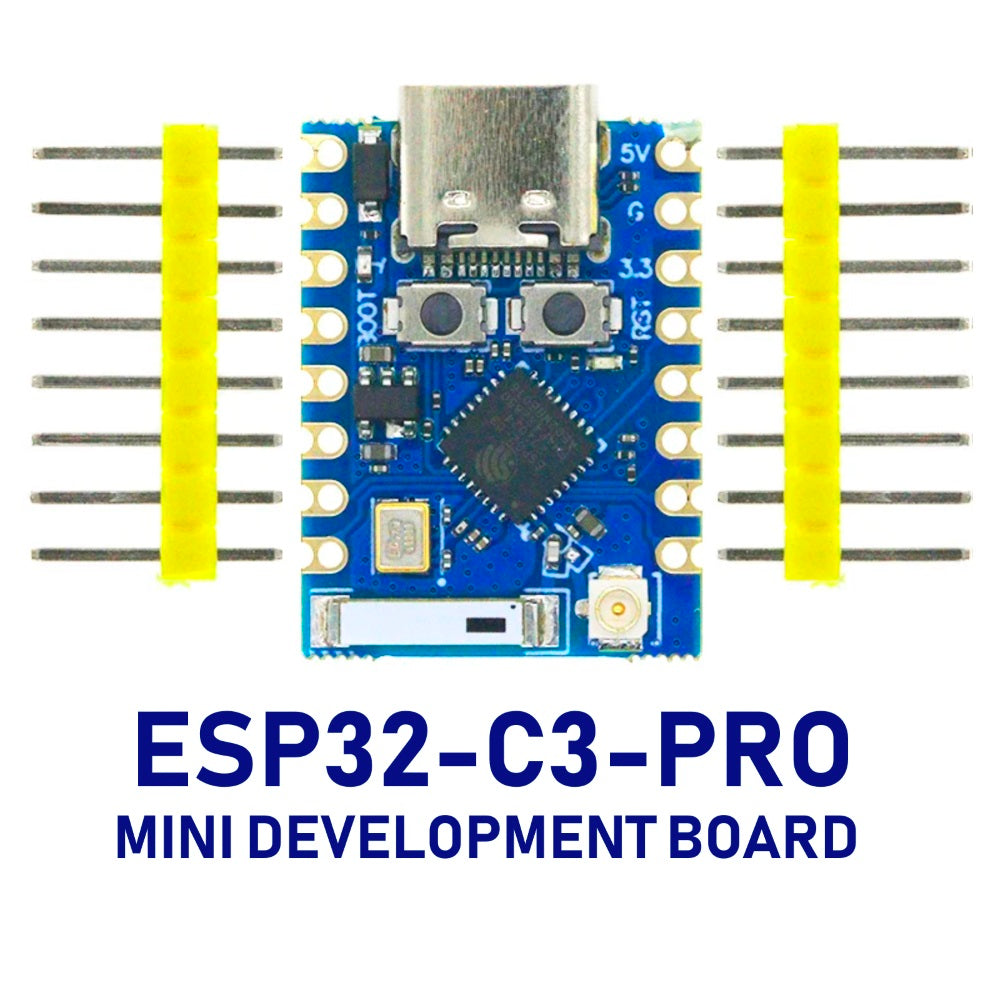

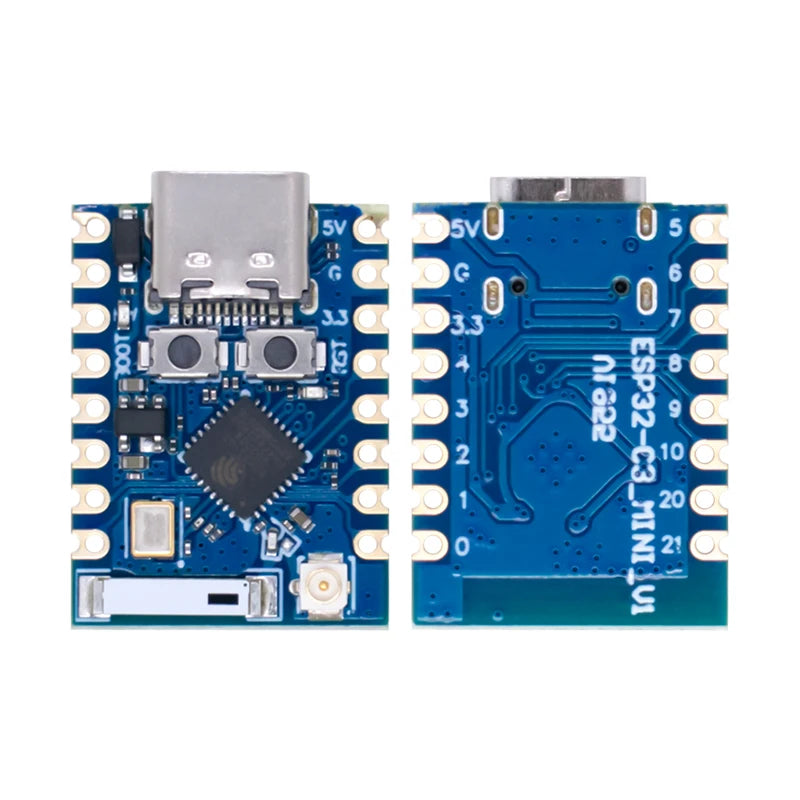

ESP32C3 PRO MINI development board type C

K-TECHNICS
In stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

The ESP32-C3 Pro Mini Development Board is an ultra-compact, low-power development board based on the ESP32-C3 RISC-V microcontroller. It combines 2.4GHz Wi-Fi and Bluetooth 5.0 LE connectivity in a small footprint, making it ideal for space-constrained IoT, automation, wearable, and smart-home projects.

The board features a convenient USB Type-C connector for power, programming, and serial communication. With up to 160MHz processing speed, 4MB Flash, 400KB SRAM, GPIO, ADC, PWM, UART, SPI, and I²C support, it provides a compact yet capable platform for embedded development.

It is compatible with popular development environments including Arduino IDE, ESP-IDF, PlatformIO, and MicroPython, making it suitable for both beginners and experienced developers.

Key Features

  • ESP32-C3 RISC-V 32-bit single-core processor
  • Up to 160MHz CPU frequency
  • 4MB Flash memory
  • 400KB SRAM
  • Built-in 2.4GHz Wi-Fi
  • Bluetooth 5.0 Low Energy (BLE)
  • USB Type-C interface
  • Native USB Serial/JTAG on supported board versions

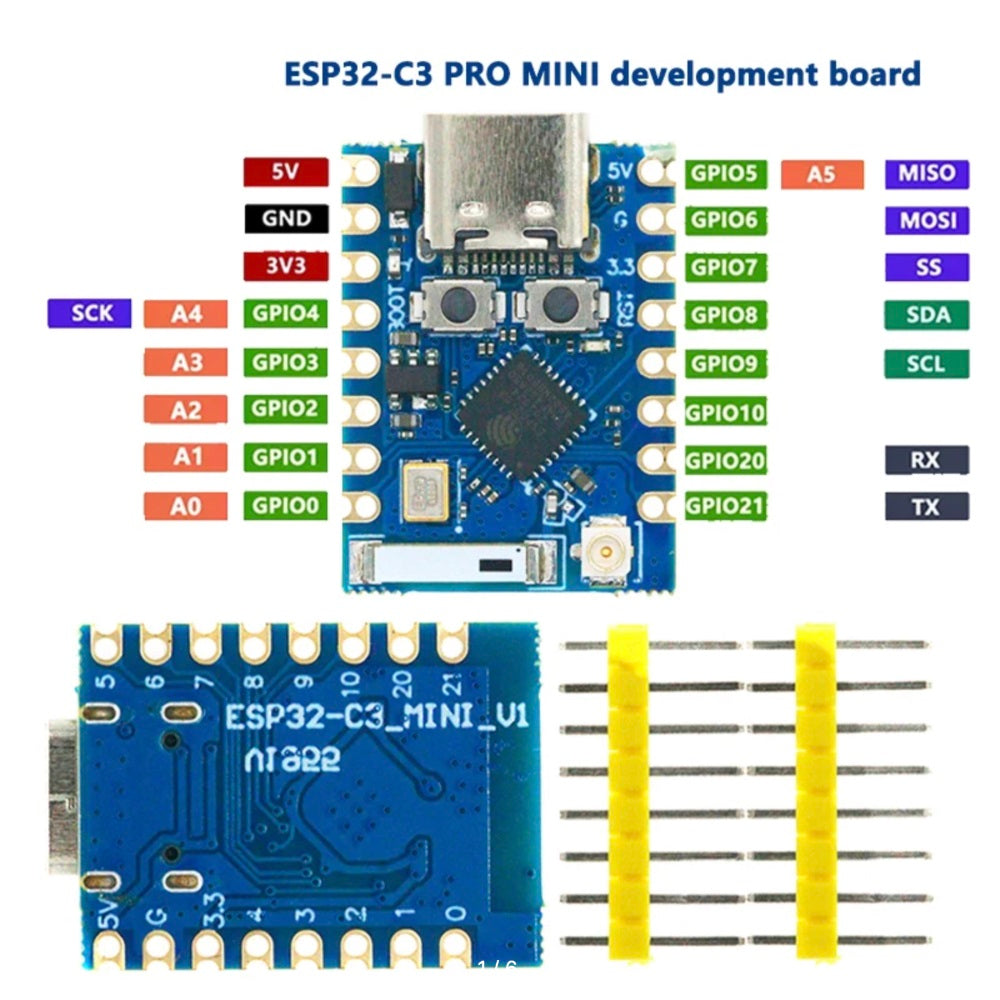

  • Multiple programmable GPIO pins
  • 6-channel ADC capability on ESP32-C3
  • PWM support
  • I²C, SPI and UART interfaces
  • Compact Super Mini / Pro Mini form factor
  • Boot and Reset buttons
  • Built-in status/user LED on typical board versions

Technical Specifications

Parameter Specification
MCU ESP32-C3
Processor 32-bit RISC-V Single Core
Maximum Frequency 160MHz
Flash 4MB
SRAM 400KB
Wi-Fi 2.4GHz 802.11 b/g/n
Bluetooth Bluetooth 5.0 LE
GPIO Up to 13 broken-out GPIOs, board dependent
ADC Up to 6 channels
UART 2
SPI 1
I²C 1
PWM Supported
USB USB Type-C
Logic Voltage 3.3V
External Input 5V via USB-C / 5V pin, depending on board revision
Dimensions Approx. 22.5 × 18mm
