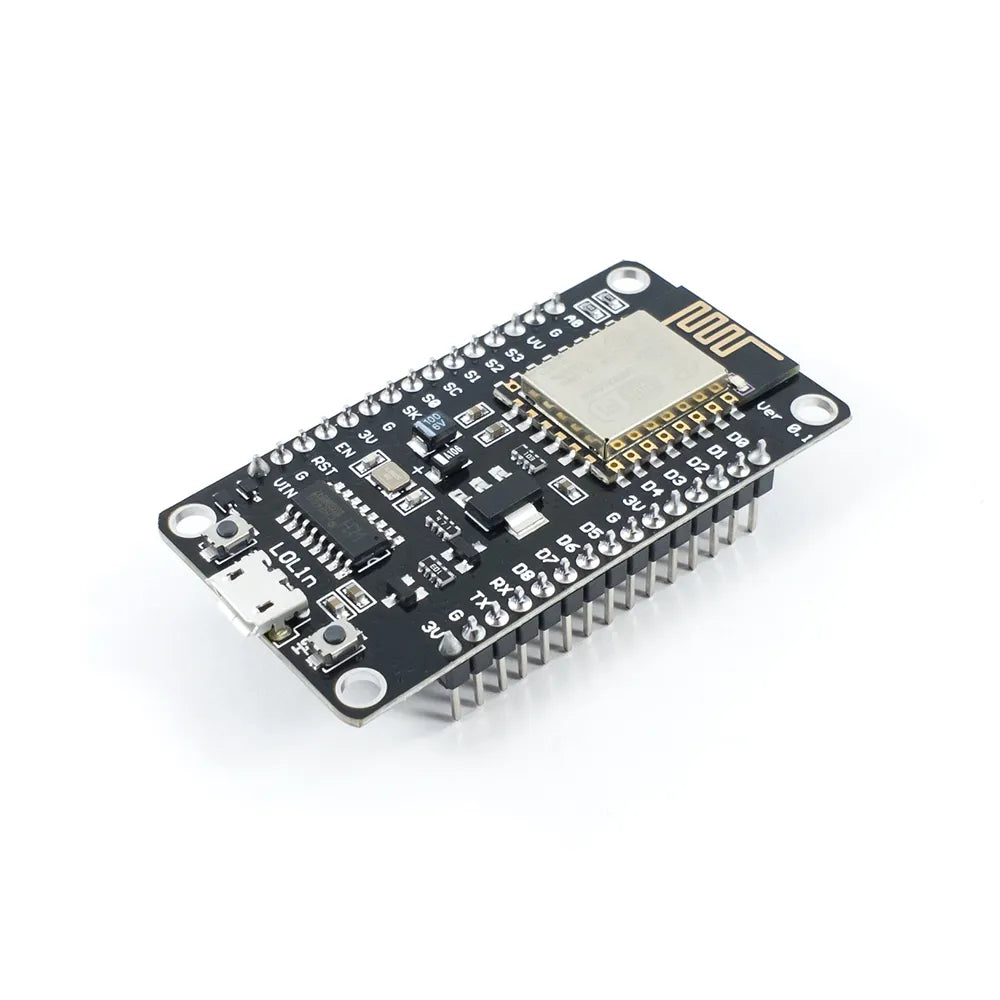

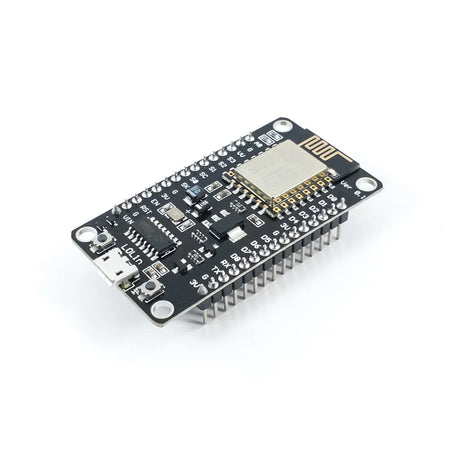

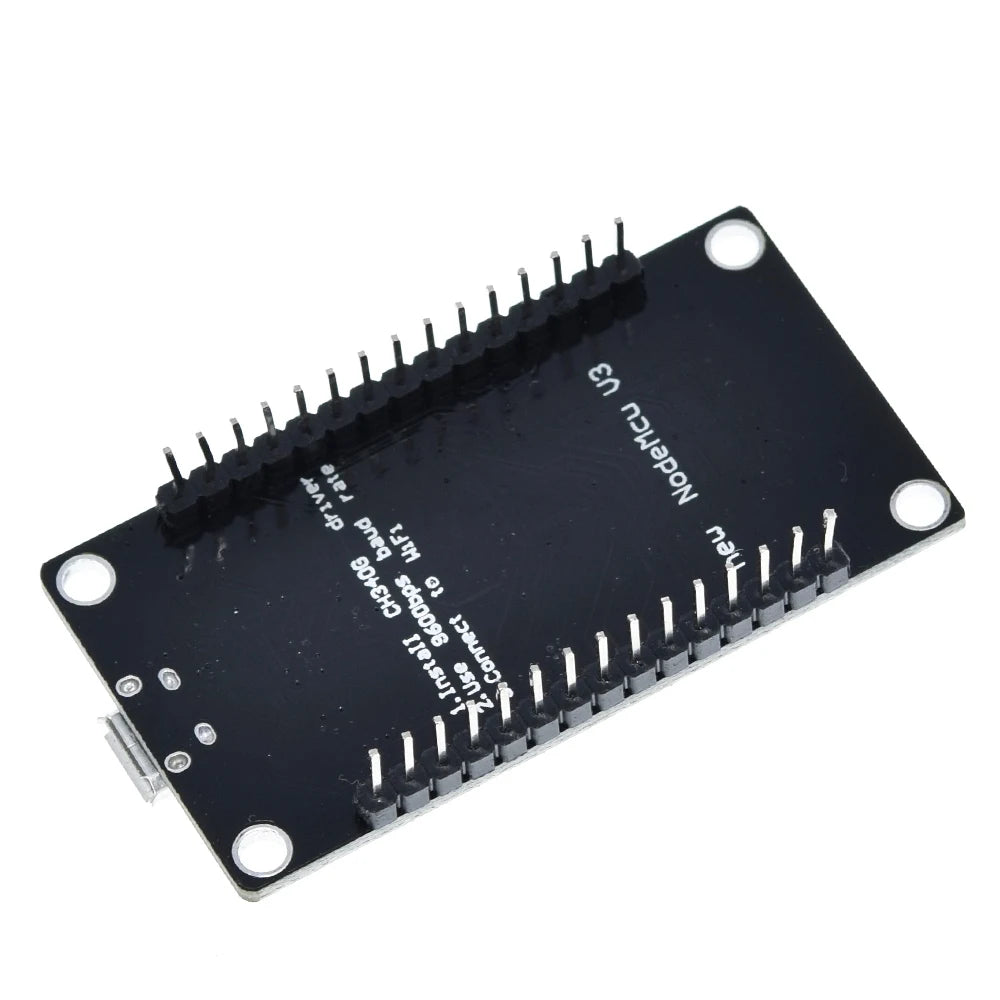

ESP8266 NodeMCU Lua V3 With CH340 WIFI module

K-TECHNICS
Out of stock
KSh1,000.00

Secure checkout

Friendly support

Hassle-free returns

Key Features

  • Based on the ESP8266 ESP-12E Wi-Fi SoC
  • Built-in 2.4GHz IEEE 802.11 b/g/n Wi-Fi
  • CH340 USB-to-Serial interface for easy programming
  • Compatible with Arduino IDE, Lua, and MicroPython
  • Micro USB connector for power and programming
  • Integrated PCB antenna for reliable wireless communication
  • Breadboard-friendly design
  • Onboard reset and flash buttons
  • Supports OTA (Over-the-Air) firmware updates

Technical Specifications

Parameter Specification
Module ESP8266 ESP-12E
USB Interface CH340
Operating Voltage 3.3V
Input Voltage 5V via Micro USB or VIN
Wi-Fi Standard IEEE 802.11 b/g/n (2.4GHz)
Flash Memory 4MB
CPU 32-bit Tensilica L106
Clock Speed 80MHz (up to 160MHz)
Digital GPIO Multiple GPIO pins
Analog Input 1 × 10-bit ADC
Communication Interfaces UART, SPI, I²C, PWM
USB Connector Micro USB
