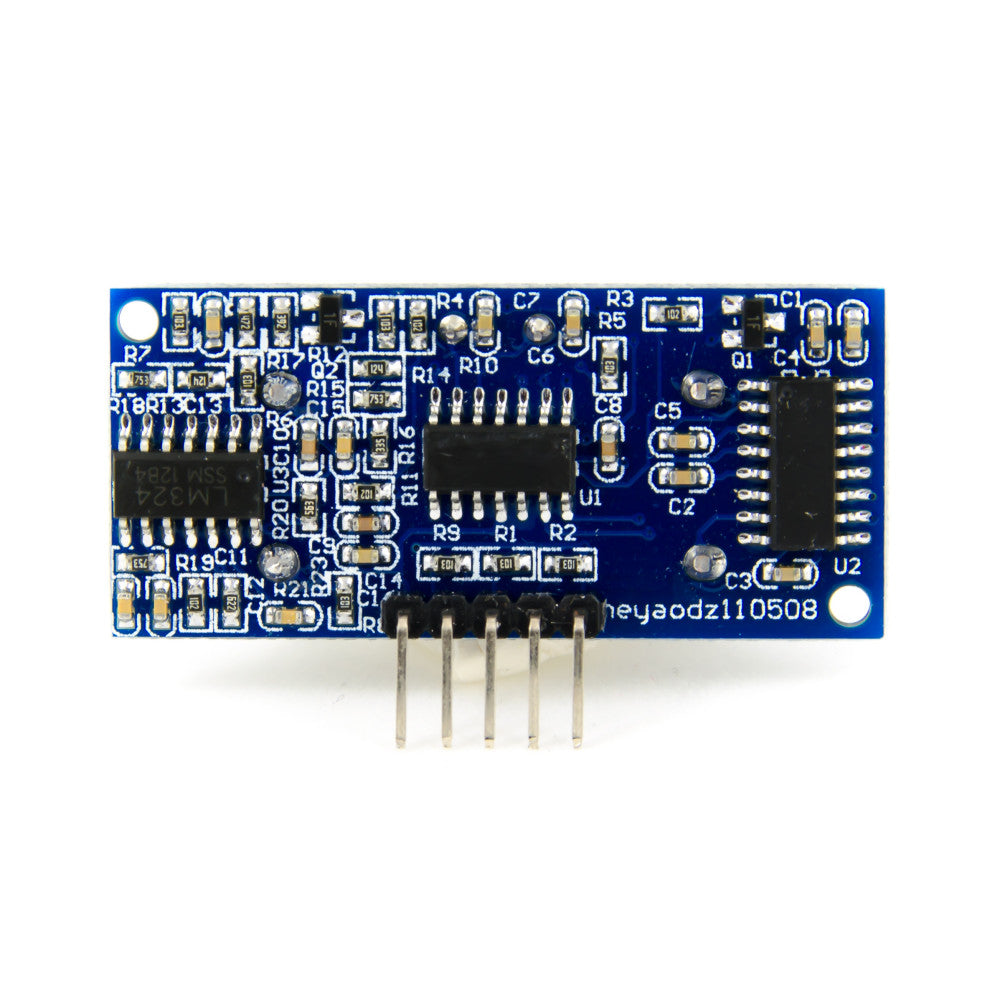

HC-SR05 Precision Ultrasonic Distance Sensor

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

The HC-SR05 (often cross-referenced or identical to the HY-SRF05) is a high-precision, non-contact ultrasonic distance sensor that provides reliable distance tracking regardless of an obstacle's color or lighting conditions. It serves as an upgraded, more versatile alternative to the popular HC-SR04 module, notably adding a 5th pin which allows it to alternate between a dual-pin or a single-pin control configuration.
Technical Specifications
  • Measurement Range: 2 cm to 4.5 meters
  • Measurement Precision/Resolution: Up to 0.3 cm
  • Operating Voltage: 4.5V to 5.5V DC (5V nominal)
  • Working Frequency: 40 kHz
  • Measuring Angle: Up to 15 degrees
  • Supply Current: 10 mA to 40 mA
  • Interface: Breadboard-friendly 5-pin male connector

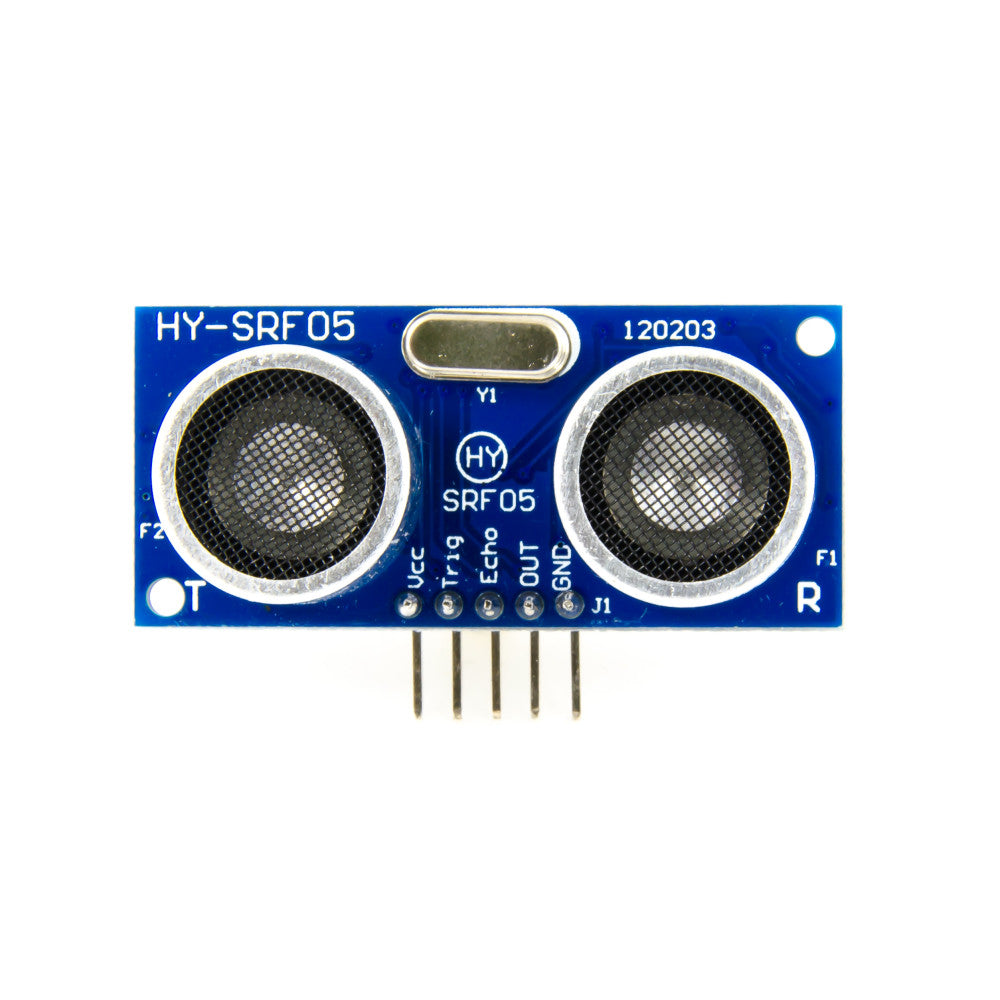

Pin Configuration
Unlike standard 4-pin sensors, the HC-SR05 features 5 pins:
  1. VCC: +5V Power Supply
  2. Trig (Trigger): Input pin used to trigger the ultrasonic pulse initiation.
  3. Echo: Output pin that emits a digital pulse whose length is proportional to the distance.
  4. OUT: Internal state/switching pin (often used to configure single-pin mode on compatible microcontroller hardware).
  5. GND: Ground connection.
How It Works
  1. Triggering: The host microcontroller sends a short 10-microsecond high pulse to the Trig pin.
  2. Emission: The sensor automatically responds by emitting an 8-cycle burst of 40 kHz ultrasonic sound waves.
  3. Echo Return: The waves travel through the air, hit an object, and bounce back to the receiver.
  4. Calculation: The Echo pin goes high the moment the pulse is sent and goes low when the bounce-back is received. The duration of this high signal is the Time-of-Flight (t).

Common Applications
  • Robotics: Obstacle avoidance and path routing for autonomous rovers.
  • Automation: Non-contact liquid or material level sensing in containers.
  • Security Systems: Proximity alarms and movement triggers.
