HC49S Standard Through-hole Quartz Oscillator (Multiple Values)

K-TECHNICS
Frequency

Secure checkout

Friendly support

Hassle-free returns

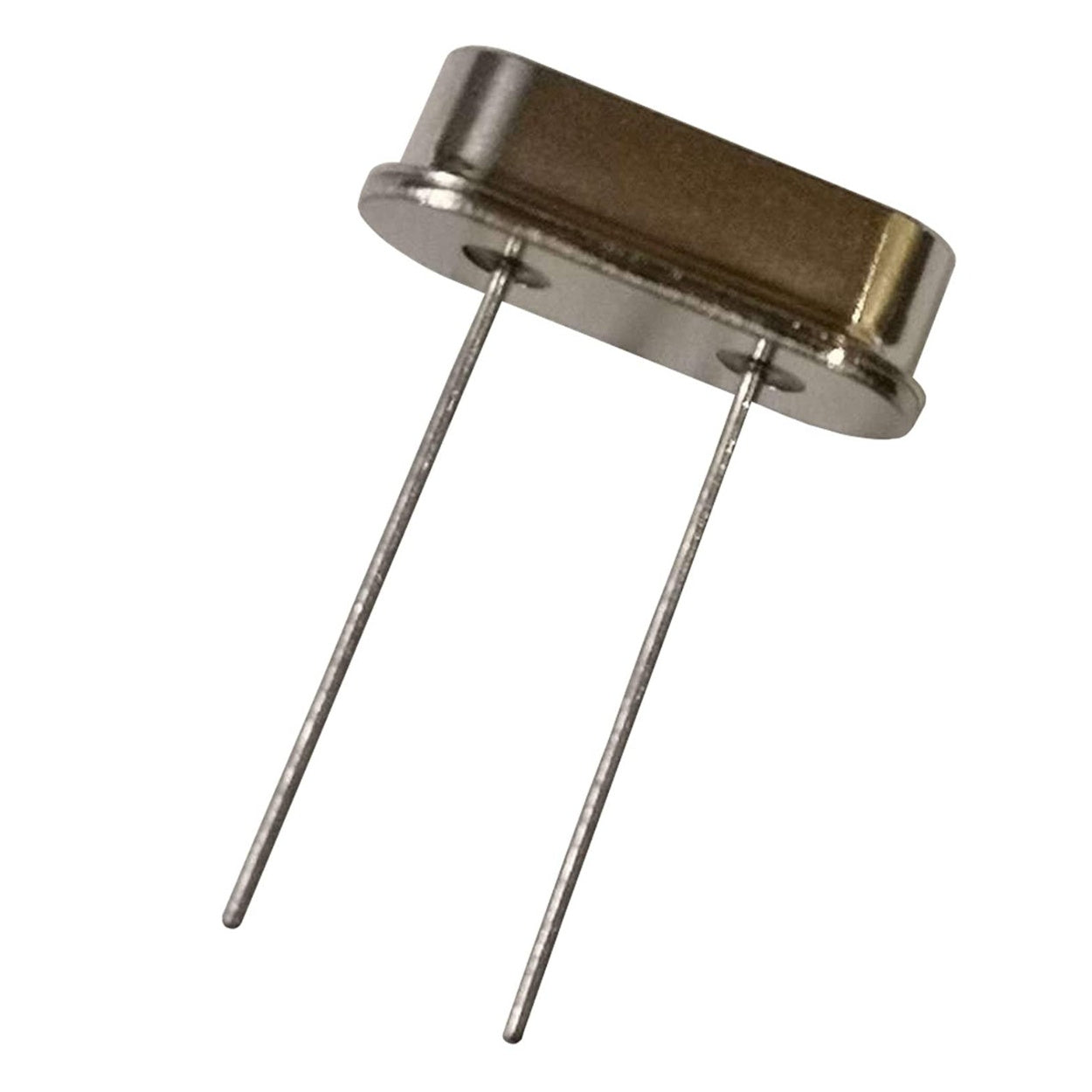

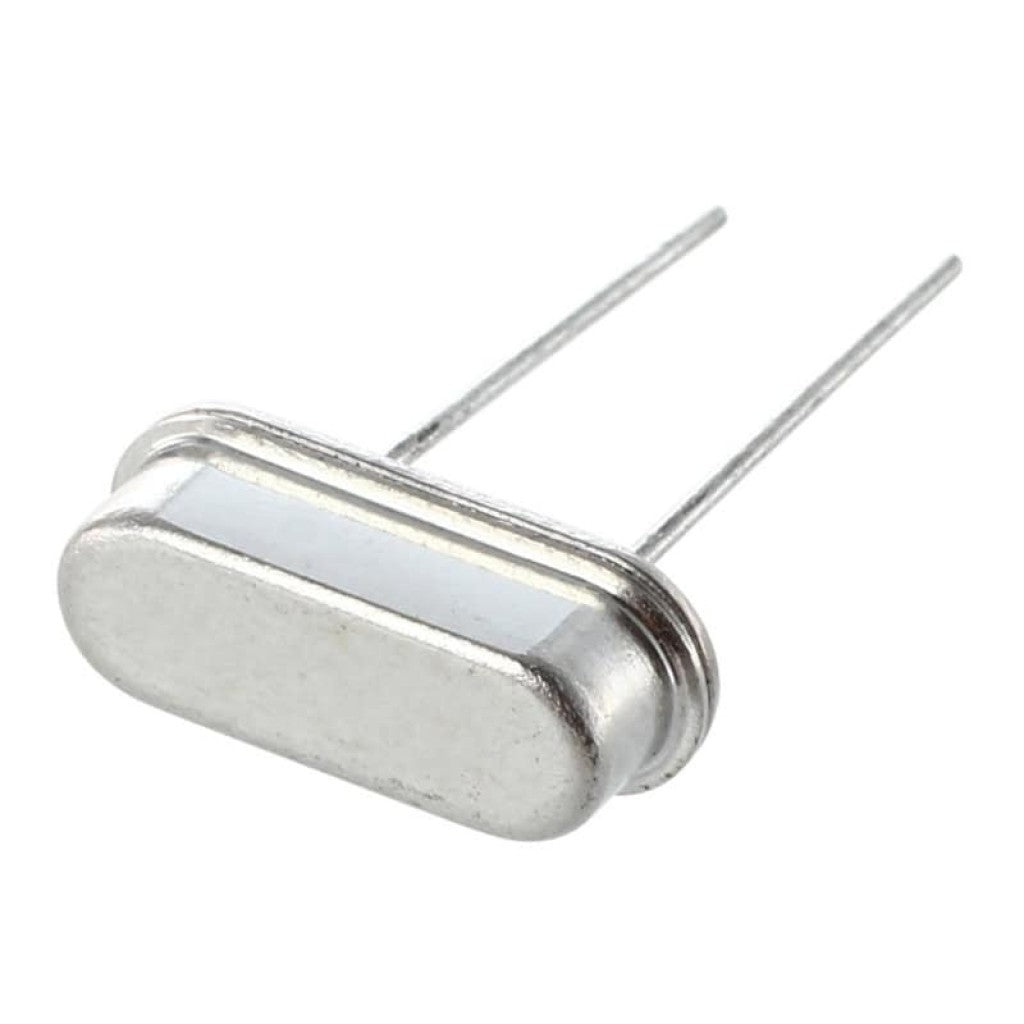

Built in the classic HC49S metal can package, this crystal resonator provides dependable frequency generation for microcontrollers, communication devices, embedded systems, and digital electronics. Its through-hole design ensures easy PCB mounting and strong mechanical stability, making it ideal for prototyping and production alike.

Key Features

  • Standard HC49S through-hole metal package
  • High frequency stability and low drift performance
  • Available in multiple common frequencies (varies by selection)
  • Low power drive level for efficient operation
  • RoHS-compliant and lead-free construction
  • Reliable long-term aging performance

Electrical Overview (Typical)

  • Frequency range: Common options from ~3.2 MHz to 48+ MHz (varies by variant)
  • Load capacitance: Typically 8pF, 10pF, 12pF, 16pF, or 20pF
  • Frequency tolerance: ±10 ppm to ±50 ppm (depending on variant)
  • Operating mode: Fundamental or 3rd overtone (based on frequency)

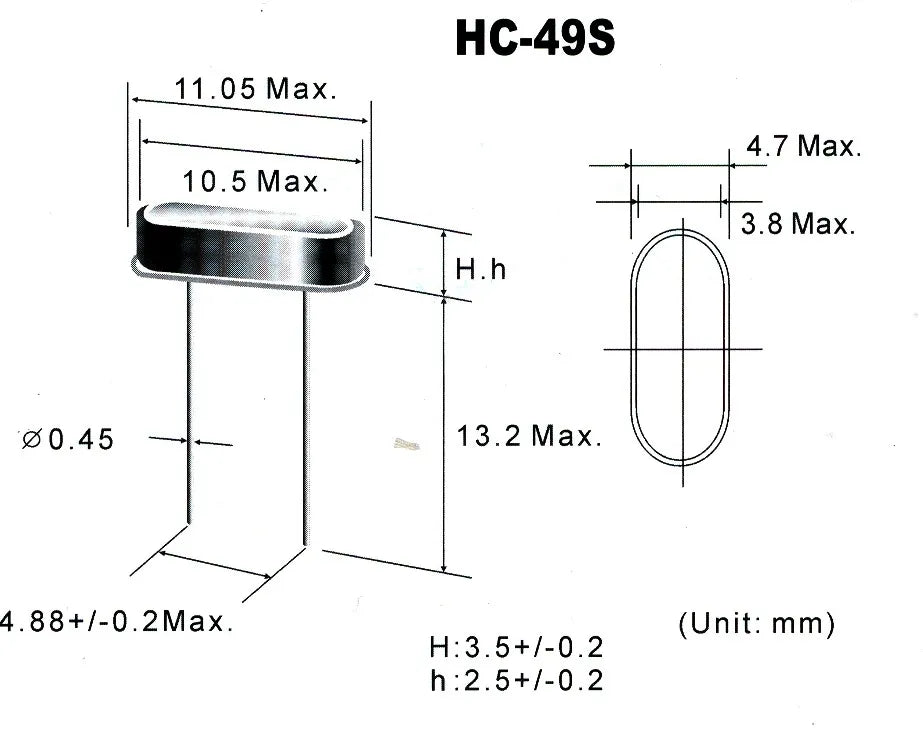

  • Package: HC49S through-hole metal can (2-pin)
