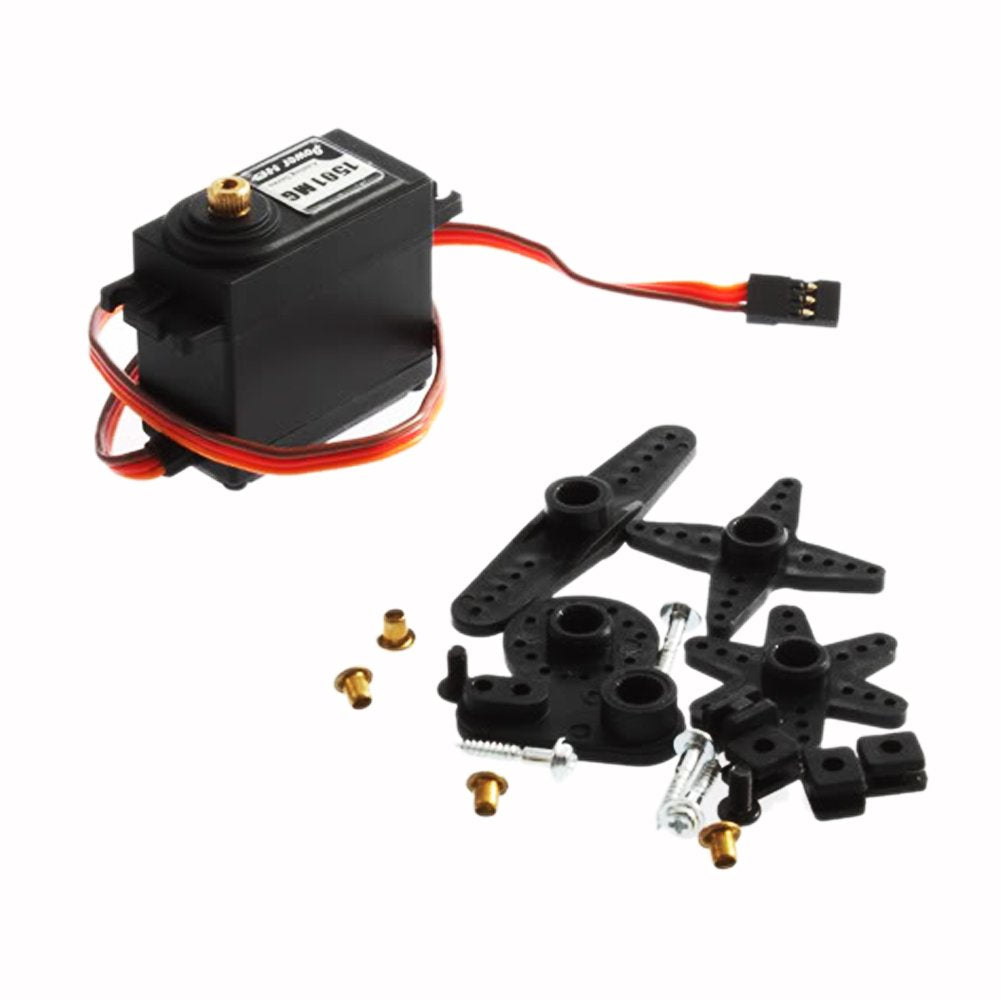

HD 1501MG Digital Servo Motor with Metal Gear

K-TECHNICS
Only 2 left
KSh2,500.00

Secure checkout

Friendly support

Hassle-free returns

Technical Specifications:

  • Model: HD-1501MG
  • Servo Type: Digital Servo
  • Gear Material: Metal
  • Control Type: PWM Signal
  • Operating Voltage: 4.8V–6.6V DC
  • Dead Band Width: Approx. 3µs
  • Rotation Angle: Approx. 180° (depending on controller settings)
  • Bearing Type: Dual Ball Bearing
  • Motor Type: Coreless DC Motor
  • Connector: Standard JR/Futaba compatible 3-pin connector
  • Dimensions: Approx. 40.7 × 20.5 × 39.5 mm
  • Weight: Approx. 60g

Applications:

  • RC cars, boats, and aircraft
  • Robot arms
  • Humanoid and walking robots
  • Pan-tilt camera systems
  • Arduino and microcontroller projects
  • Industrial automation prototypes
  • Mechanical control systems
  • DIY robotics projects

Package Includes:

  • 1 × HD 1501MG Digital Metal Gear Servo Motor
  • 1 × Servo horn/accessory set

Note: Use an appropriate servo power supply capable of providing sufficient current, especially when operating under heavy loads.
