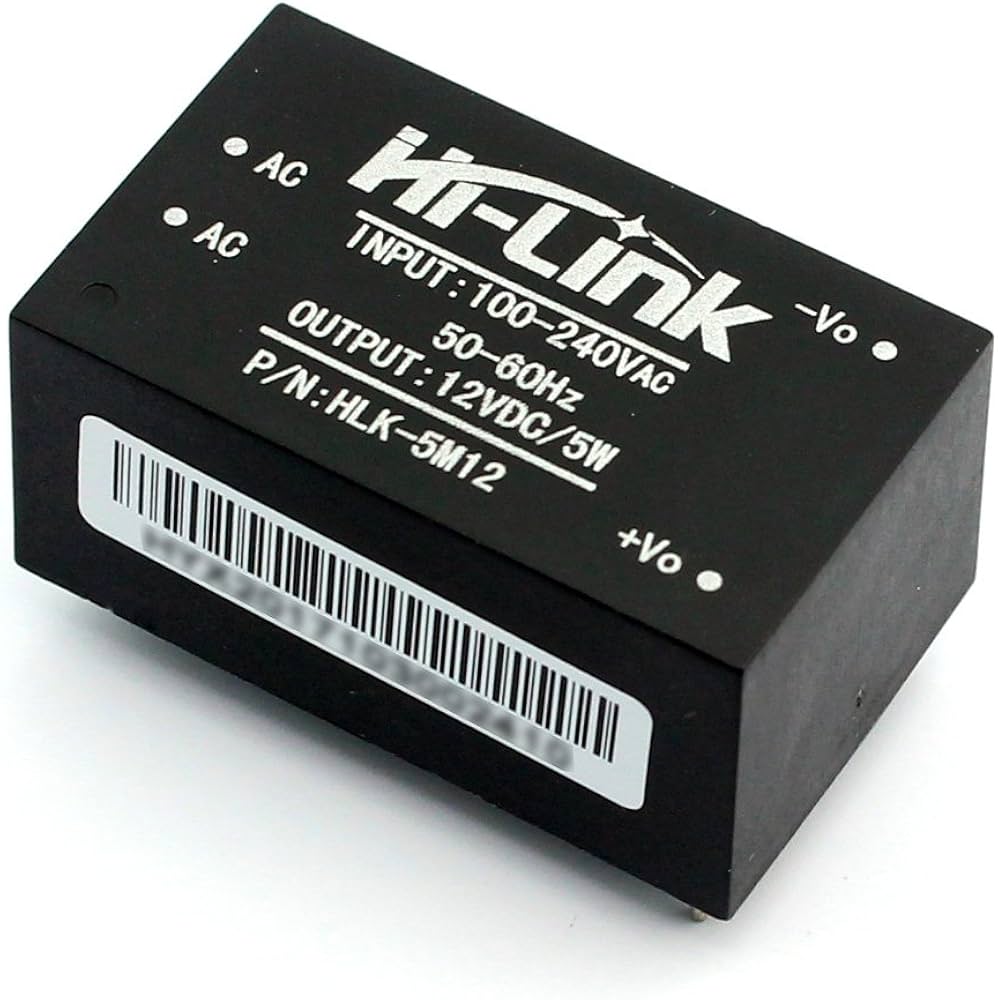

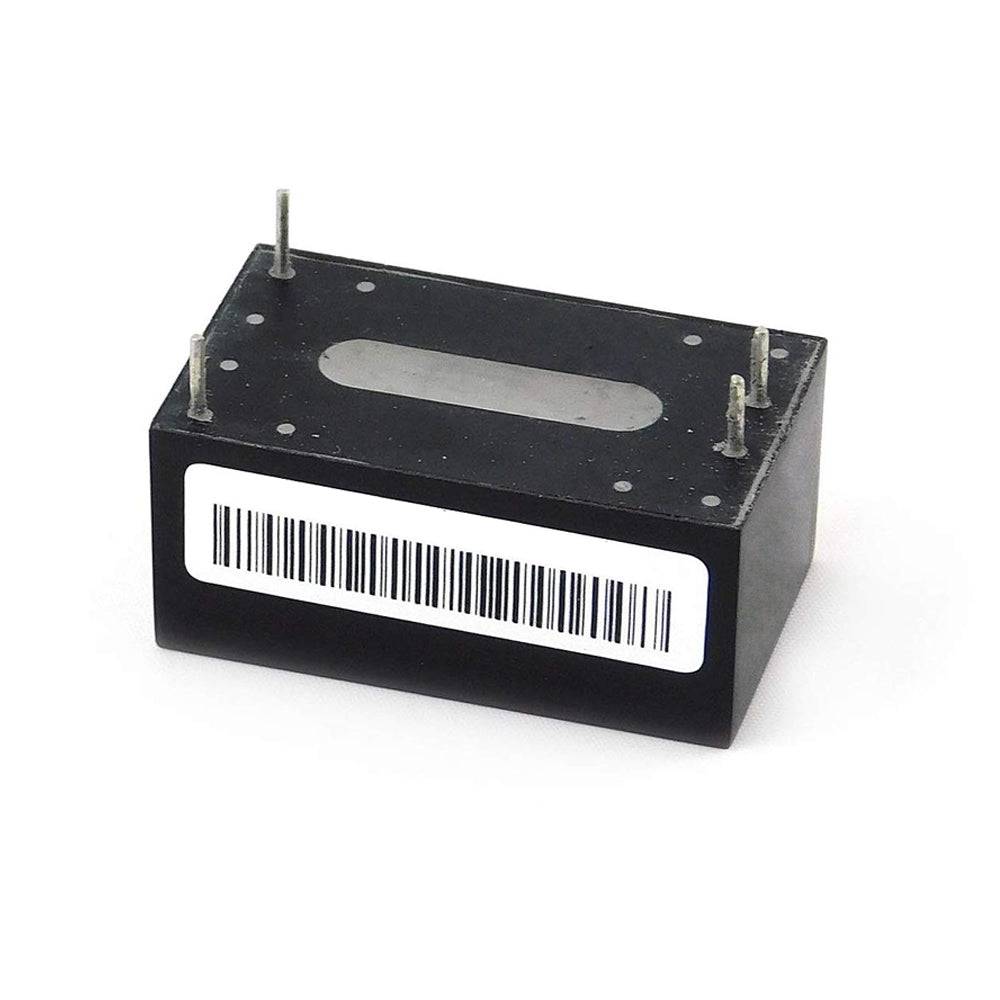

HI-LINK HLK-5M12 5W AC-DC Power Supply Module (12V - PCB Mount)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

When your custom electronics project or industrial control board requires a dedicated 12-Volt power rail such as for driving heavy electromagnetic relays, 12-Volt LED indicators, or industrial sensors the HI-LINK HLK-5M12 provides a professional, plug-and-play solution. Instead of relying on a bulky external power adapter and a barrel jack, this miniature module solders directly onto your custom PCB. It takes standard, fluctuating household or industrial AC mains power and converts it into a highly regulated 12-Volt DC output, providing up to 5 Watts of continuous power in an incredibly small footprint.

Renowned for its safety and reliability in commercial applications, the HLK-5M12 is fully encapsulated in a flame-retardant plastic casing and potted with a thermally conductive epoxy. This completely seals the sensitive internal switching circuitry away from dust, moisture, and intense physical vibration. It meets strict global safety and energy efficiency standards, featuring an ultra-low standby power consumption that makes it ideal for devices that remain plugged into the wall 24/7.

Key Features & Functional Advantages

  • Direct AC to DC Conversion: Readily accepts universal AC mains voltages (100V to 240V AC), allowing your device to be plugged directly into the wall anywhere in the world without a step-down transformer.

  • PCB Mountable: Features standard through-hole pins designed to be soldered directly onto your custom circuit board, drastically reducing the physical size of your final product.

  • Fully Encapsulated: The potted interior completely isolates the internal electronics, providing excellent heat dissipation while rendering the module highly resilient in harsh, dusty, or humid environments.

  • Low Standby Power: Highly energy efficient, drawing less than 0.1 Watts when your device is in sleep or standby mode.

  • Comprehensive Protection: Engineered with built-in safeguards against output short circuits, over-current draws, and internal overheating, ensuring both the power supply and your downstream circuit remain safe.

Perfect For

  • Smart Home Relays: Providing the necessary 12-Volt power to actuate heavy-duty relays in custom Wi-Fi smart switches and home automation hubs.

  • Industrial Control Boards: The ideal internal power supply for factory automation sensors, motor controllers, and customized PLC (Programmable Logic Controller) modules.

  • Custom Enclosures: Eliminating the need for external "wall wart" power adapters, allowing you to design clean, self-contained devices with a single AC power cord.

  • IoT Gateways: Powering standard 12-Volt networking or communication equipment in remote, continuously operating sensor nodes.

Technical Specifications

  • Device Type: AC to DC Power Supply Module

  • Output Voltage: 12.0 Volts DC (Fixed)

  • Maximum Output Power: 5 Watts

  • Maximum Output Current: ~416 milliamps

  • Input Voltage Range: 100 to 240 Volts AC (Universal Mains)

  • No-Load Power Consumption: < 0.1 Watts

  • Operating Temperature Range: -20 to +60 degrees Celsius

  • Dimensions: 38mm x 23mm x 18mm

  • Mounting Style: PCB Through-Hole (4-Pin)
