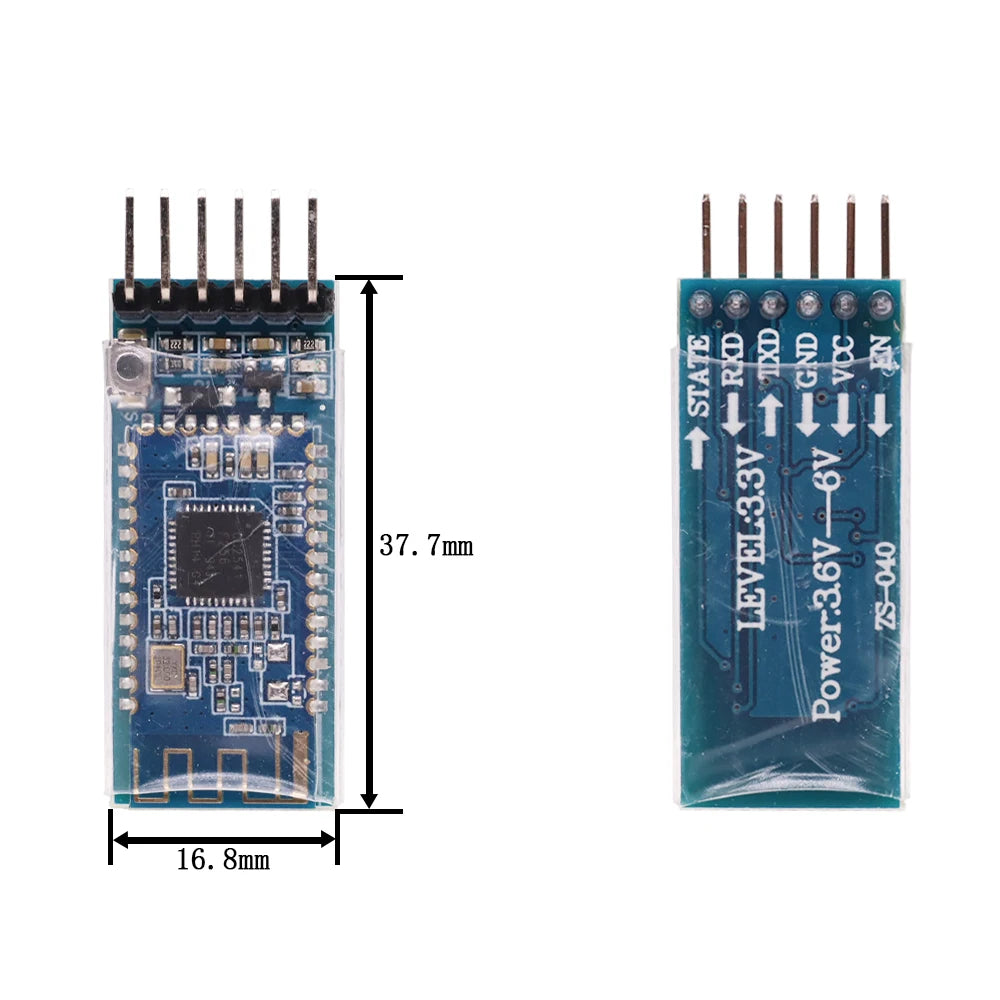

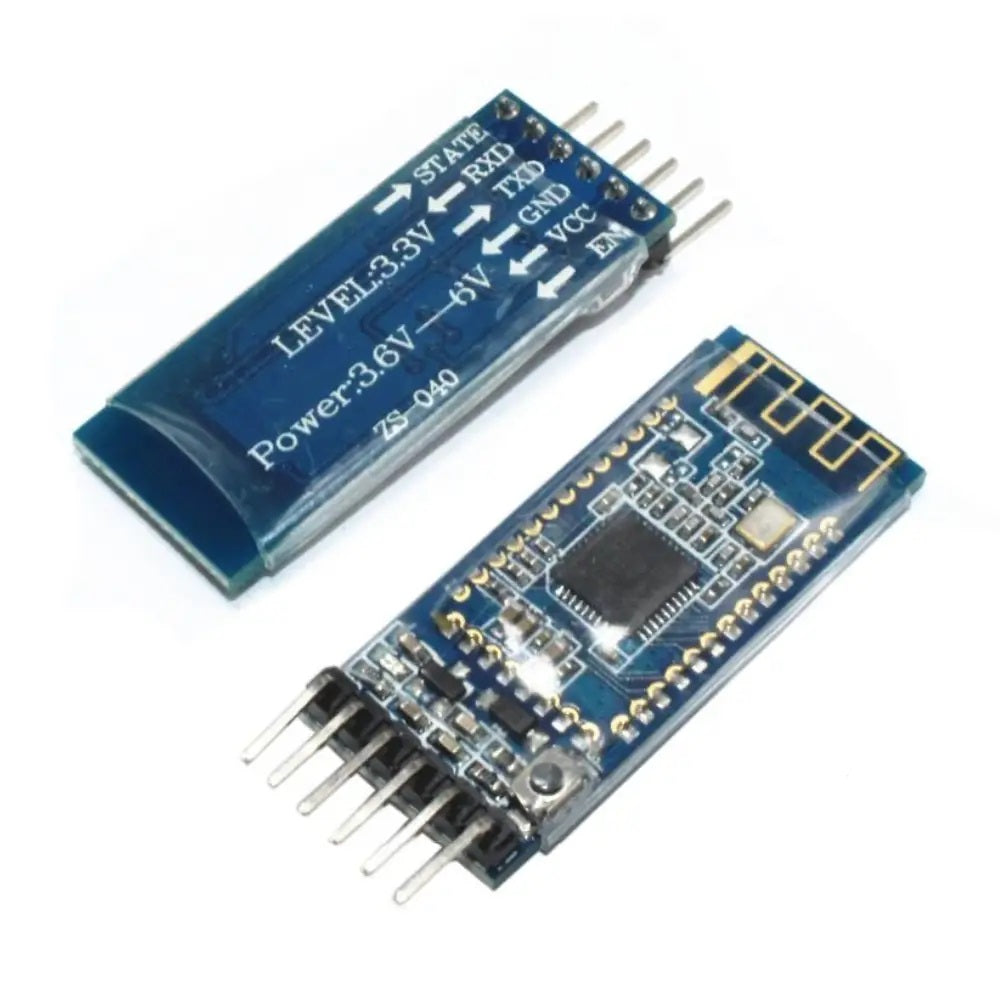

HM10 HM-10 Bluetooth BLE 4.0 Module

K-TECHNICS
In stock
KSh950.00

Secure checkout

Friendly support

Hassle-free returns

Add reliable Bluetooth Low Energy (BLE) connectivity to your electronics, IoT, robotics, and STEM projects with the HM-10 Bluetooth 4.0 Module. Built around the Texas Instruments CC2541 chipset, the HM-10 provides low-power wireless communication between microcontrollers and BLE-enabled devices such as smartphones, tablets, and computers. It communicates through a simple UART serial interface, making integration with Arduino, STM32, ESP32, Raspberry Pi, and other development platforms quick and easy.

Unlike classic Bluetooth modules such as HC-05 and HC-06, the HM-10 uses Bluetooth Low Energy (BLE 4.0), offering lower power consumption and excellent compatibility with modern Android and iOS devices. The module supports both Master and Slave modes and can be fully configured using AT commands.

Key Features

  • Bluetooth 4.0 Low Energy (BLE) wireless communication
  • Based on TI CC2541 Bluetooth SoC
  • UART serial interface for easy integration
  • Supports both Master and Slave modes
  • Configurable using AT commands
  • Compatible with Android and iOS devices
  • Low power consumption for battery-powered projects
  • Built-in PCB antenna for stable wireless performance
  • Ideal for IoT, home automation, robotics, and wireless sensor networks

Technical Specifications

  • Bluetooth Version: BLE 4.0
  • Chipset: TI CC2541
  • Operating Frequency: 2.4 GHz ISM Band
  • Communication Interface: UART (TX/RX)
  • Default Baud Rate: 9600 bps
  • Supply Voltage: 3.3V (many breakout boards include onboard regulation for 5V supply)
  • Operating Current: ~8.5–9 mA active mode
  • Sleep Current: As low as 50–600 µA
  • Transmission Power: Up to 4 dBm
  • Wireless Range: Up to 30 m indoors (varies by environment)
  • Configuration Method: AT Commands

Applications

  • IoT and smart home projects
  • Wireless sensor monitoring
  • Mobile app-controlled devices
  • Robotics and automation systems
  • Data logging and telemetry
  • Wearable electronics
  • Bluetooth-enabled STEM and educational projects

Package Includes

  • 1 × HM-10 Bluetooth BLE 4.0 Module

Note: The HM-10 uses Bluetooth Low Energy (BLE) and is not directly compatible with Bluetooth Classic devices such as HC-05/HC-06 modules.
