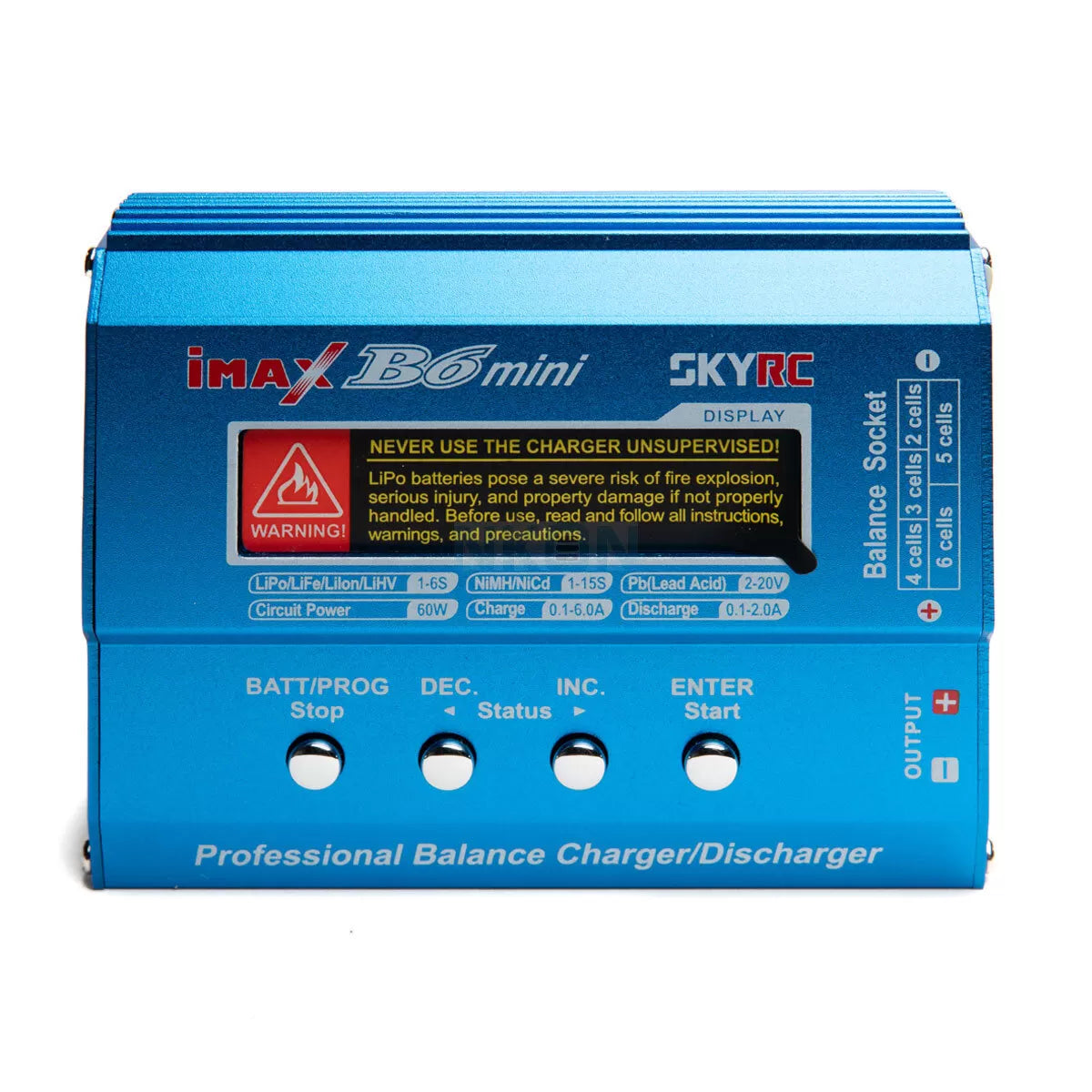

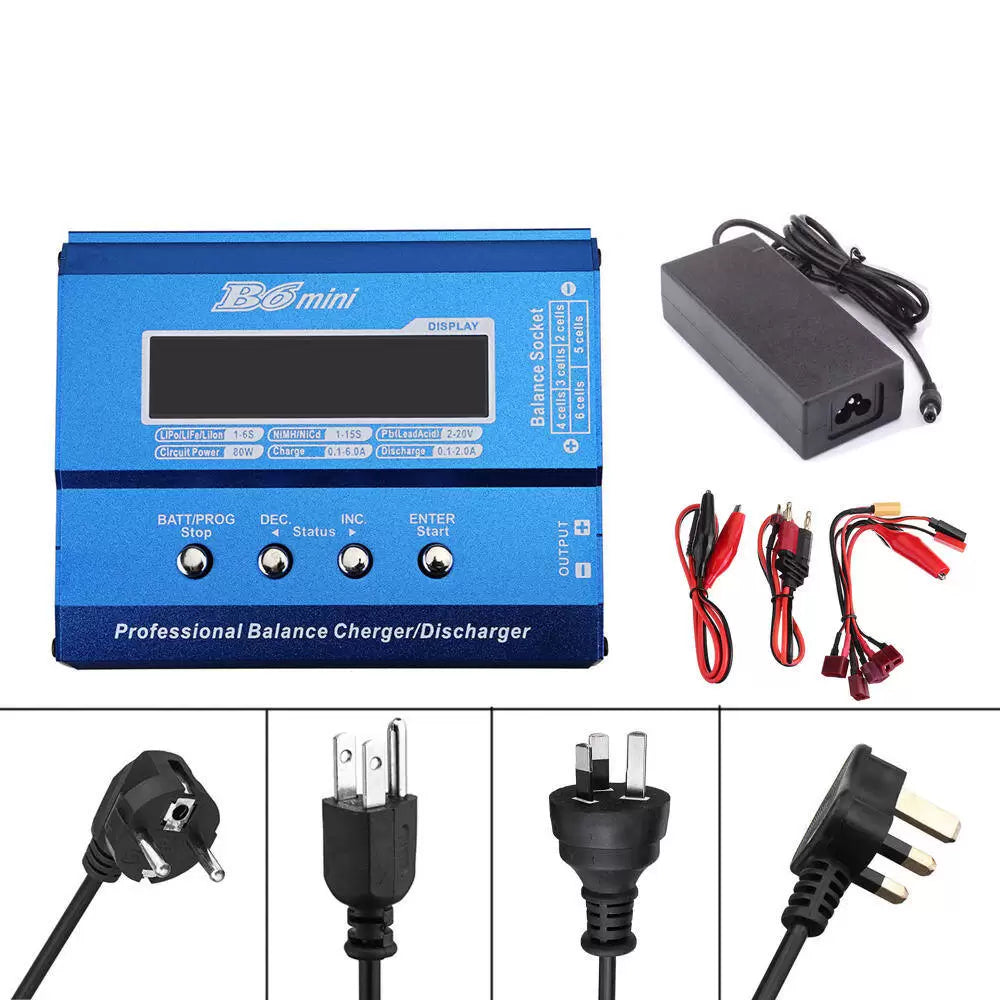

iMAX B6 Mini 60W Professional Balance Charger & Discharger (1-6S)

The iMAX B6 Mini is the highly anticipated, upgraded successor to the legendary B6 balance charger. While physically significantly smaller than the original, the B6 Mini packs a substantially larger punch, boasting an upgraded 60-watt charging circuit and a maximum charge rate of 6.0 Amps. Designed as a universal charging station, this microprocessor-controlled smart charger is capable of safely managing almost every battery chemistry on the market, including LiPo, Li-ion, LiFe, LiHV, NiMH, NiCd, and standard Lead-Acid (Pb) batteries.

Beyond simple charging, the B6 Mini serves as a comprehensive battery management tool for serious builders and hobbyists. It features advanced terminal voltage control, allowing users to fine-tune the exact end voltage of their lithium cells. Furthermore, it includes a built-in battery resistance meter to check the health of individual cells, and it supports direct PC connectivity. By connecting the charger to a computer via USB, you can use dedicated software to monitor pack voltage, cell voltage, and other data through real-time graphs during the charging process.

Key Features & Functional Advantages:

• Universal Chemistry Support: A true all-in-one workstation capable of charging, discharging, and cycling everything from 1S micro-drone LiPos to massive 15-cell NiMH packs and 20V car batteries.

• Internal Resistance Meter: Instantly diagnose the health of your lithium batteries. The charger can display the internal resistance of each individual cell, helping you identify failing batteries before they cause a power loss in the field.

• PC Connectivity & App Control: Connect via micro-USB to your computer to monitor charge curves, or add an optional Wi-Fi module to control and monitor the charger directly from your smartphone.

• Terminal Voltage Control (TVC): Gives advanced users the ability to manually adjust the final charge voltage threshold, which is critical for specialized applications or squeezing the absolute maximum flight time out of high-voltage (LiHV) racing packs.

• Maximum Safety Protections: Features an array of active safety mechanisms including automatic charging current limits, capacity limits, temperature thresholds (requires optional temp probe), and processing time limits to prevent catastrophic battery failures.

Perfect For:

• FPV Drone Pilots & RC Enthusiasts: The absolute gold standard for safely balance-charging high-discharge 3S, 4S, and 6S LiPo racing packs.

• Custom Battery Builders: Essential for testing, balancing, and cycling custom-built 18650 lithium-ion packs for e-bikes or portable power stations.

• Airsoft Competitors: Easily manages both traditional NiMH nunchuck batteries and modern high-discharge LiPo stick packs with a single device.

• Electronics Workbenches: A versatile, reliable power and charging hub for any DIY maker space dealing with various rechargeable power sources.

Technical Specifications:

• Input Voltage: 11-18V DC (Requires an external AC-to-DC power supply or a 12V car battery)

• Maximum Charge Power: 60 Watts

• Maximum Discharge Power: 5 Watts

• Charge Current Range: 0.1A to 6.0A

• Discharge Current Range: 0.1A to 2.0A

• Supported Lithium Cells (LiPo/LiFe/LiIon/LiHV): 1 to 6 cells (1S - 6S)

• Supported NiMH/NiCd Cells: 1 to 15 cells

• Supported Pb (Lead-Acid) Battery Voltage: 2V to 20V

• Cooling System: Built-in automatic temperature-controlled cooling fan

• Dimensions: 102 mm x 84 mm x 29 mm

• Weight: ~233 grams
