ISD1820 Recording Module Voice Board with Mic

K-TECHNICS
Only 2 left
KSh400.00

Secure checkout

Friendly support

Hassle-free returns

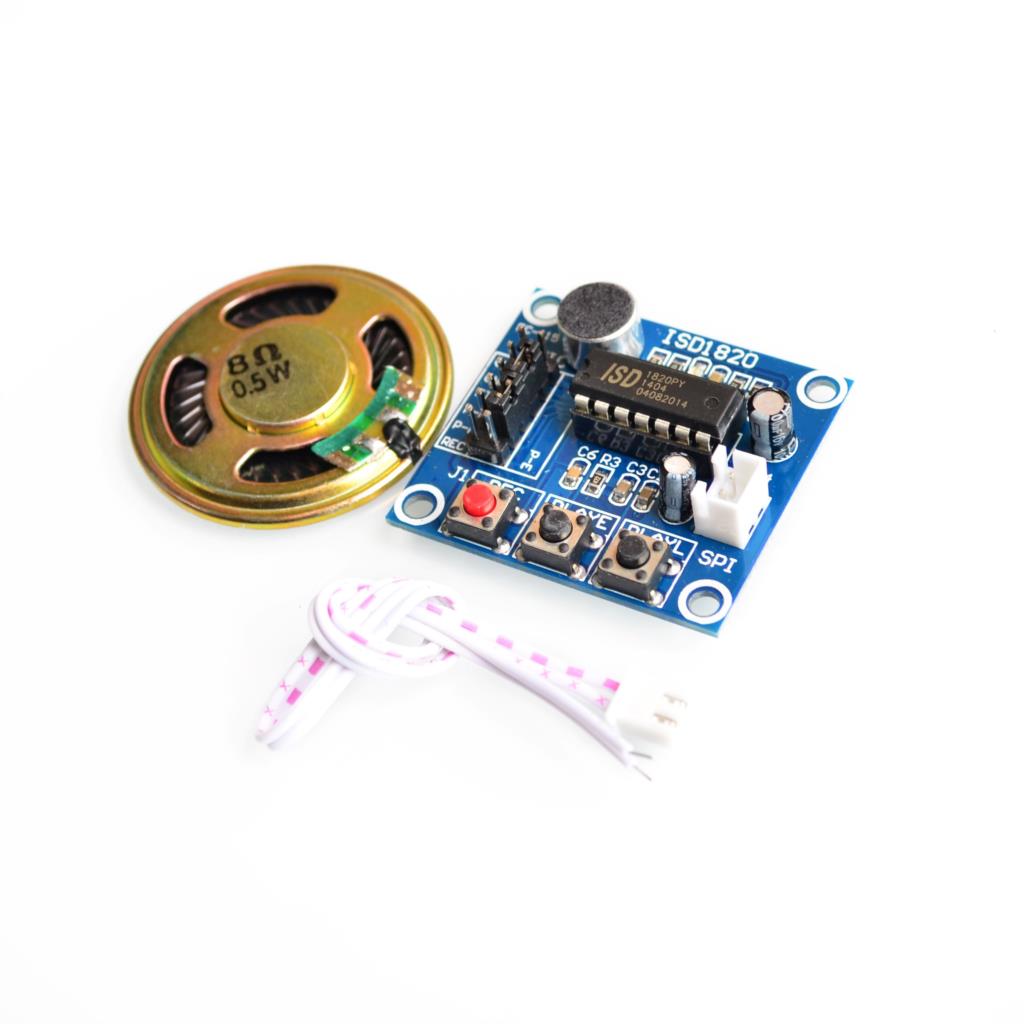

The ISD1820 Module is a compact electronic board used to record and play back short audio clips. It works as a standalone device or connects to microcontrollers.
Key Specifications
  • Voltage: DC 3V to 5V.
  • Recording Time: 10 seconds default.
  • Memory: Flash storage retains audio without power.
  • Audio Output: Powers an 8-Ohm, 0.5W speaker.
Board Controls
  • REC Button: Press and hold to record audio.
  • PLAYE Button: Press once to play the whole recording.
  • PLAYL Button: Plays audio only while held down.
  • RPL Jumper: Loops the recorded message continuously.
  • FT Jumper: Routes microphone input directly to the speaker.
Microcontroller Pins
  • VCC / GND: Power input lines.
  • REC Pin: High signal triggers remote recording.
  • PLAYE / PLAYL Pins: High signals trigger remote playback.
