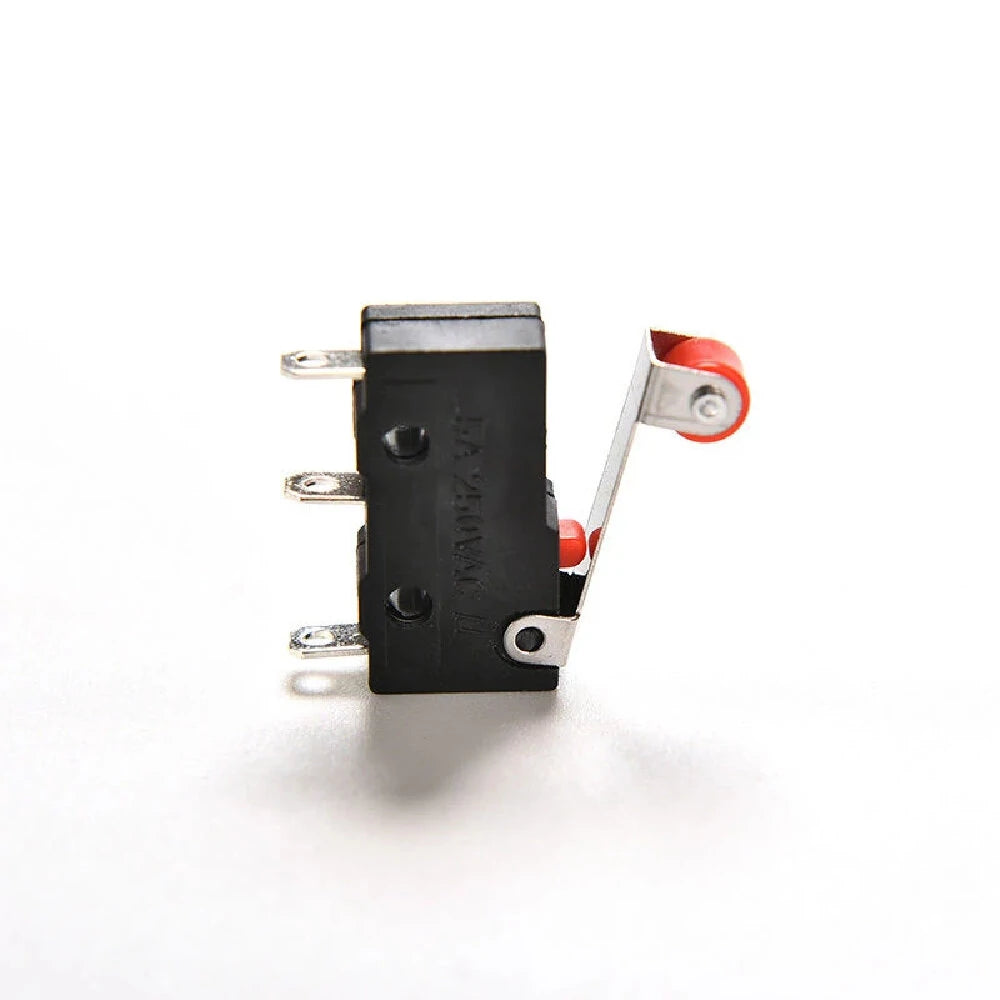

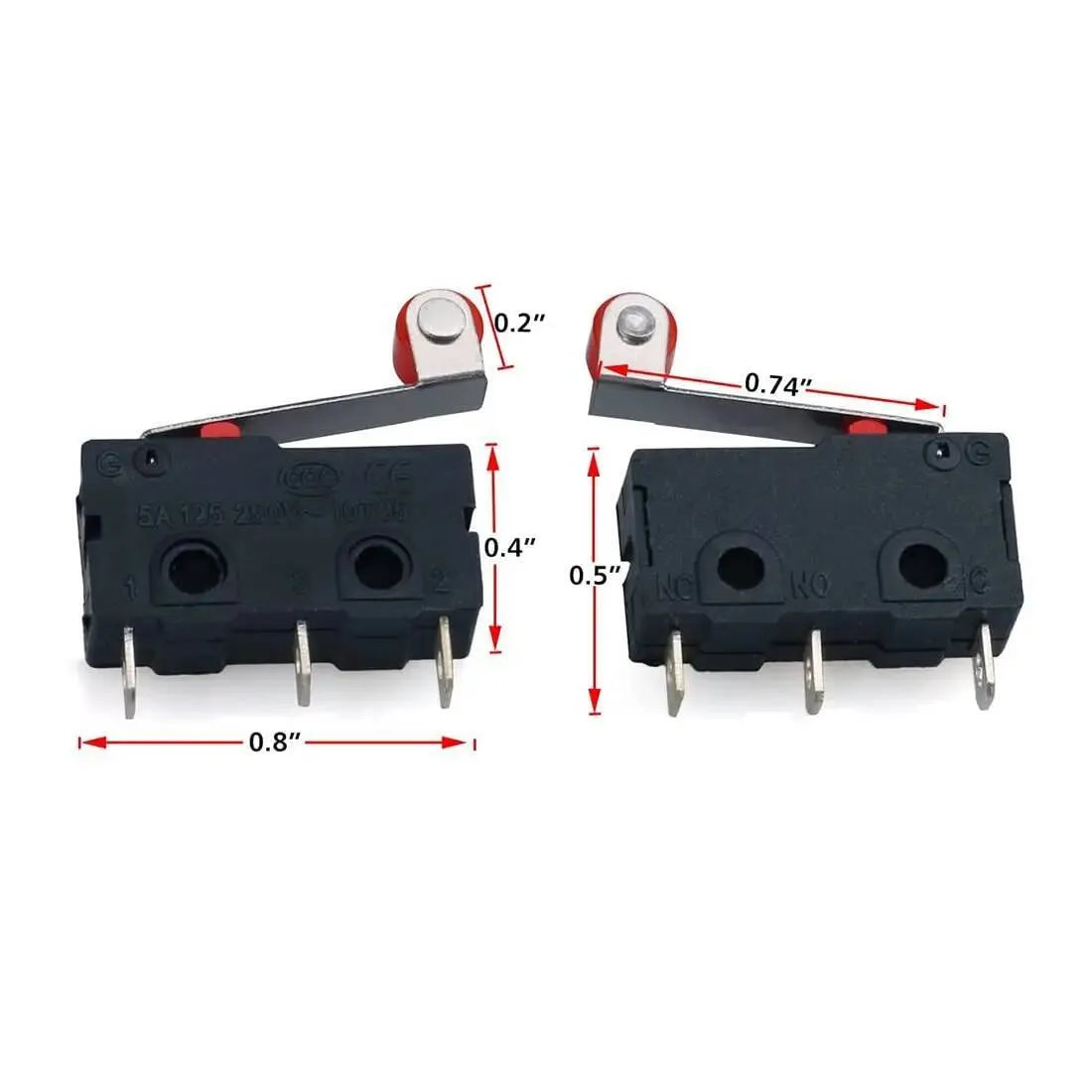

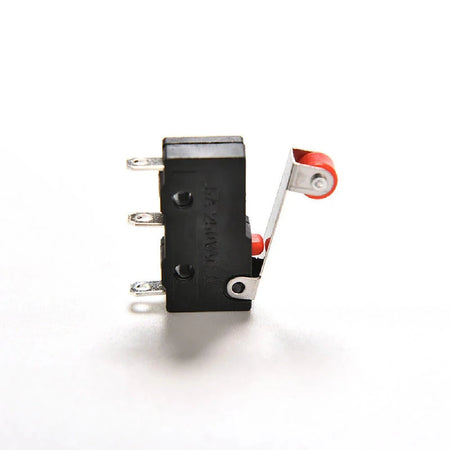

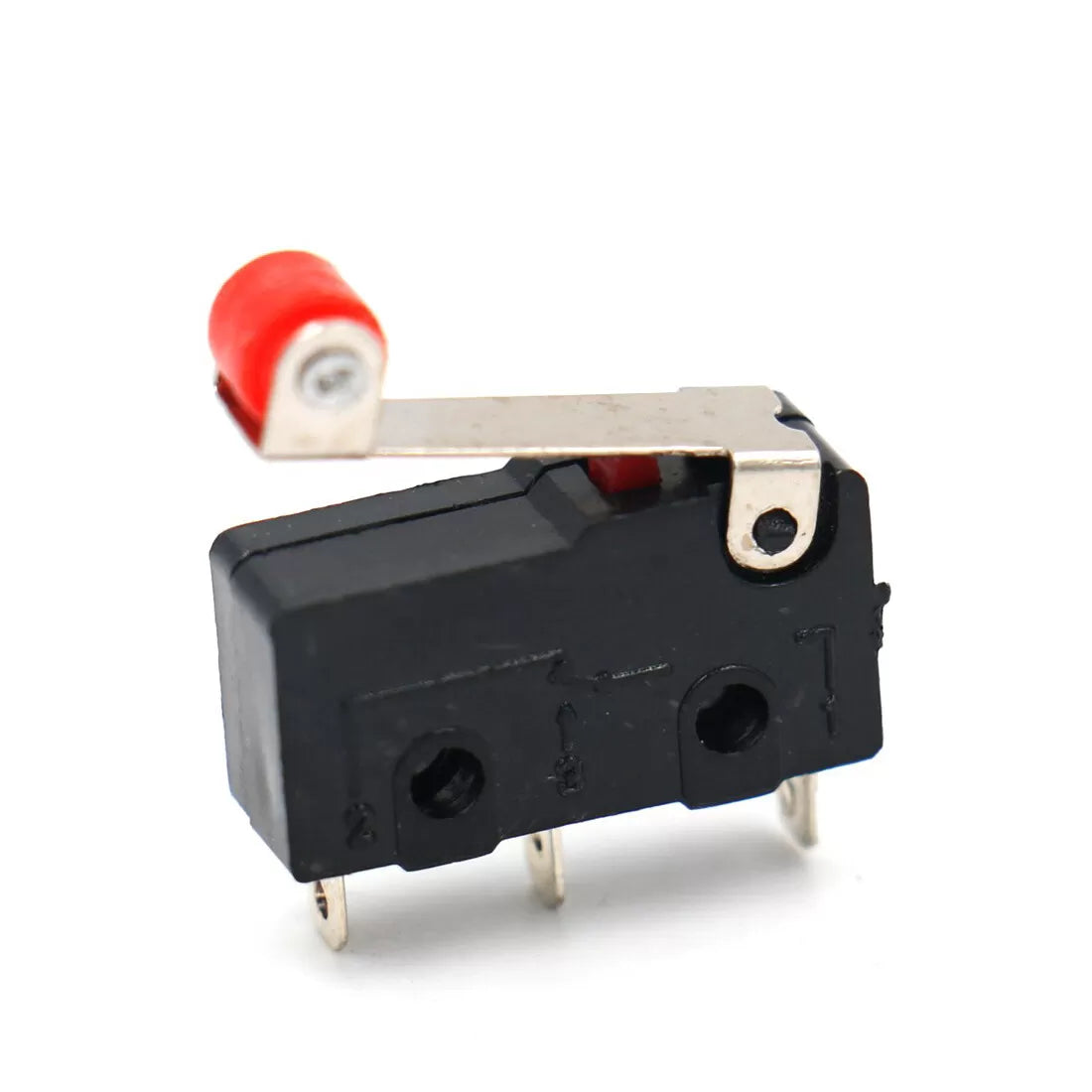

KW12-3 Limit switch

K-TECHNICS
Only 1 left
KSh100.00

Secure checkout

Friendly support

Hassle-free returns

Technical Specifications:

  • Model: KW12-3
  • Switch Type: Micro Limit Switch
  • Contact Configuration: SPDT (Single Pole Double Throw)
  • Terminals: 3 Pins (COM, NO, NC)
  • Rated Voltage: Up to 250V AC
  • Rated Current: Up to 5A
  • Operating Force: Low operating force
  • Actuator Type: Pin Plunger
  • Mounting Type: Screw Mount
  • Contact Material: Silver Alloy
  • Mechanical Life: Up to 1,000,000 operations
  • Electrical Life: Up to 100,000 operations
  • Operating Temperature: -25°C to +85°C

Pin Configuration:

  • COM – Common
  • NO – Normally Open
  • NC – Normally Closed
