KY-020 Tilt Switch Module

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

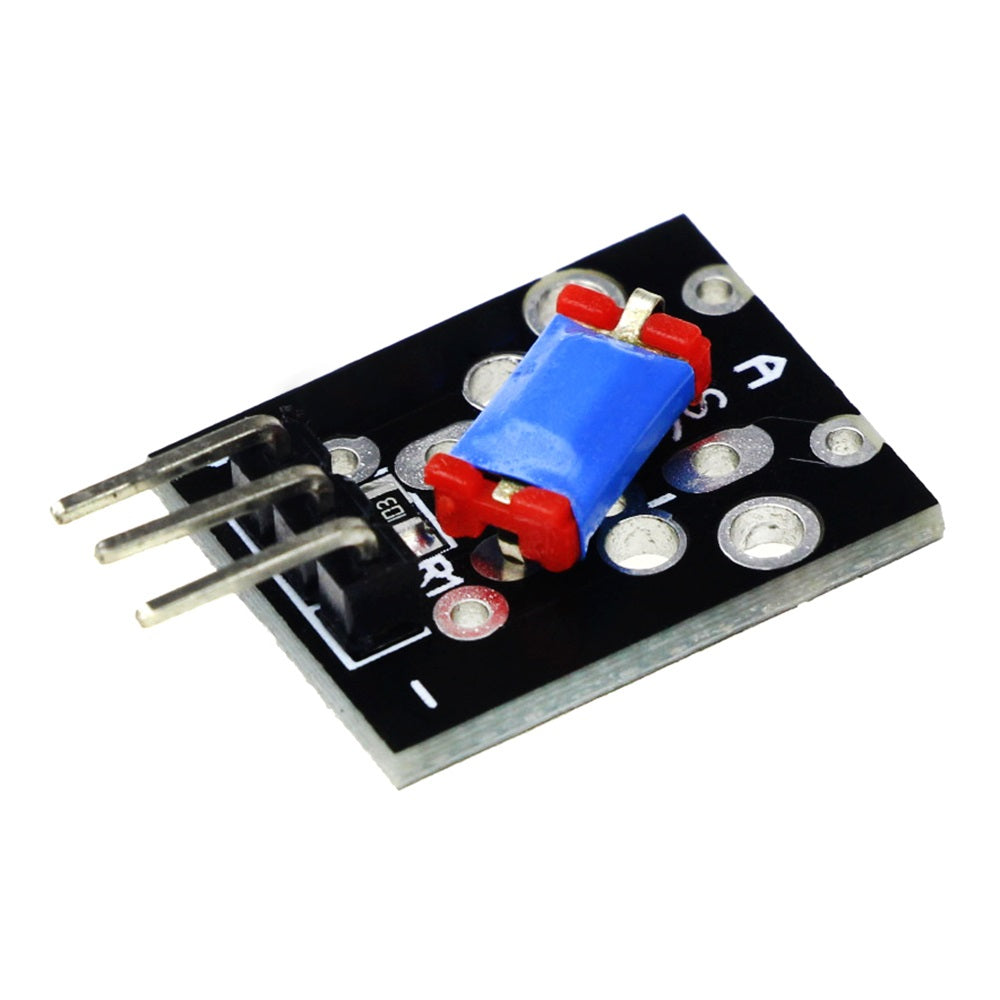

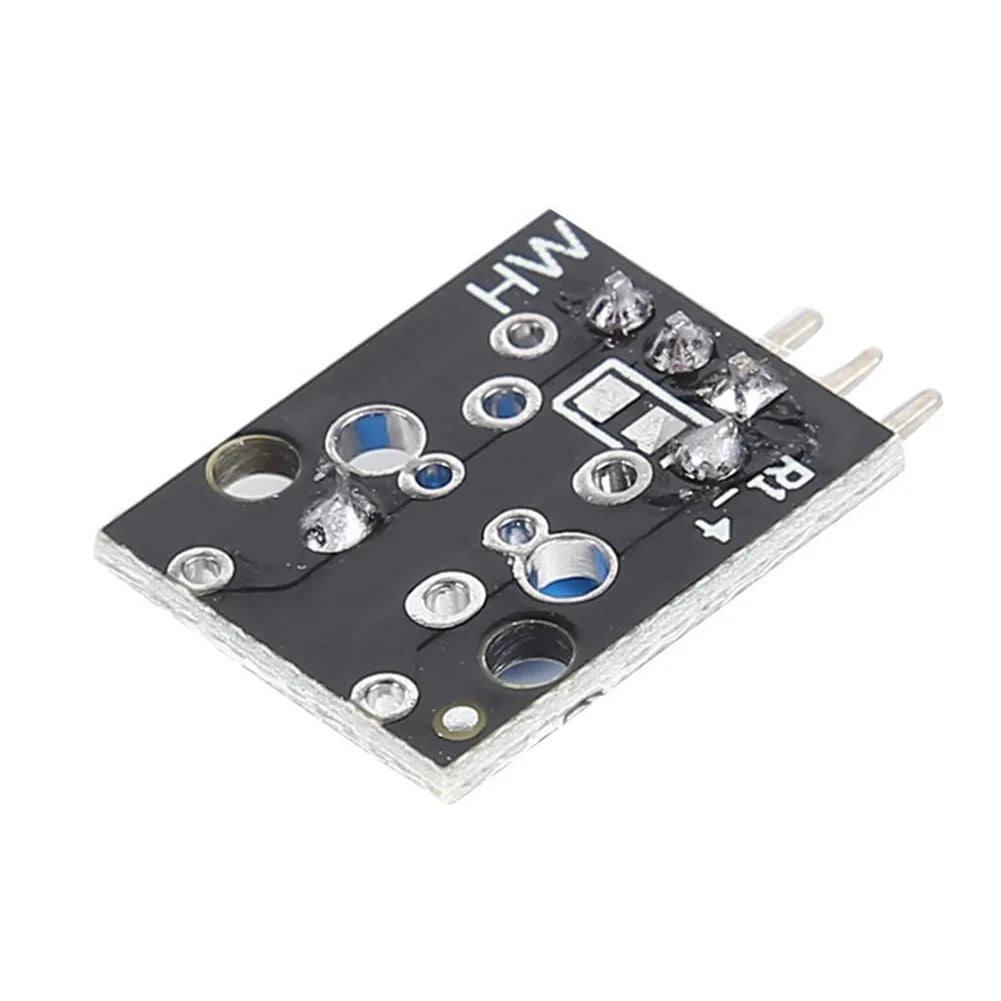

The KY-020 Tilt Switch Module is a gravity-operated digital sensor used to detect changes in orientation, motion, or tilting. It acts as a basic binary on/off switch rather than a precision sensor that calculates exact angles.
Core Mechanism
Inside the small capsule on the board sits a tiny metallic ball. When you tilt the module past a certain angle, gravity causes the ball to roll and bridge two electrical contacts, closing the circuit. When tilted back, the ball rolls away, opening the circuit again. It serves as a modern, non-toxic, and eco-friendly alternative to older mercury-based tilt switches.
Technical Specifications
  • Operating Voltage: 3.3V to 5V
  • Output Type: Digital (HIGH or LOW binary signal)
  • On-board Resistor: 10 kΩ pull-up/pull-down resistor to protect the circuit and stabilize the output signal.
  • Dimensions: Approximately 19mm x 15mm
Pinout Configuration
The module breaks out into three standard male header pins:
Pin Label Pin Function Description
S Signal Connects to a digital input pin on your microcontroller.
[Middle Pin] Power (VCC) Connects to the 3.3V or 5V power rail.
- Ground (GND) Connects to the ground pin of your power supply/microcontroller.
