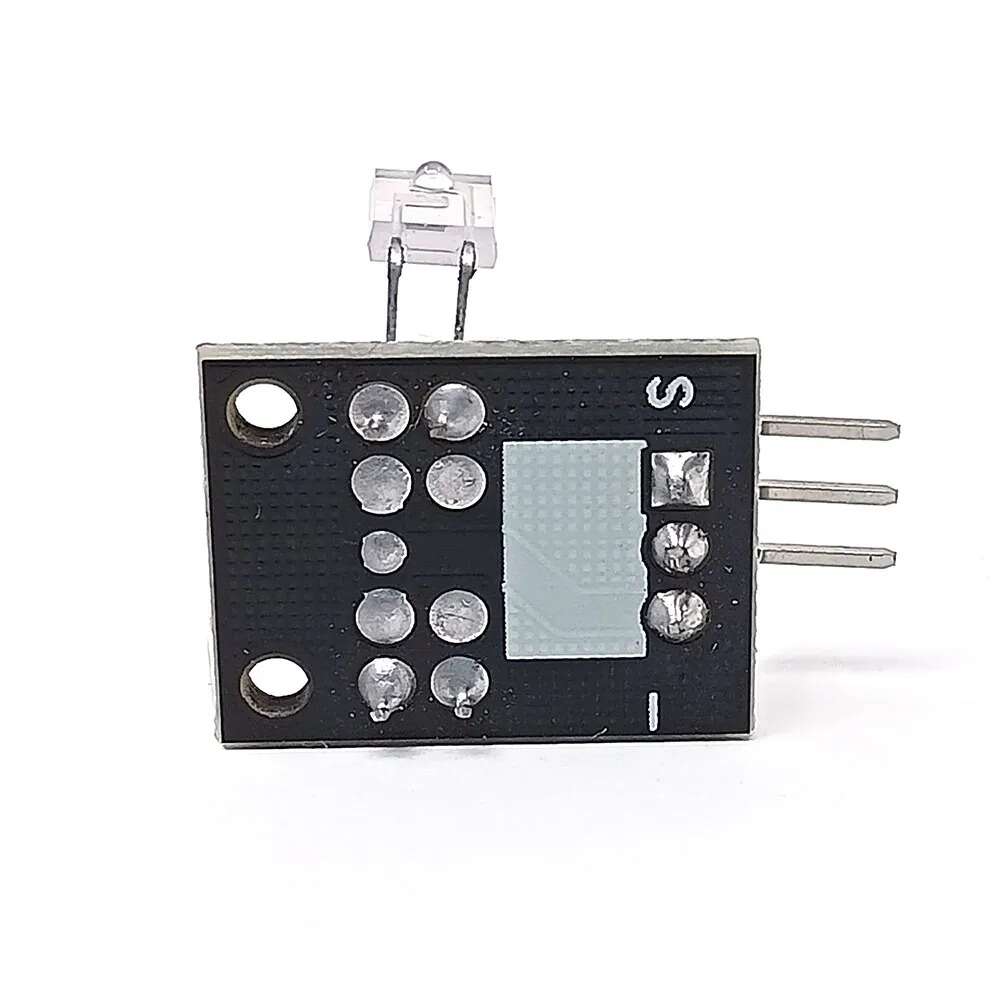

KY-039 Finger Detection Heartbeat Sensor Module

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

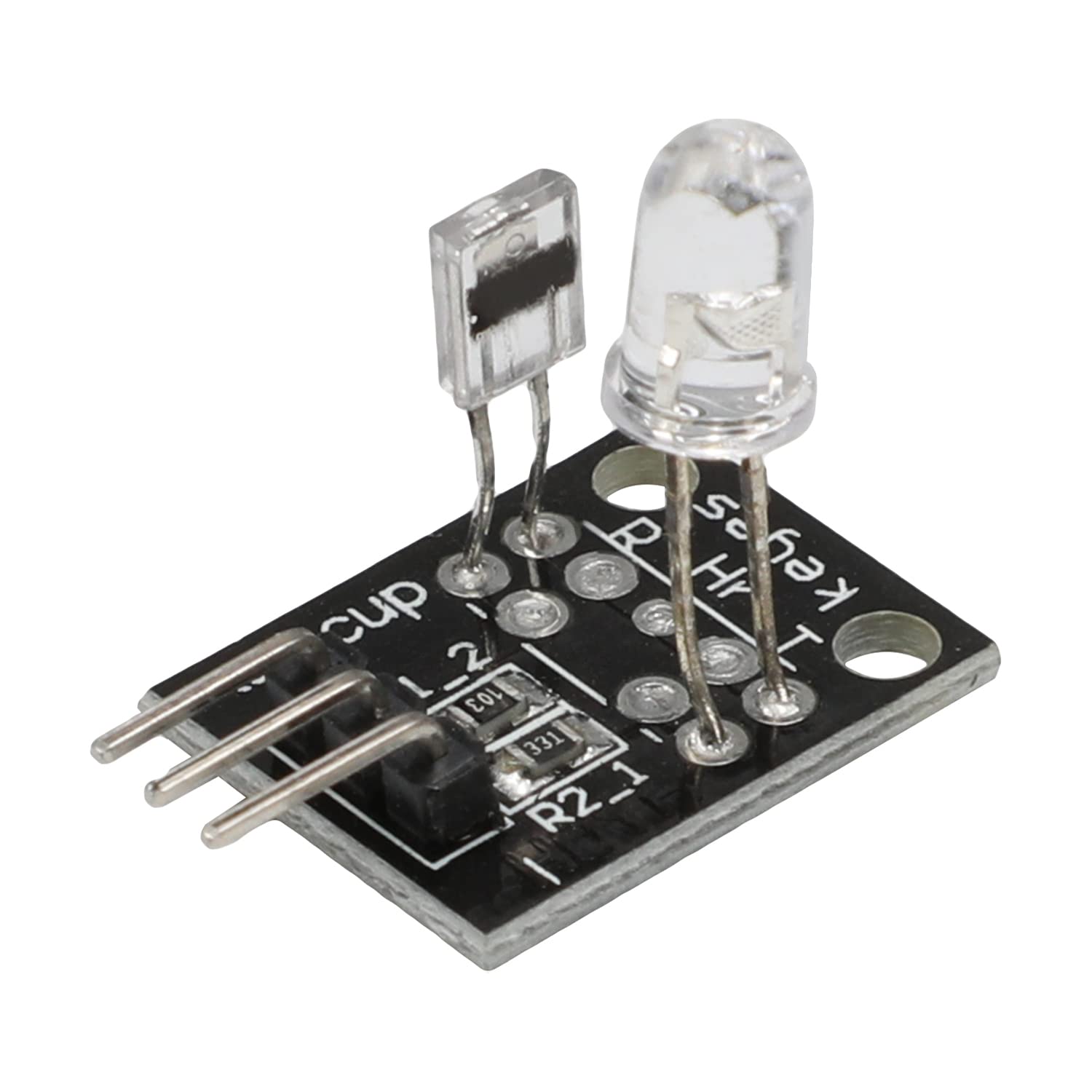

The KY-039 Finger Detection Heartbeat Sensor Module is an optical biometric component for DIY electronics. It uses an infrared (IR) LED and a phototransistor to detect changes in blood volume through a finger.
Core Specifications
  • Voltage: 3.3V to 5V DC
  • Sensor Type: Optical infrared transmission
  • Output: Raw analog signal
  • Pins: S (Signal), + (Power), - (Ground)
Operating Principle
  • The IR LED shines light through the finger.
  • Heartbeats cause blood vessels to expand and contract.
  • This volume change alters the amount of light passing through.
  • The phototransistor converts the light fluctuations into a fluctuating voltage signal.
Practical Tips
  • Block Light: Cover the sensor to stop room lights from corrupting the data.
  • Touch Lightly: Pressing too hard blocks blood flow and kills the signal.
  • Code Filtering: The sensor outputs raw waves, so software smoothing is required to calculate actual BPM.
