KY017 KY-017 Mercury Tilt Switch Module

K-TECHNICS
In stock
KSh150.00

Secure checkout

Friendly support

Hassle-free returns

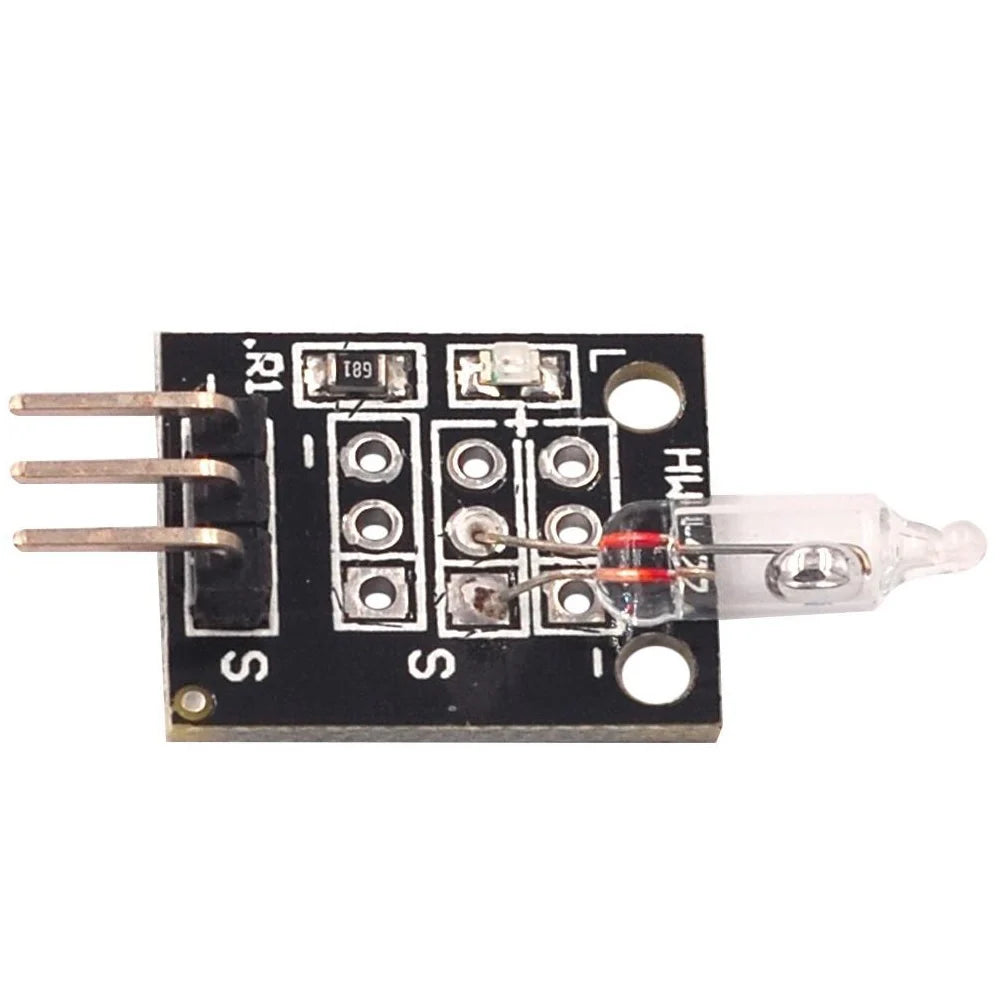

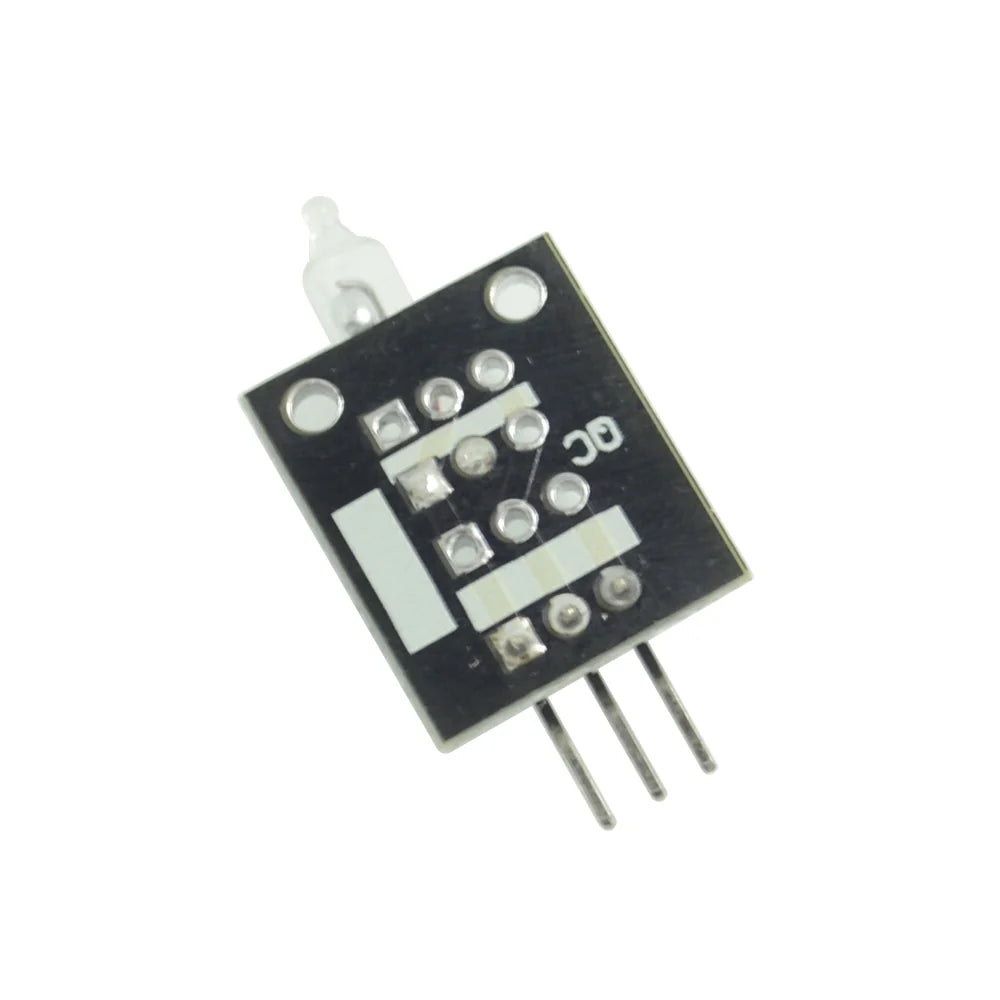

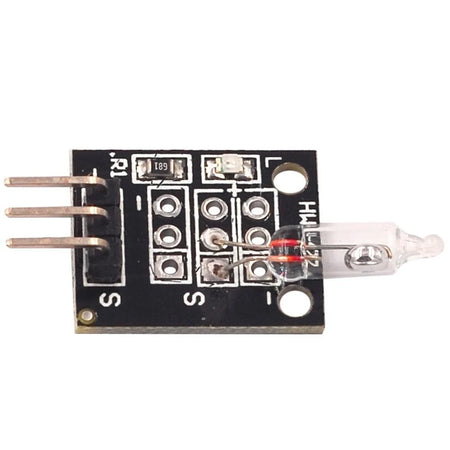

The KY-017 Mercury Tilt Switch Module is a digital sensor that detects orientation and tilt using a liquid mercury droplet inside a sealed glass tube.

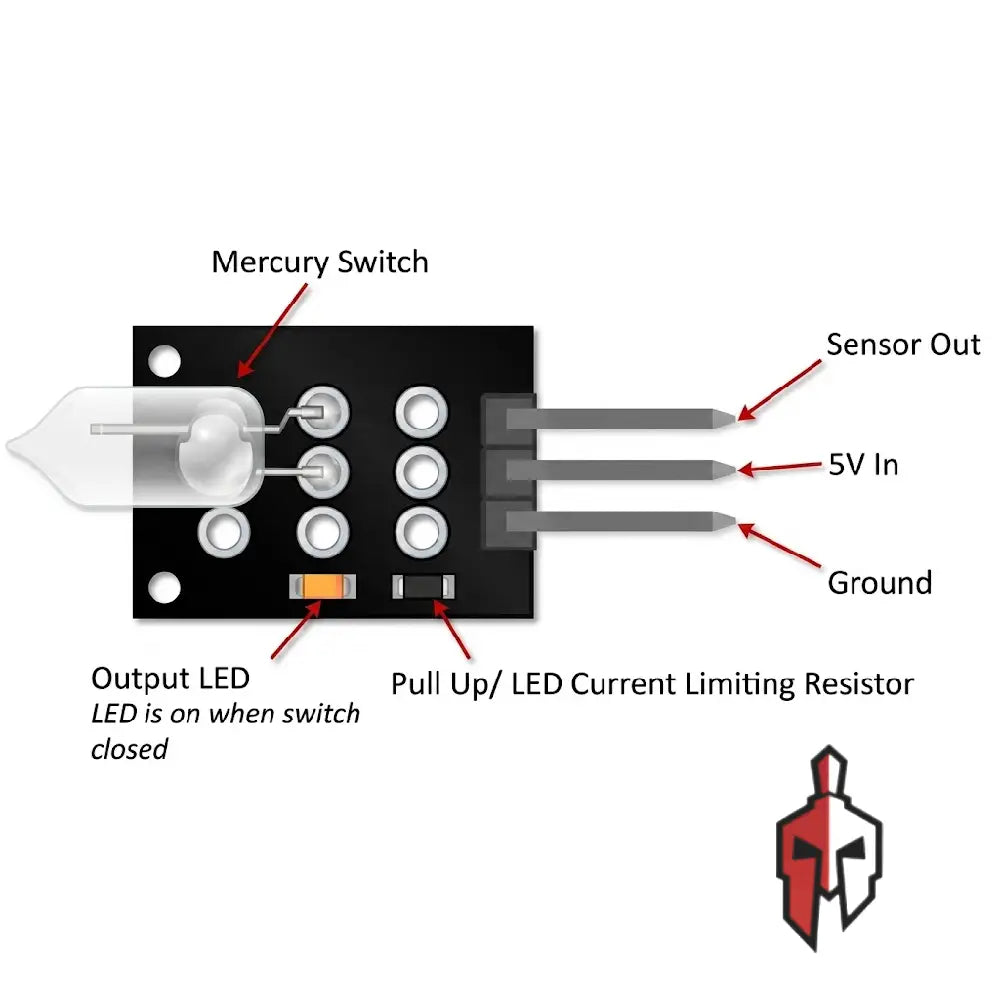

Specifications & Pins
  • Voltage: 3.3V to 5V DC
  • Output: Digital (HIGH/LOW)
  • Pin (-): Ground (GND)
  • Pin (Middle): Power (VCC)
  • Pin (S): Digital Signal Out
How It Works
  • Horizontal: Mercury touches both internal pins. The circuit closes, sending a LOW signal.
  • Tilted: Mercury rolls away from the pins. The circuit opens, sending a HIGH signal.
