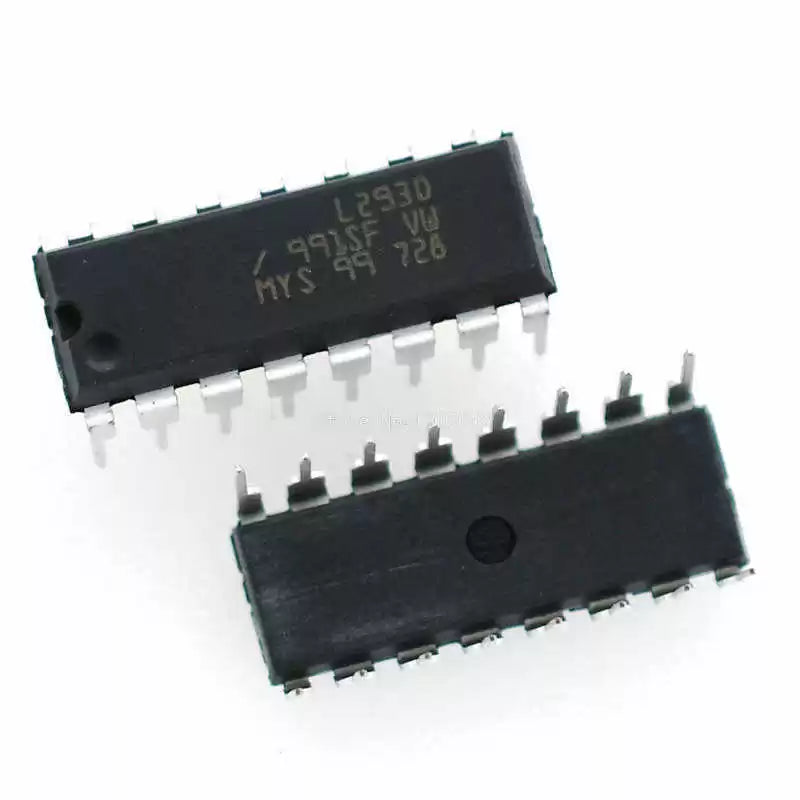

L293D (Quadruple Half-H Motor Driver IC - 16-Pin DIP Package)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

While the massive L298N is designed for heavy-duty, high-current applications, the L293D is the absolute standard for driving smaller motors directly from a solderless breadboard. This classic 16-pin integrated circuit is a quadruple high-current "half-H" driver. In practical terms, this means it contains enough internal switching logic to form two complete full H-bridges. With just one chip, your Arduino, ESP32, or standard logic gate circuit can independently control the speed and forward/reverse direction of two separate DC motors, or precisely drive a single bipolar stepper motor.

The most critical feature of this specific IC is denoted by the "D" at the end of the part number. The L293D includes integrated flyback (clamping) diodes built directly into the silicon. When an inductive load like a DC motor turns off, it generates a massive, reverse-voltage spike that can instantly fry a delicate microcontroller. The internal diodes of the L293D safely absorb these spikes, meaning you do not have to clutter your breadboard or custom PCB with external protective diodes. Housed in a standard 16-pin DIP package, it perfectly bridges the gap between low-voltage digital logic and the high-voltage, high-current physical world.

Key Features & Functional Advantages:

  • Built-in Flyback Diodes ("D" Version): Internally protects your delicate 3.3V and 5V microcontrollers from the destructive inductive kickback generated by spinning motors and clicking relays.

  • Dual Power Supplies: Features two completely separate power input pins. Pin 16 (VSS) powers the internal logic (typically 5V), while Pin 8 (VS) provides the "muscle" power for the motors, safely accepting anywhere from 4.5V up to 36V.

  • Breadboard Native (DIP-16): The standard 0.1-inch pin pitch allows for rapid prototyping on a breadboard or easy installation into a standard 16-pin IC socket on a permanent perfboard.

  • Solid Current Capacity: Capable of delivering a continuous 600mA per channel (with a peak of 1.2A for short bursts), making it perfectly sized for standard "TT" gear motors and small robotics.

  • Center Ground Heatsink: The four center pins (Pins 4, 5, 12, and 13) are all tied to Ground and physically connected to the chip's internal die, designed to safely conduct heat away from the silicon and into your PCB.

Perfect For:

  • DIY Smart Cars & Rovers: The absolute go-to silicon for driving the classic yellow "TT" gear motors found in 2-wheel-drive Arduino robot chassis kits.

  • Small Stepper Control: Easily interfaces with your microcontroller to drive small bipolar stepper motors (like those found in old CD-ROM drives) for micro-CNC and plotter projects.

  • Driving Relays & Solenoids: Highly effective as a heavy-duty buffer to trigger mechanical relays, solenoids, or bright LED strips that require more current than a standard GPIO pin can provide.

  • Educational Robotics: The standard introductory motor driver in STEM classrooms, teaching the fundamentals of PWM speed control and H-bridge logic.

Technical Specifications:

  • Driver Type: Quadruple Half-H (or Dual Full-H) Bridge

  • Logic Supply Voltage (Vss): 4.5V to 7V (Typically tied to 5V)

  • Motor Supply Voltage (Vs): 4.5V to 36V DC

  • Maximum Continuous Current: 600mA per channel (L293D version)

  • Peak Output Current: 1.2A per channel (Non-repetitive)

  • Logic Inputs: Standard TTL Compatible (High/Low)

  • Integrated Protection: Yes (Internal Flyback Diodes included in the "D" suffix version)

  • Package / Case: 16-DIP (0.300", 7.62mm width)

  • Mounting Type: Through-Hole (PTH)
