L298N Dual Full-Bridge Motor Driver IC (Multiwatt15 Package)

When your microcontroller needs to move heavy physical objects, it cannot supply the necessary current directly from its delicate GPIO pins. The L298N Motor Driver IC acts as the heavy-duty intermediary. This legendary piece of silicon is a high-voltage, high-current dual full-bridge (H-Bridge) driver designed to accept standard TTL logic signals from an Arduino, ESP32, or STM32, and translate them into the massive current required to drive inductive loads like relays, solenoids, DC motors, and bipolar stepper motors.

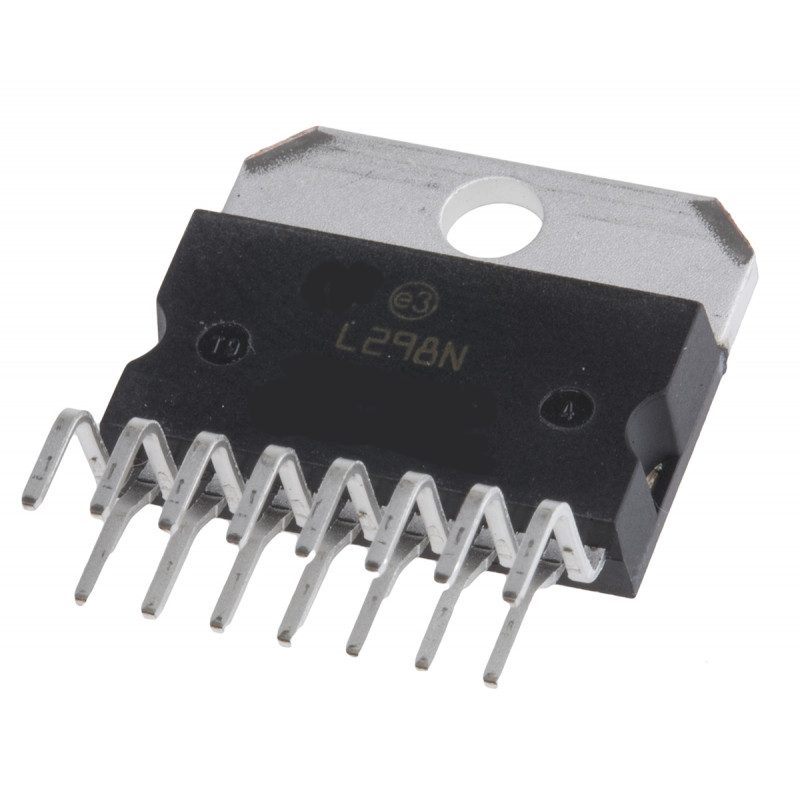

Housed in a distinct, staggered 15-pin Multiwatt package, the bare L298N IC is designed to be bolted directly to a metal heatsink. It is capable of driving up to 46V and delivering 2 Amps of continuous current per channel. Because it contains two complete H-bridges, a single chip can independently control the speed and direction of two separate DC motors, or precisely step a single bipolar stepper motor. While newer MOSFET-based drivers run cooler, the rugged BJT (Bipolar Junction Transistor) architecture of the L298N makes it virtually indestructible, keeping it relevant for DIY robotics, educational kits, and heavy-duty prototype repairs.

Key Features & Functional Advantages:

• Dual H-Bridge Architecture: Independently controls the forward, reverse, coast, and brake states of two DC motors simultaneously using basic high/low logic signals.

• High Voltage & Current Capacity: Capable of handling power supplies up to 46 Volts and sustaining a massive 2A continuous draw per channel (3A peak).

• TTL-Compatible Logic: The input pins natively accept standard 5V logic signals (and generally work with 3.3V logic systems), making it universally compatible with almost any modern microcontroller.

• Current Sensing Capable: Features dedicated pins for connecting external sense resistors, allowing your microcontroller to monitor the exact current being drawn by the motors to detect stalls or heavy loads.

• Rugged Multiwatt15 Package: Designed with a large, exposed metal tab at the rear, allowing for easy mounting to external aluminum heatsinks for heavy-duty thermal management.

Perfect For:

• Custom Motor Controller PCBs: The definitive silicon choice for designing your own integrated motor shields for 2-wheel drive autonomous rovers and combat robots.

• Stepper Motor Control: Easily drives standard NEMA 17 bipolar stepper motors for custom CNC mechanisms, automated sliders, and 3D printer prototypes.

• Driving Inductive Loads: Highly effective for switching large mechanical relays, high-power solenoids, and electromagnets without destroying your main processor.

• Legacy Hardware Repair: The standard drop-in replacement chip for fixing burned-out motor driver modules (like the ubiquitous red L298N breakout boards) or repairing older motorized toys.

Technical Specifications:

• Driver Type: Dual Full-Bridge (H-Bridge) BJT

• Logic Supply Voltage (Vss): 4.5V to 7V (Typically 5V)

• Motor Supply Voltage (Vs): Up to 46V DC

• Maximum Continuous Current: 2A per channel (4A total if channels are paralleled)

• Peak Output Current: 3A per channel (Non-repetitive)

• Logic Inputs: TTL Compatible (High/Low)

• Package / Case: Multiwatt-15 (15-pin staggered through-hole)

• Mounting Type: Through-Hole (PTH) with rear heatsink tab
