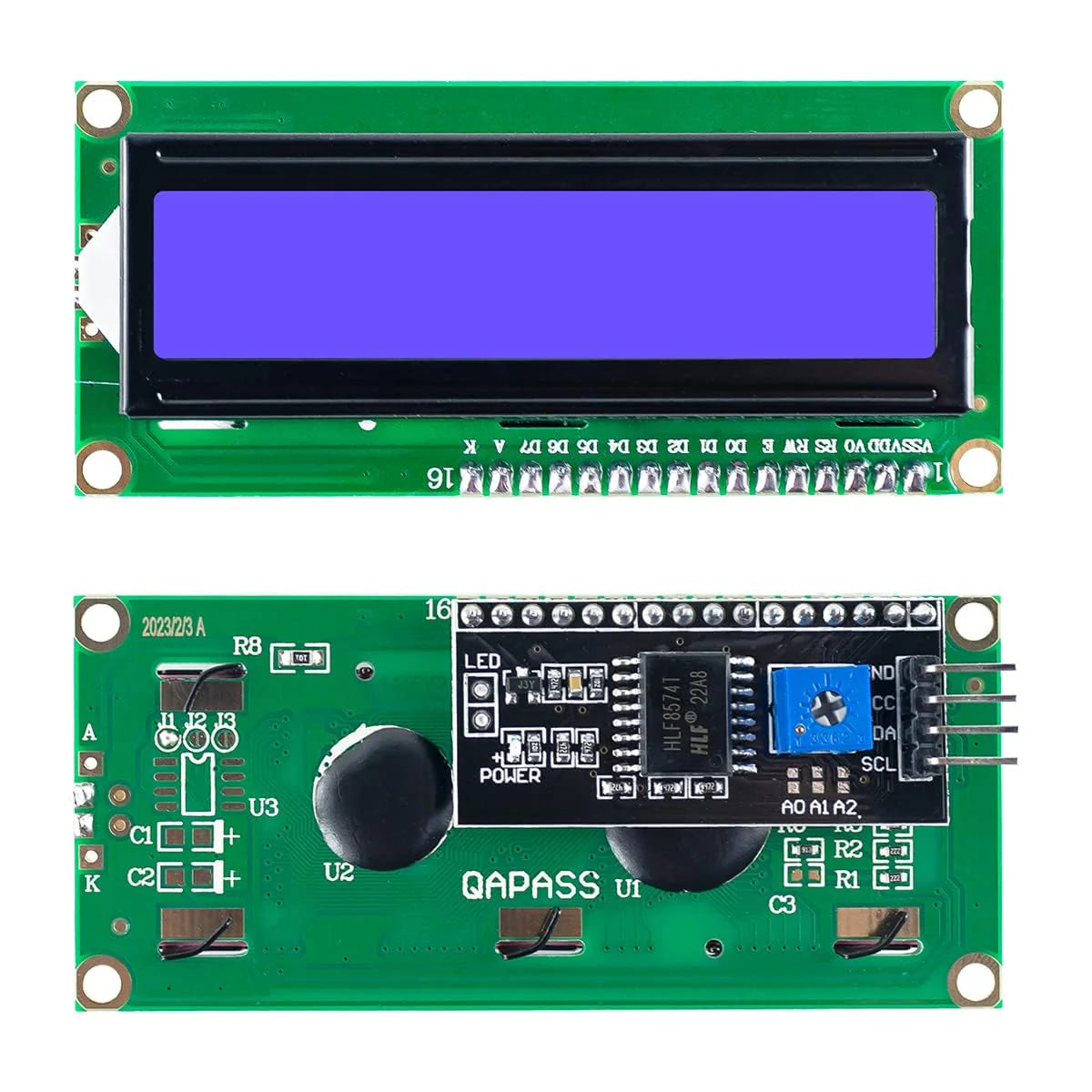

LCD 1602 16×2 Character Display with I2C Adapter green/blue

K-TECHNICS
Color

Secure checkout

Friendly support

Hassle-free returns

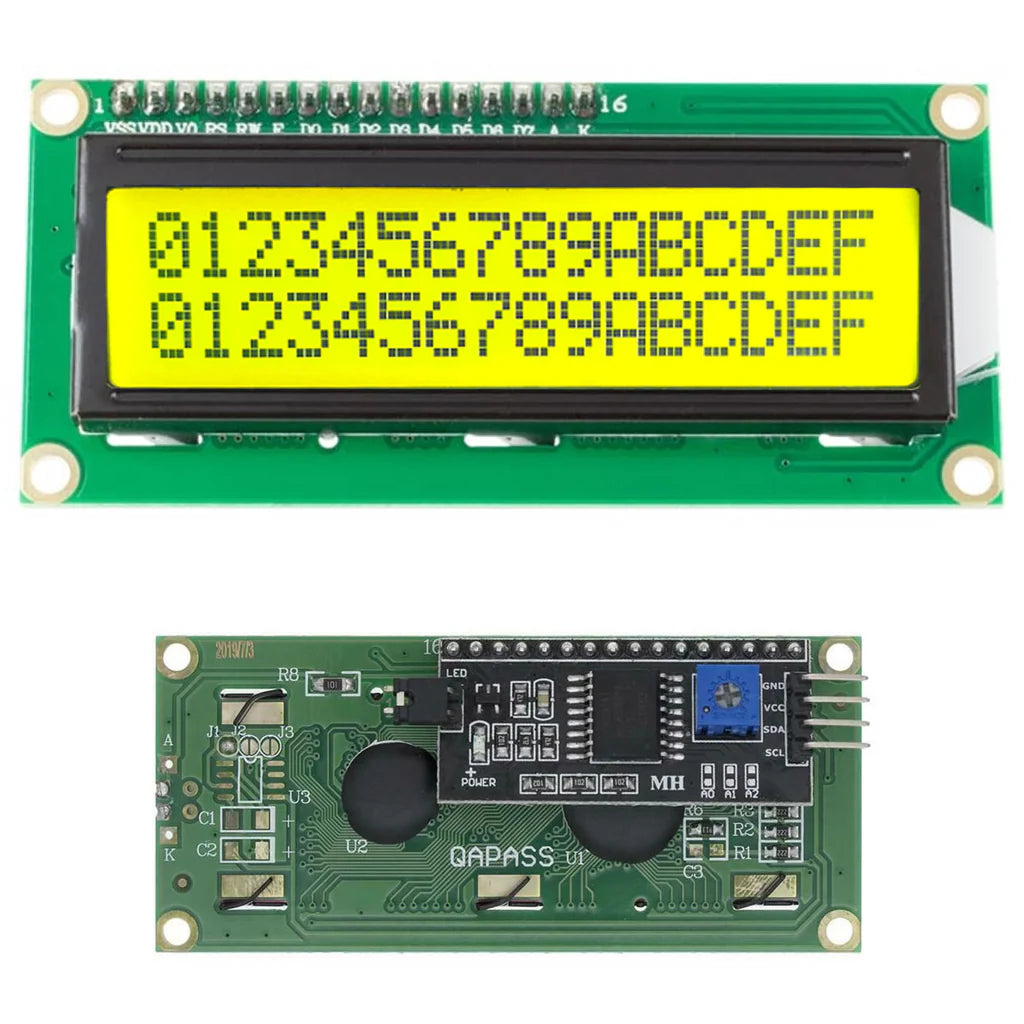

The LCD 1602 16×2 Green Character Display with an integrated I2C adapter is a popular electronic visualization tool that allows microcontrollers to present alphanumeric information. By combining a traditional parallel dot-matrix display with a pre-soldered or detachable serial backpack, it drops the required pin count from 16 control lines down to just 2 communication pins. This component features a bright yellow-green LED backlight paired with dark text to offer high visibility under various indoor lighting conditions.
Core Technical Specifications
  • Display Capacity: 16 characters per line across 2 separate rows.
  • Backlight: Bright green / yellow-green LED with dark character pixels.
  • Driver IC: Built-in industry-standard HD44780 controller equivalent.
  • I2C Serial Controller: Typically powered by the PCF8574 or PCF8574T chip.
  • Input Operating Voltage: Standard 5V DC power requirement.
  • Default I2C Hardware Address: Usually sets to 0x27 or 0x3F depending on chip vendor variants.
Hardware Interfacing & Pins
The built-in I2C adapter translates serial data into parallel signals required by the screen. This configuration leaves you with exactly 4 functional pins to wire into your main controller board:
  • VCC: Connects directly to your microcontroller's 5V supply line.
  • GND: Connects straight to the system's ground terminal.
  • SDA (Serial Data): Connects to your development board's data line.
  • SCL (Serial Clock): Connects to your development board's clock cycle line.
On-Board Adjustments
  • Contrast Potentiometer: A small blue trim screw sits on the back surface of the I2C adapter board. If your display turns on but shows completely blank blocks or no text, gently twist this knob with a screwdriver to sharpen the text contrast.
  • Backlight Control Jumper: A physical black plastic cap bridges a two-pin header labeled LED. Pulling this jumper completely cuts power to the green backlight
