LCD 2004 20×4 Character Display with I2C Adapter green/blue

K-TECHNICS
Out of stock
KSh900.00

Secure checkout

Friendly support

Hassle-free returns

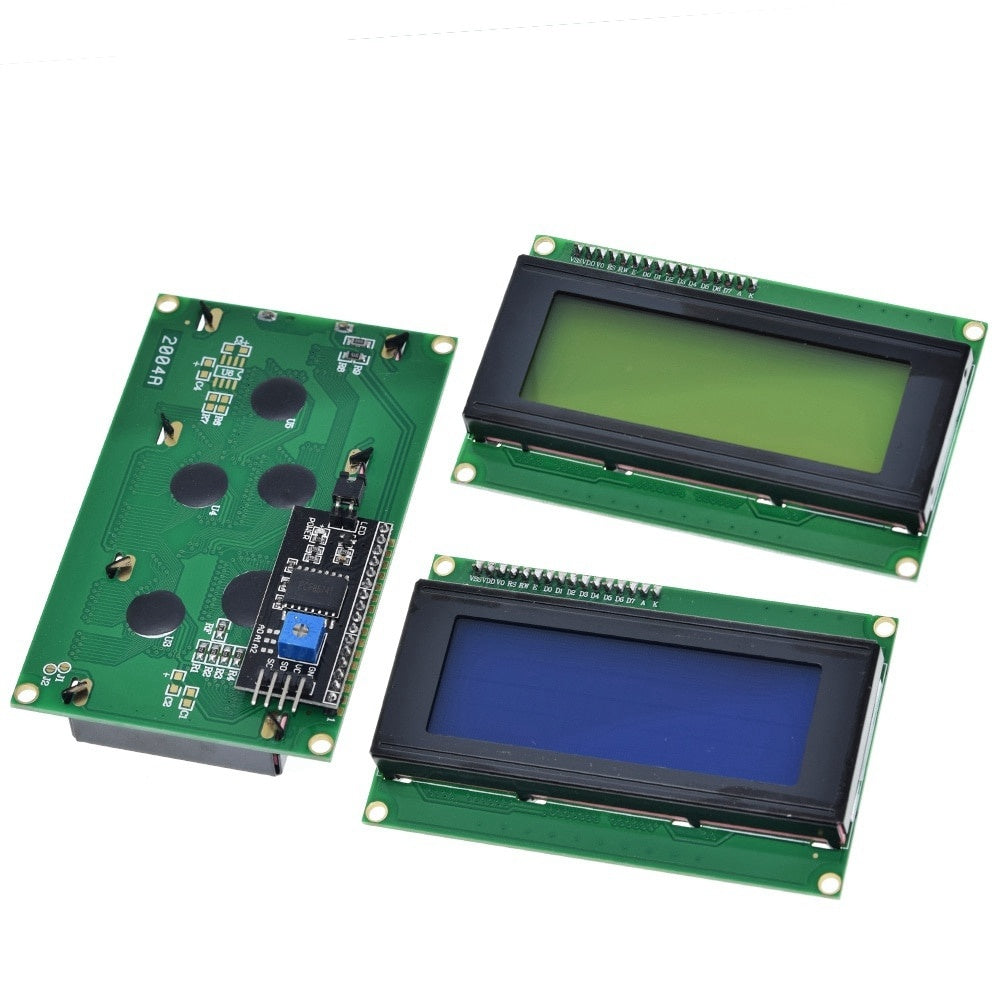

The LCD 2004 20x4 character display with an I2C adapter is a versatile module that shows 4 lines of 20 alphanumeric characters each. By using the I2C interface (typically a PCF8574 chip soldered to the back), it drastically reduces your microcontroller wiring to just four pins, making it ideal for Arduino and Raspberry Pi projects.
Key Specifications
  • Format: 20 characters by 4 lines
  • Controller: HD44780 (or compatible)
  • Backlight Colors: Available in vibrant green/yellow or deep blue backgrounds
  • Interface: I2C (Serial)
  • I2C Address: Usually 0x27 or 0x3F
  • Operating Voltage: 5V DC
I2C Wiring Guide
You only need to connect four wires between the I2C backpack and your microcontroller:
  • GND -> Microcontroller Ground
  • VCC -> Microcontroller 5V
  • SDA -> Arduino Analog 4 (A4) or Pi SDA pin
  • SCL -> Arduino Analog 5 (A5) or Pi SCL pin
Setup and Programming Tips
  • Libraries: You will need a specialized library to handle the I2C communication. The standard LiquidCrystal library will not work directly. The LiquidCrystal_I2C library by Frank de Brabander is highly recommended.

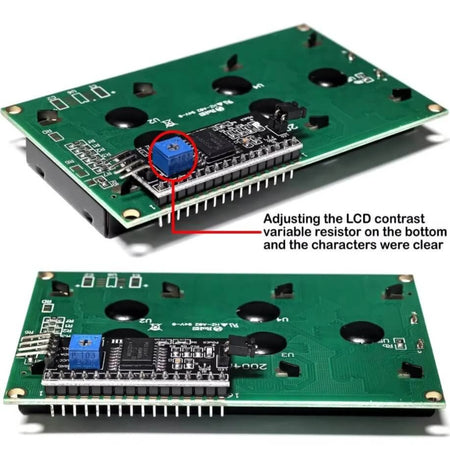

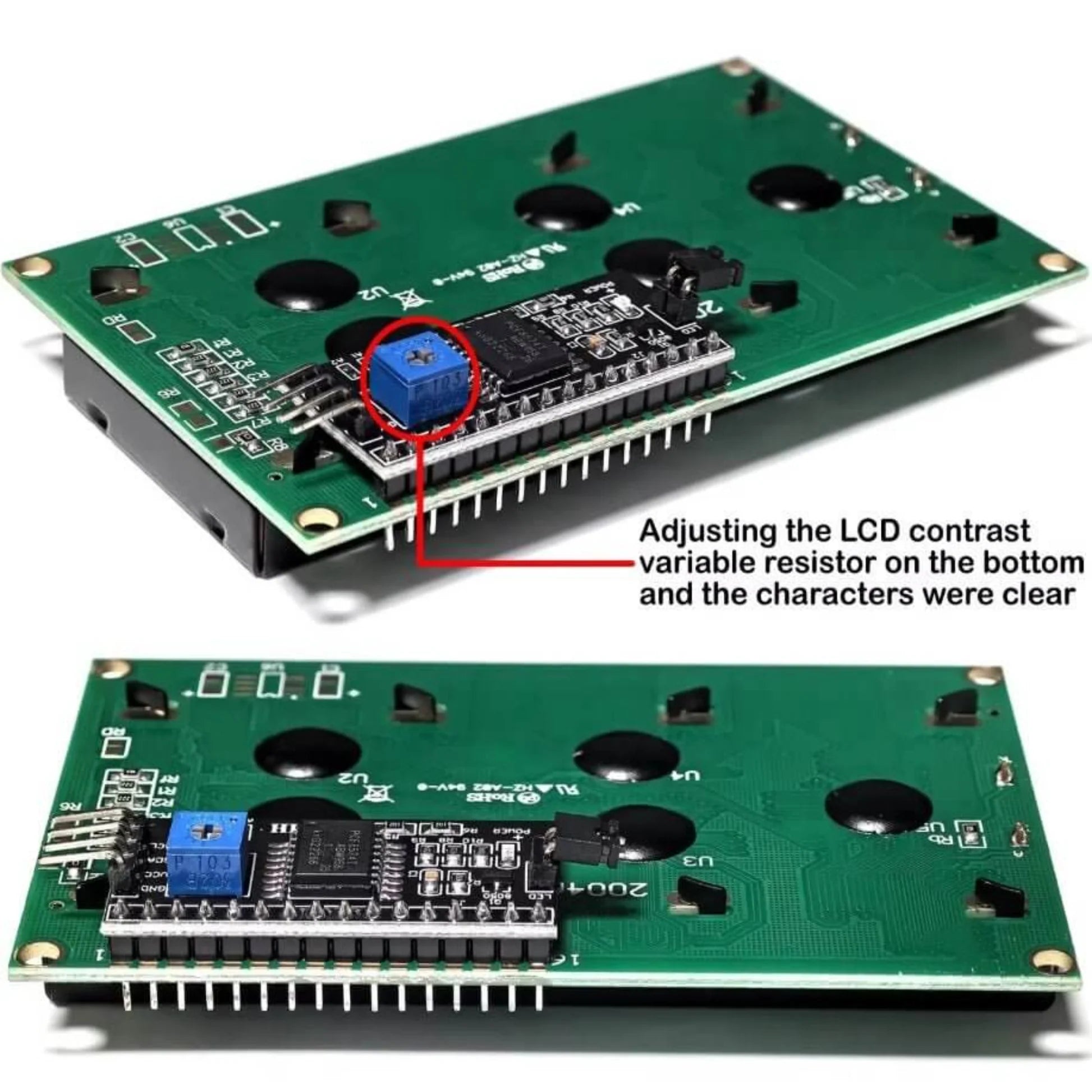

  • Contrast Adjustment: If your screen lights up blank or shows blocks, gently turn the small potentiometer (blue or white box) on the back of the I2C adapter with a small screwdriver until the text becomes visible.
  • Backlight Jumper: There is a small black jumper on the I2C module. Leave it on to power the backlight. If you remove it, the backlight turns off.
