LED Digital Voltmeter 0–30V / 0–100V DC Panel Meter

K-TECHNICS
Out of stock
KSh450.00

Secure checkout

Friendly support

Hassle-free returns

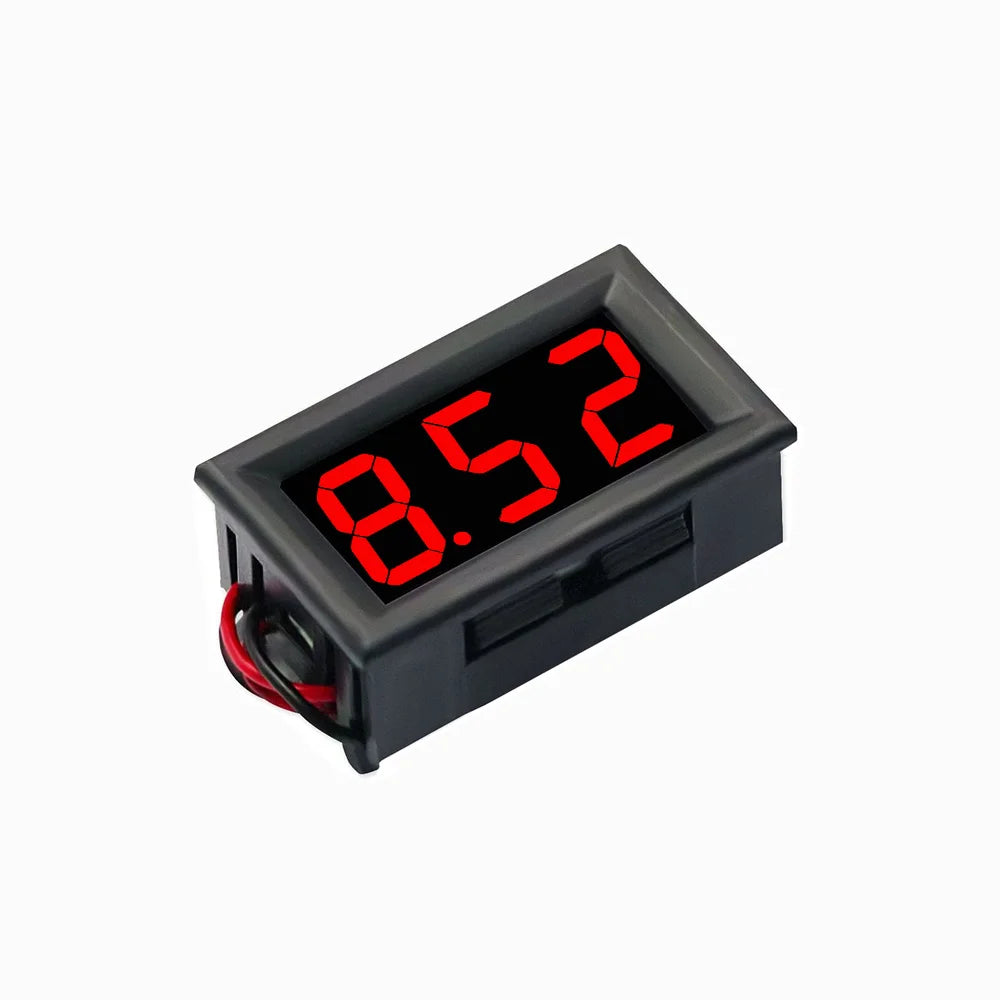

This LED Digital Voltmeter Panel Meter is a compact and accurate voltage monitoring module designed for real-time DC voltage measurement in electronic, automotive, and solar applications. It features a bright 0.56” LED display for clear readings in various lighting conditions.

The meter supports two measurement modes (0–30V or 0–100V depending on wiring configuration) and requires an external DC power supply (5–30V) for operation. It is widely used in battery systems, power supplies, DIY electronics, and embedded monitoring projects.

⚠️ Important: The measurement signal is NOT the power supply. A separate working voltage must be provided to power the module.

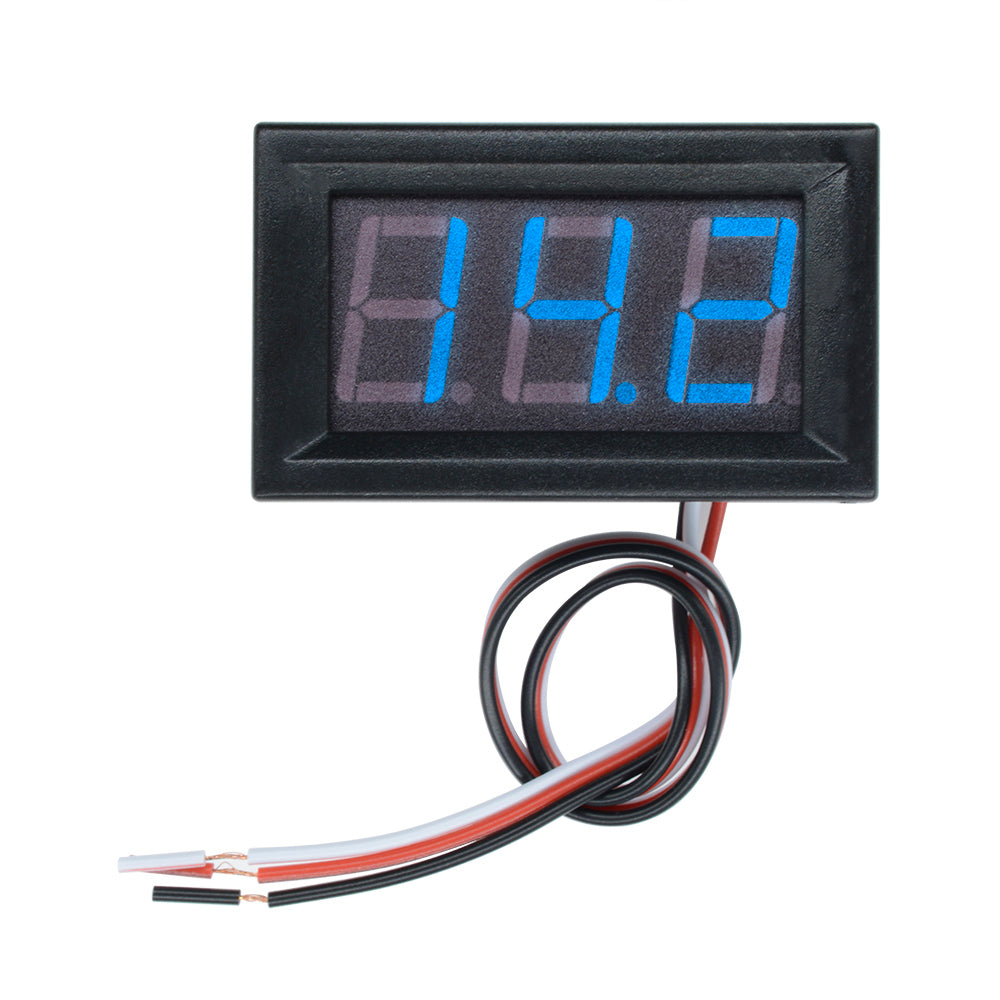

Wiring Instructions

  • Black wire: Common negative (GND)
  • White wire: Positive input of measured voltage
  • Red wire: Positive power supply (5–30V DC working voltage)

Features

  • Wide measurement range: 0–30V / 0–100V (depending on wiring type)
  • Bright 0.56” LED digital display
  • Available display colors: Red / Green / Blue / Orange / White
  • High input impedance (>100KΩ)
  • Low power consumption
  • Fast refresh rate (~300ms)
  • Compact panel-mount design
  • High accuracy voltage monitoring

Technical Specifications

Parameter Specification
Measurement Range 0–30V / 0–100V DC
Operating Supply Voltage 5V–30V DC (external power required)
Input Impedance >100KΩ
Operating Current Red <23mA, Green <18mA, Blue <13mA
Display Type 0.56” 3-digit LED
Refresh Rate ~300ms
Accuracy ±1%
Error Margin ±0.3V (≥10V), ±0.10V (<10V)
Lead Length ~20cm

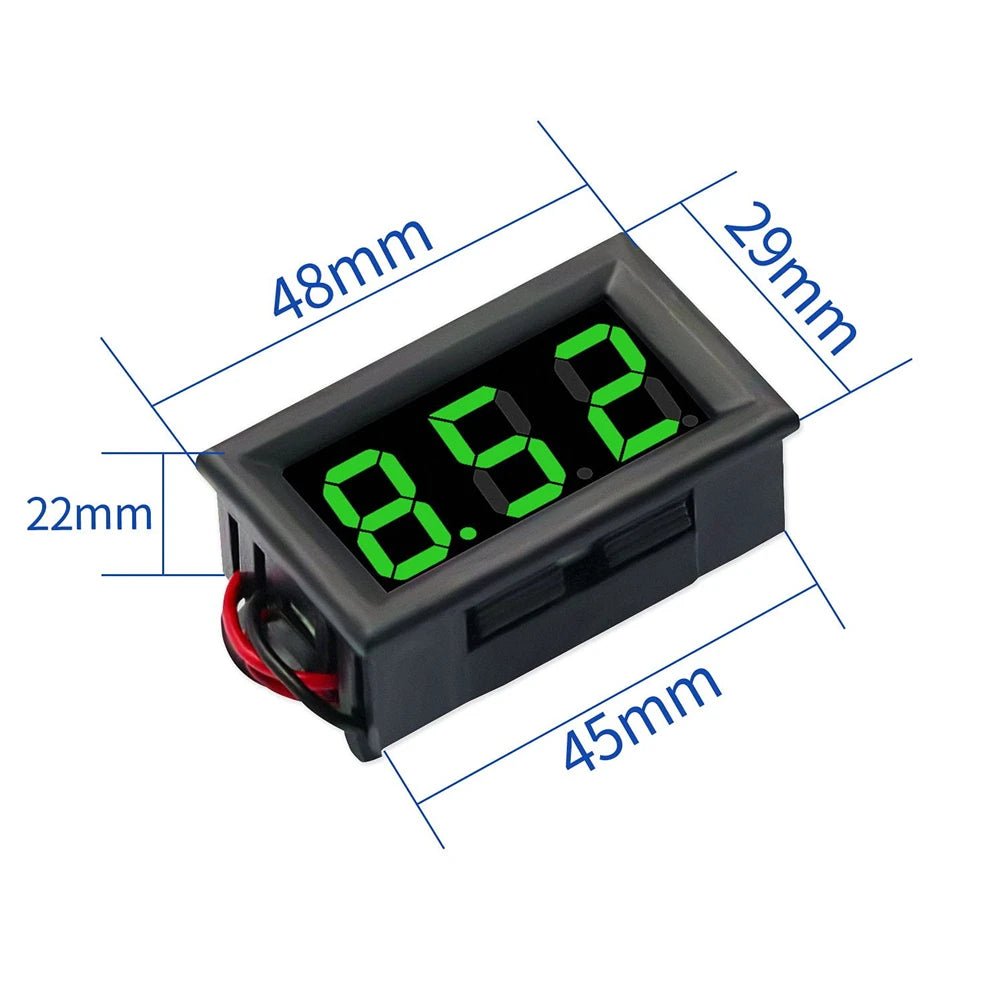

Dimensions 48 × 29 × 22 mm
Mounting Hole 46 × 27 mm
Operating Temperature -10°C to 65°C
Display Colors Red / Green / Blue / Orange / White

Important Notes

  • Do NOT use measurement input above 30V for 0–30V mode (damage risk)
  • For 0–100V mode, ensure proper configuration and avoid high current on signal line
  • Always provide correct external power (5–30V DC) for operation
