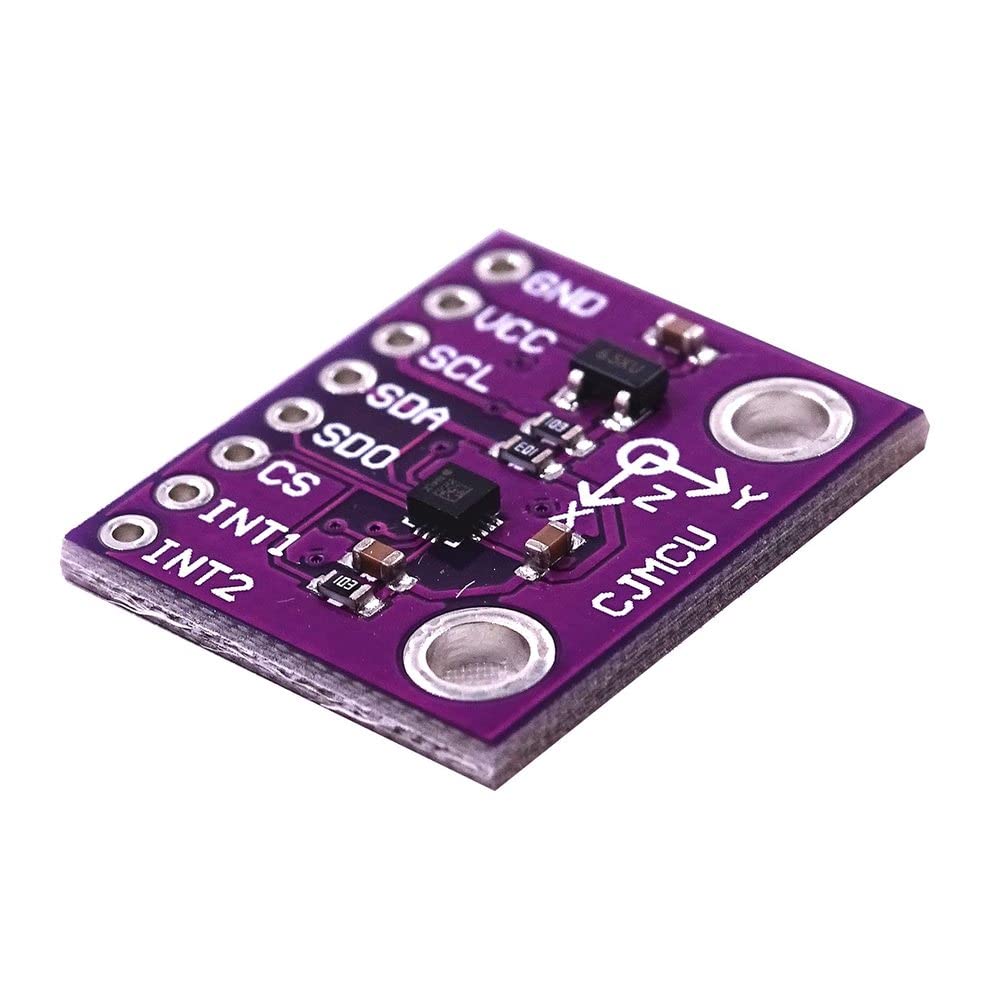

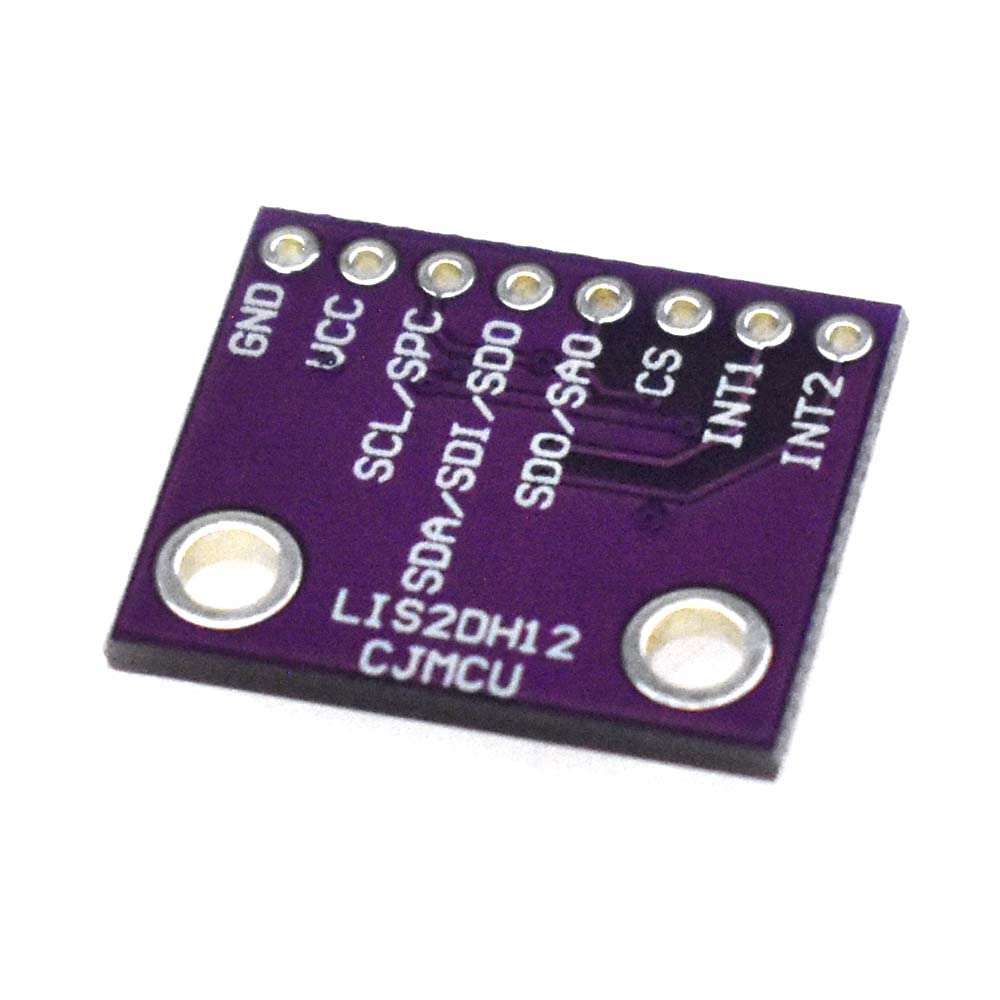

LIS2DH12TR Three Axis Accelerometer

K-TECHNICS
Only 3 left
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

The LIS2DH12TR is an ultra-low-power, high-performance 3-axis linear accelerometer manufactured by STMicroelectronics. It belongs to the "femto" family of motion sensors and is widely utilized for battery-powered, space-constrained internet of things (IoT), consumer, and industrial systems.
Key Technical Specifications
  • Measurement Ranges: User-selectable full-scales of ±2g, ±4g, ±8g, or ±16g.
  • Interface: Standard digital I²C.
  • Power Consumption: Extremely low operational current, down to 2 μA in low-power mode.
  • Supply Voltage: Wide main supply range from 1.71 V to 3.6 V, featuring an independent I/O supply (1.8 V).
  • Output Data Rates (ODR): Configurable speeds from 1 Hz up to 5.3 kHz.
  • Resolution: Supports up to 12-bit data output.
  • Package: Compact 12-lead land grid array (LGA-12, 2 × 2 × 1 mm). The "TR" suffix indicates delivery on Tape & Reel.
Embedded Smart Features
The chip integrates onboard processing to offload tasks from the host microcontroller:
  • Integrated FIFO: A 32-level first-in, first-out buffer to store data internally, allowing the host CPU to remain in sleep mode longer.
  • Programmable Interrupts: Dual independent interrupt engines to detect free-fall, motion/inertial wake-up, and 4D/6D orientation changes automatically.
  • Temperature Sensor: Features an embedded temperature sensor for environmental tracking or system compensation.
