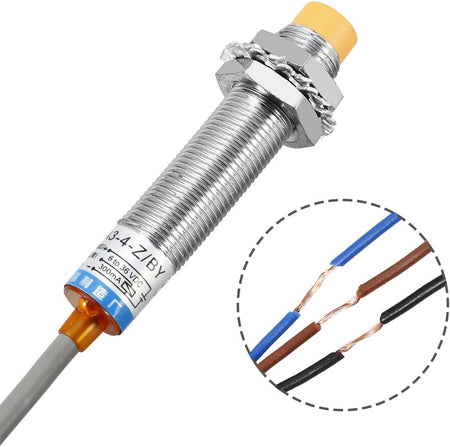

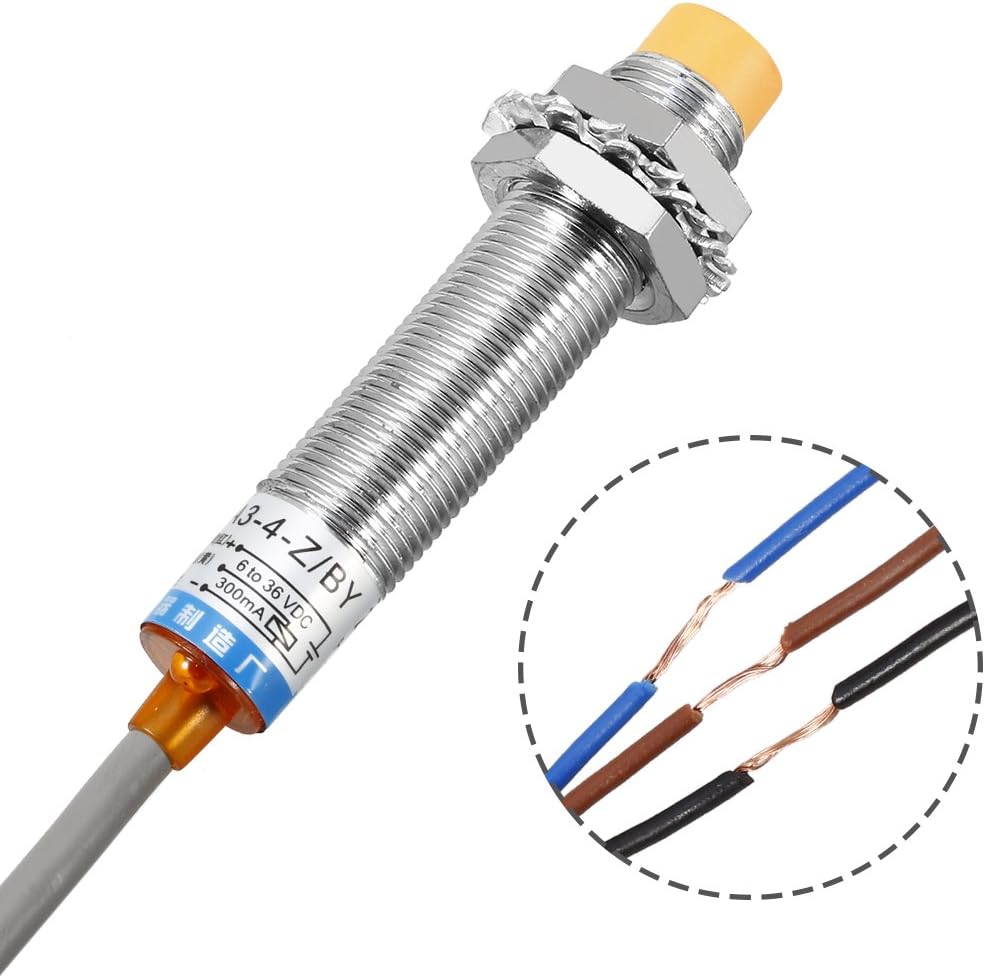

LJ12A3-4-Z/BY Inductive Proximity Sensor

K-TECHNICS
Out of stock
KSh650.00

Secure checkout

Friendly support

Hassle-free returns

The LJ12A3-4-Z/BY is a cylindrical, 3-wire PNP Normally Open (NO) inductive proximity sensor. It is primarily used to detect the presence of metallic objects (especially ferrous metals like iron) without physical contact within a range of 4mm.
Core Technical Specifications
Parameter  Specification
Model LJ12A3-4-Z/BY
Sensor Type Inductive Proximity
Output Configuration PNP, Normally Open (NO)
Sensing Distance 4mm (± 10%)
Supply Voltage DC 6V – 36V
Maximum Output Current 300 mA
Thread/Head Diameter M12 (12mm)
Target Detection Material Magnetic metals (Iron is optimal; non-ferrous metals like aluminum decrease range)
Response Frequency 500 Hz (0.5 KHz)
Built-in Indicator Red LED (illuminates when a target is detected)
Wiring Pinout (3-Wire System)
The sensor uses a standard industrial color code for its integrated cable:
  • Brown (VCC): Connects to the positive supply voltage (+6V to +36V DC).
  • Blue (GND): Connects to the negative supply voltage / Ground (0V).
  • Black (Signal Output): Sinks or sources current based on sensor type. Because this is a PNP model, when a metal target is detected, the black wire outputs a high voltage equivalent to the applied supply voltage
