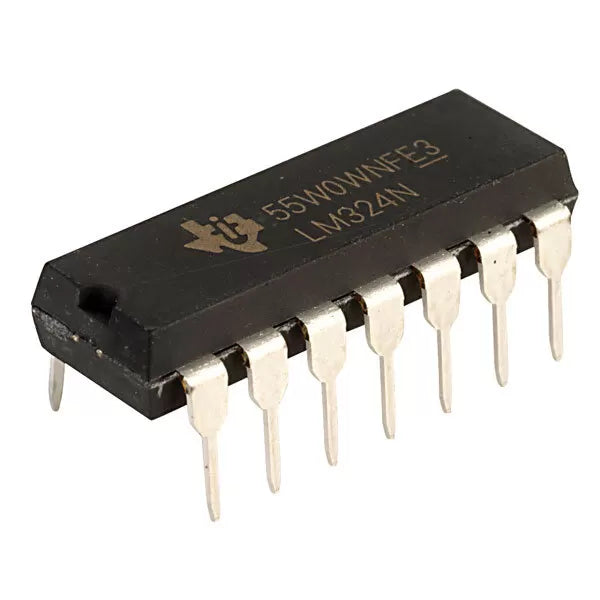

LM324N Quad Operational Amplifier (Low Power - DIP-14 Package)

When you need to condition analog signals, build active filters, or amplify tiny sensor readings for a microcontroller, the LM324 is the definitive go-to component. This highly popular integrated circuit contains four completely independent, high-gain operational amplifiers inside a single 14-pin package. What truly made the LM324 a legend in electronics design is its ability to operate flawlessly on a single power supply. Unlike older op-amps that strictly required a complex dual-supply setup (positive and negative voltages), the LM324 was specifically designed to run off a single standard battery or logic power rail.

Because it draws very little baseline current, it is an exceptionally good choice for portable, battery-operated devices. Furthermore, it features internal frequency compensation, meaning it remains stable across a wide variety of circuit configurations without requiring you to wire up extra external capacitors. Whether you are building an audio mixer, amplifying the weak signal from a microphone, or creating complex analog control loops, the LM324 provides reliable, predictable analog performance.

Key Features & Functional Advantages

• Quad Amplifier Design: Four completely separate operational amplifiers in one chip allow you to build complex multi-stage filters or monitor four different sensors without increasing your circuit board size.

• Single Supply Operation: Specifically engineered to operate from a single positive voltage source, making it perfectly compatible with standard 5-Volt and 12-Volt digital power rails.

• Low Power Consumption: Draws an incredibly small amount of supply current (typically around one milliamp for the entire chip), saving massive amounts of energy in battery-powered projects.

• Internal Frequency Compensation: Guarantees stability under most operating conditions, drastically simplifying your circuit layout and reducing the number of external components needed.

• True Differential Inputs: Capable of precisely comparing and amplifying the voltage difference between its two input pins, ignoring background electrical noise common to both.

Perfect For

• Sensor Signal Conditioning: Amplifying very weak analog signals from load cells, temperature sensors, or photodiodes so they can be accurately read by an Arduino or standard logic chip.

• Active Audio Filters: Building custom low-pass, high-pass, or band-pass filters to clean up audio signals or isolate specific frequencies.

• Analog Buffering: Acting as an electronic "wall" to prevent a heavy load from drawing too much current and interfering with a delicate sensor signal.

• Educational Prototyping: The absolute standard op-amp for breadboarding and learning analog circuit design in university and hobbyist labs.

Technical Specifications

• Device Type: Quad Operational Amplifier

• Number of Channels: 4 Independent Amplifiers

• Single Supply Voltage Range: 3.0 Volts to 32.0 Volts DC

• Dual Supply Voltage Range: +/- 1.5 Volts to +/- 16.0 Volts DC

• Total Supply Current: ~1.2 milliamps (ultra-low power)

• Input Offset Voltage: Low offset for accurate signal processing

• Package Type: 14-Pin Dual Inline Package (DIP-14)
