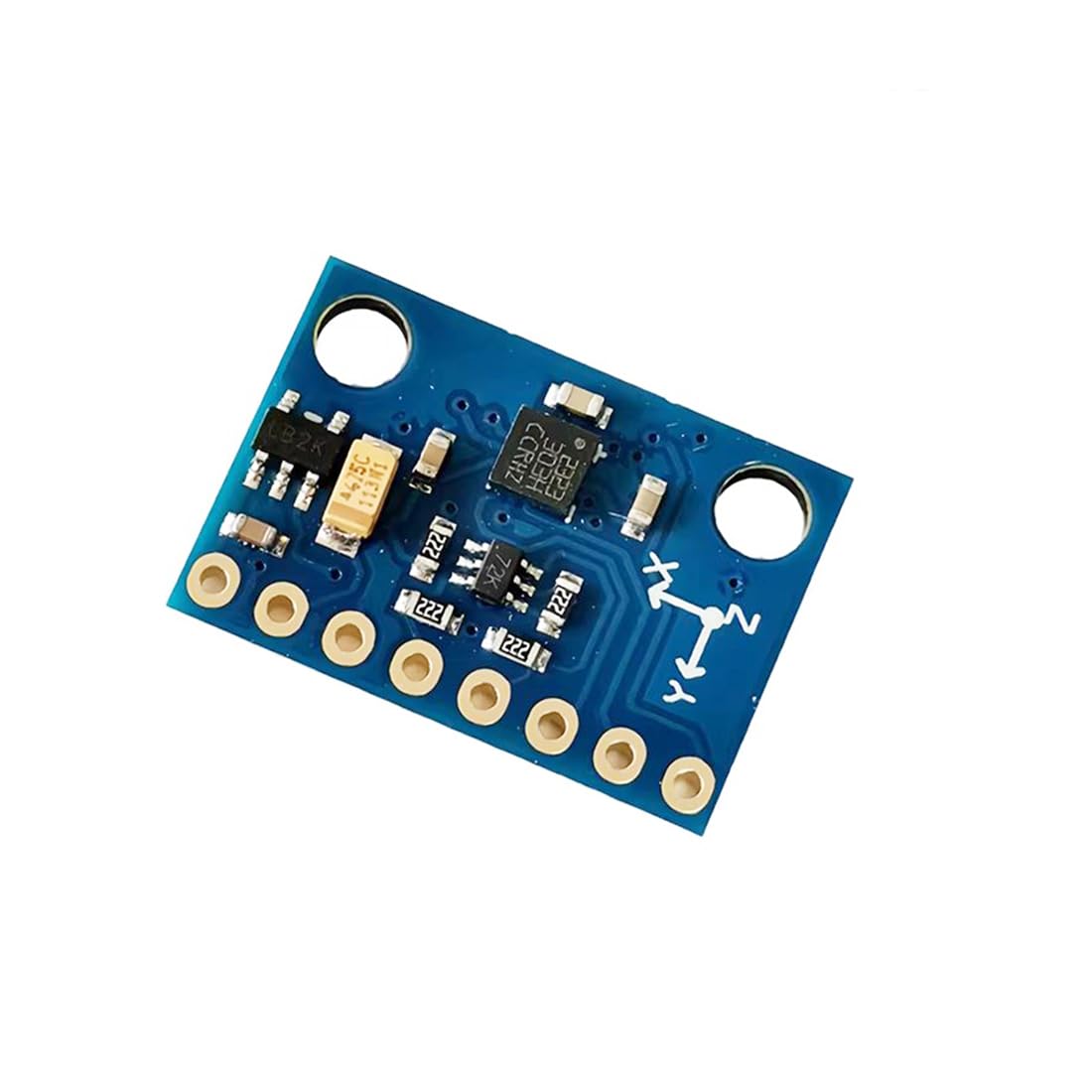

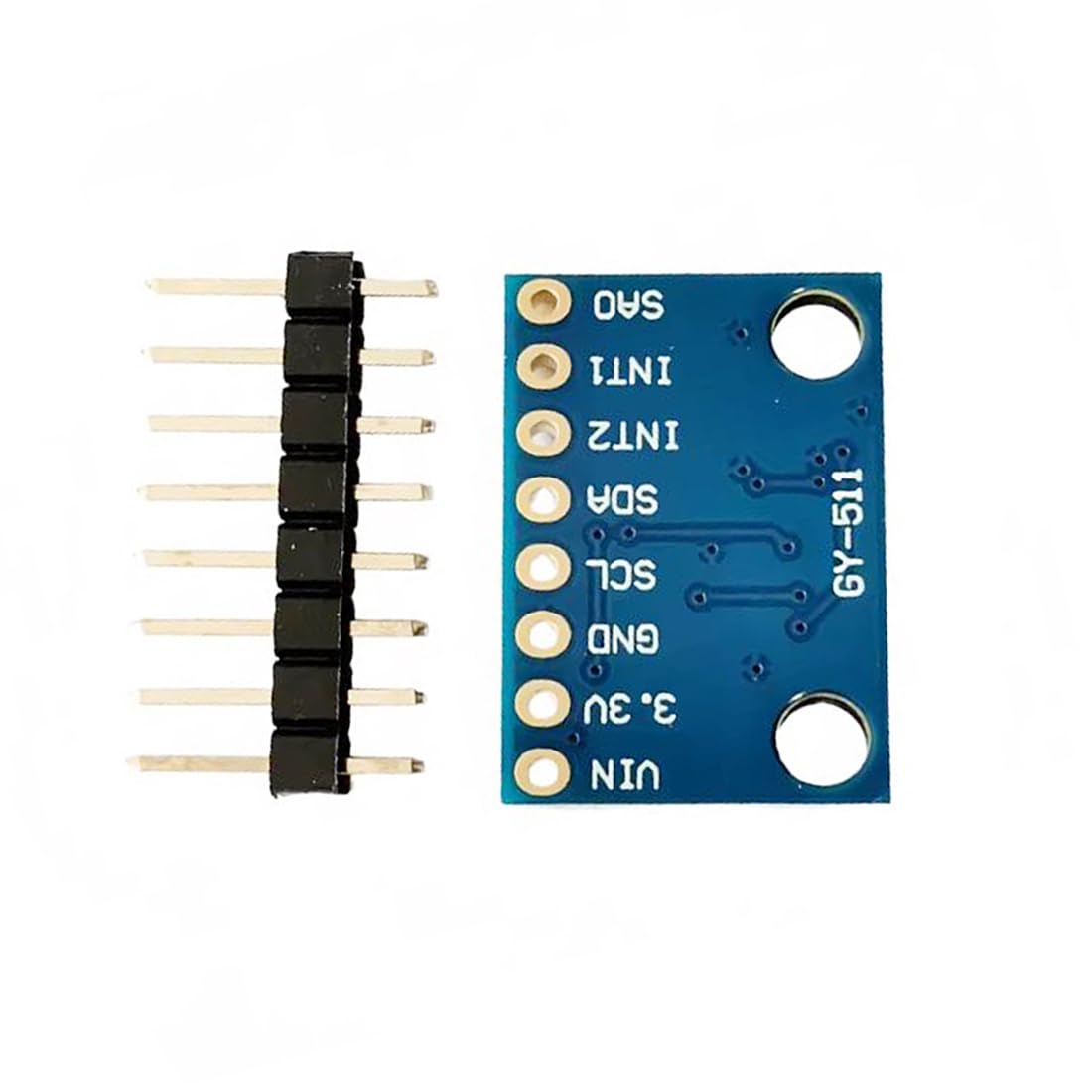

LSM303DLHC Compass and Accelerometer

K-TECHNICS
Out of stock
KSh2,500.00

Secure checkout

Friendly support

Hassle-free returns

The LSM303DLHC is a popular system-in-package (SiP) that combines a 3-axis digital linear accelerometer and a 3-axis digital magnetic sensor into a single module. It is widely used in Arduino, Raspberry Pi, and DIY robotics projects to create tilt-compensated e-compasses, IMUs, and navigation systems.
Core Specifications
  • Accelerometer: Measures gravity (acceleration) with selectable ranges of ± 2, ± 4, ± 8, or ± 16 g.
  • Magnetometer: Measures the Earth's magnetic field with configurable sensitivities from ± 1.3 to ± 8.1 gauss.
  • Interface: I²C communication (supports 100 kHz standard mode and 400 kHz fast mode).
  • ADC: Built-in 12-bit analog-to-digital converter returning 16-bit data output.
  • Operating Voltage: Typically operates between 2.5 V and 5.5 V (common breakout boards include voltage regulators).
Common Use Cases
  • Tilt-Compensated Compass: Uses the accelerometer to find "down" (gravity) and the magnetometer to find "north," allowing the compass to provide accurate directional headings even if the sensor is held at an angle.
  • Inertial Measurement Units (IMUs): When paired with a gyroscope, it creates a full 9-DoF (Degrees of Freedom) tracking system for aerial and marine drones.
  • Orientation & Free-Fall: Can be programmed to trigger interrupts during free-fall, wake-up, or basic positional orientation.
