MAX7219 4-in-1 Red LED Dot Matrix Display Module

K-TECHNICS
Out of stock
KSh1,100.00

Secure checkout

Friendly support

Hassle-free returns

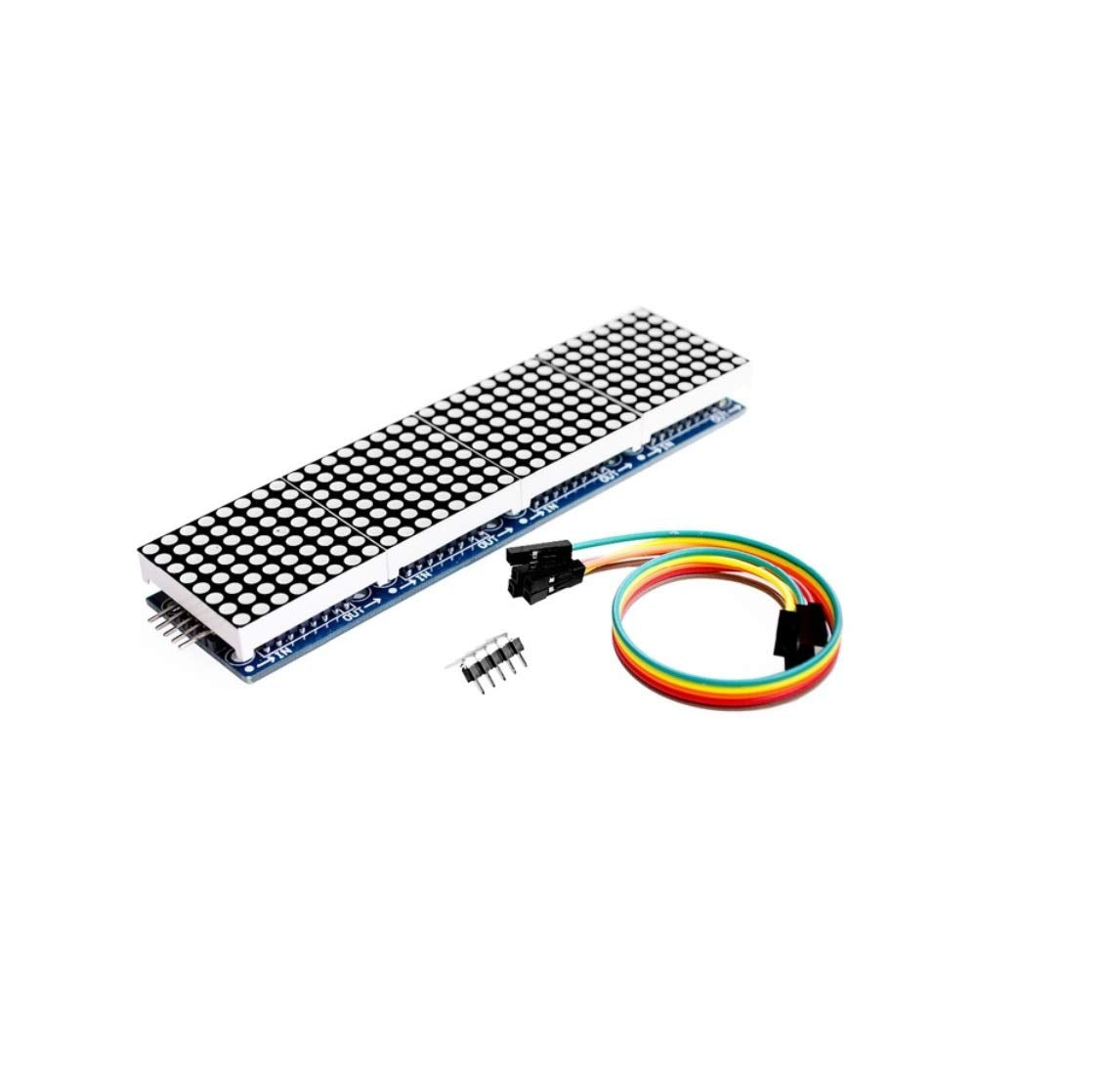

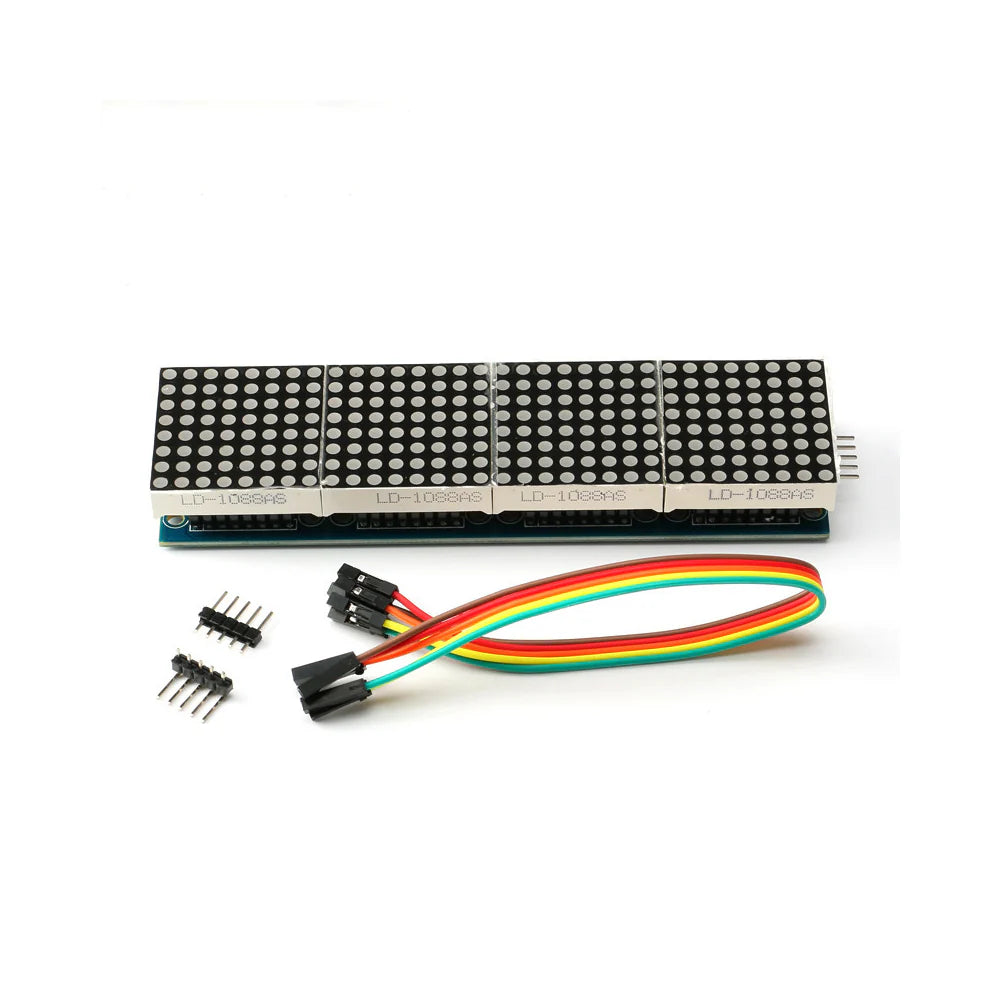

The MAX7219 4-in-1 Dot Matrix Display Module is a popular, pre-assembled electronics component that integrates four 8x8 LED matrices onto a single printed circuit board (PCB). This configuration creates a continuous 32x8 pixel grid (totaling 256 LEDs) controlled by four surface-mounted MAX7219 driver ICs. It handles all multiplexing and display refreshes internally, allowing hobbyists and developers to create scrolling text, custom animations, and data tickers using just a few microcontroller pins.
Key Specifications & Features
  • Resolution: 32 columns × 8 rows (256 individual LEDs).
  • Operating Voltage: 5V DC (Do not power directly from 3.3V logic pins as it requires 4.0V–5.5V for VCC).
  • Physical Dimensions: Approximately 12.8 cm long × 3.2 cm wide × 1.3 cm high.
  • Interface: Standard 3-wire or 4-wire Serial Peripheral Interface (SPI).
  • Daisy-Chaining: Features input headers on one end and output headers on the other, allowing multiple 4-in-1 units to be connected in series for longer screens.
  • Brightness Control: 16 levels of software-adjustable digital brightness.
Module Pinout Configuration
The input side of the module features 5 distinct pins that must be routed to your microcontroller:
  • VCC: Connects to the +5V power source.
  • GND: Connects to the system ground line.
  • DIN (Data In): SPI data line carrying pixel commands.
  • CS / LOAD (Chip Select): Toggled by the processor to latch incoming serial data.
  • CLK (Clock): Standard serial clock signal line.
