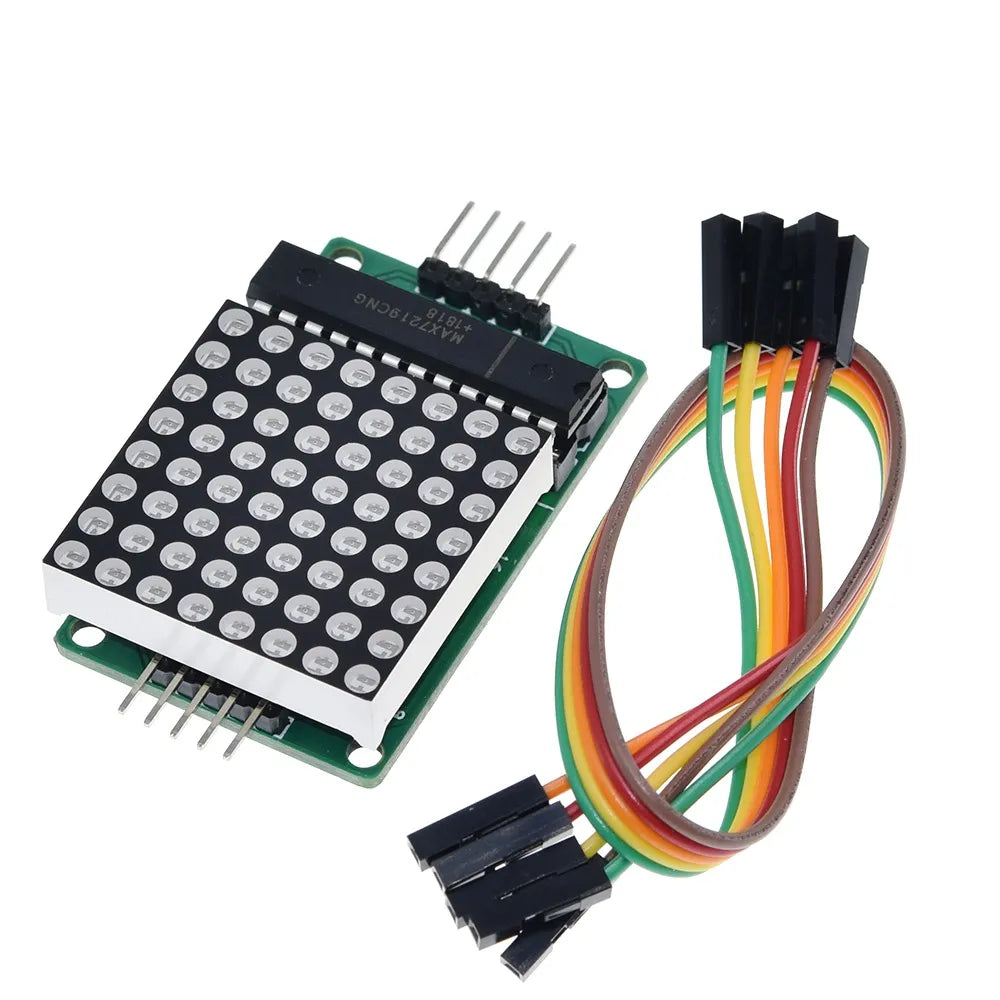

MAX7219 DOT LED MATRIX MODULE

K-TECHNICS
In stock
KSh300.00

Secure checkout

Friendly support

Hassle-free returns

The MAX7219 Dot LED Matrix Module is an 8x8 display driver that lets you easily control 64 individual LEDs using only three data pins on a microcontroller. It is widely used with Arduino, Raspberry Pi, and ESP32 platforms to create scrolling text, digital clocks, and graphic animations.
Overview
The core of the module is the MAX7219 IC, which serves as a serial-input/output common-cathode display driver. It features a built-in BCD decoder, multiplex scanning circuitry, and an 8x8 static RAM to store display data. Because the chip manages the constant refreshing of the LEDs, your microcontroller is freed up to perform other tasks and doesn’t suffer from display flickering.
Pinout & Wiring

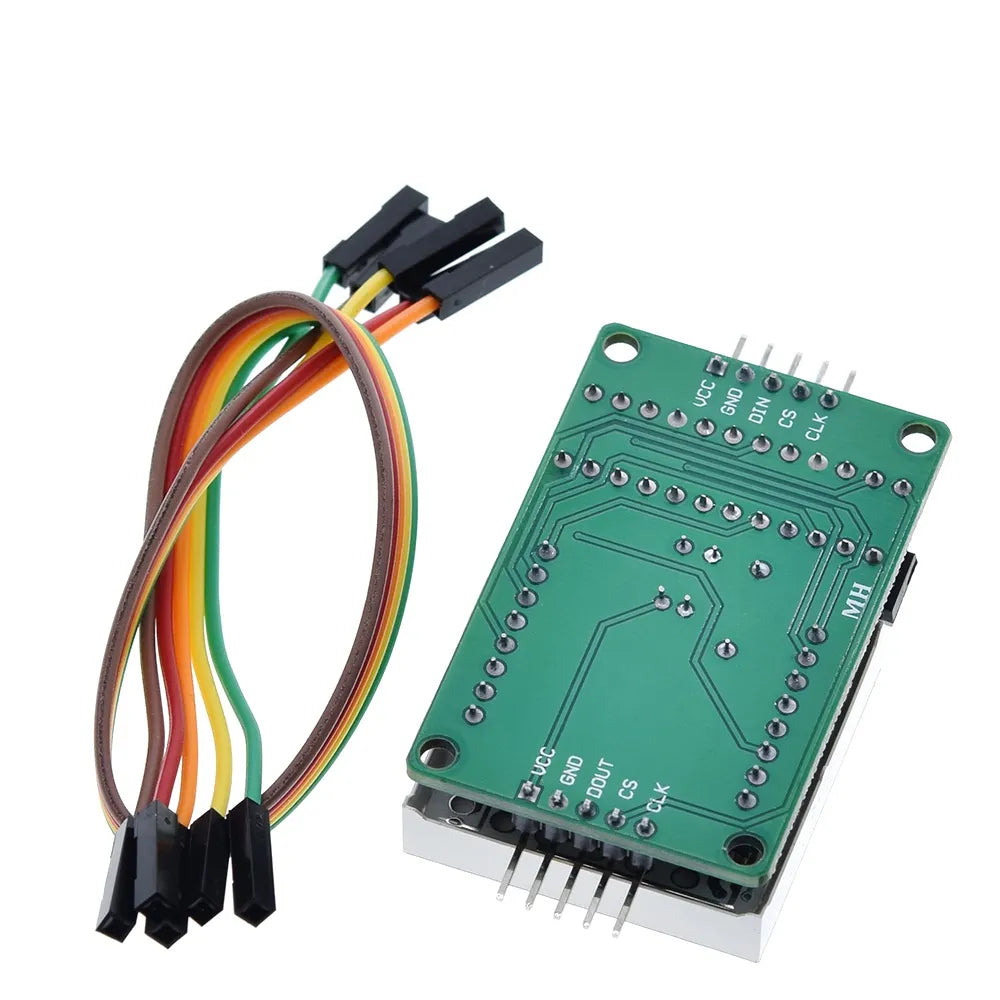

The module typically features a 5-pin input interface for connecting to your microcontroller and a corresponding 5-pin output interface for cascading modules together.
Pin Label  Function Connection (e.g., Arduino Uno)
VCC Power Supply 5V
GND Ground GND
DIN Data In Digital Pin 10 (or MOSI)
CS Chip Select / Load Digital Pin 11 (or SS/CS)
CLK Clock Digital Pin 13 (or SCK)
How to Program
To program the module, you don't have to write complex bit-shifting or multiplexing logic from scratch. The easiest route is to use pre-built libraries in the Arduino IDE.
  1. Install Libraries: Go to Sketch > Include Library > Manage Libraries and search for MD_MAX72xx and MD_Parola (for advanced text scrolling). Alternatively, the LedControl library is great for basic 8x8 grid control.
  2. Define Hardware: When initializing the library, ensure you specify the exact hardware type you are using (e.g., FC16_HW for standard modules) to avoid mirrored or flipped text.
  3. Set Brightness: The MAX7219 allows you to adjust the LED intensity through your code, scaling from 0 (lowest) to 15 (highest).
Cascading Displays
These modules are designed to be daisy-chained for longer displays (e.g., "4-in-1" 32x8 matrix displays). To do this, you connect the DOUT (Data Out) of the first module to the DIN of the next module, and tie their respective CS and CLK lines together. You then tell your code how many cascaded devices you are using so it can properly format the scrolling text across the entire strip.
