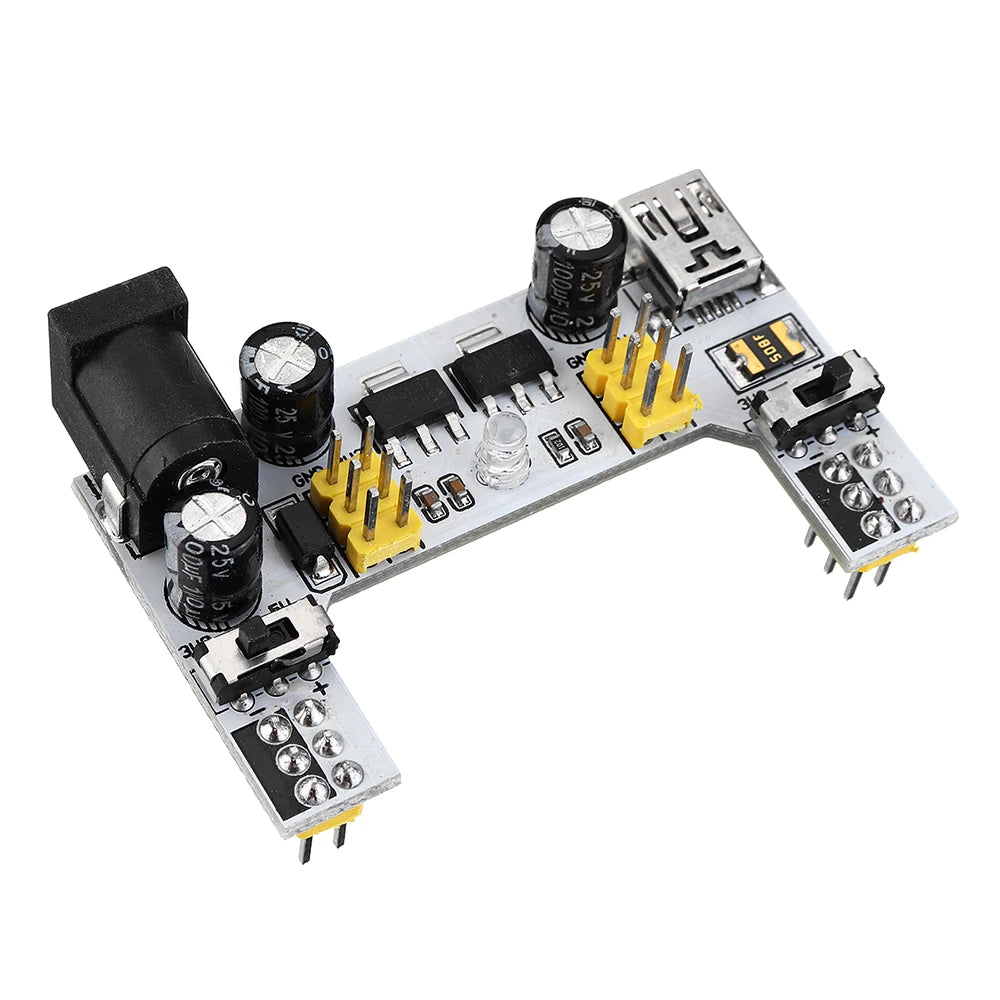

MB102 Breadboard Power Supply Module

K-TECHNICS
In stock
KSh150.00

Secure checkout

Friendly support

Hassle-free returns

Key Features

  • Selectable 3.3V or 5V output for breadboard power rails
  • Dual independent channels with separate voltage selection jumpers
  • Compatible with standard MB102 solderless breadboards
  • Supports DC input (6.5V–12V) via barrel jack or 5V USB power
  • Built-in ON/OFF switch and power indicator LED
  • Additional 3.3V, 5V, and GND output pins for external connections
  • Compact, plug-and-play design for rapid prototyping
  • Short-circuit and reverse-polarity protection on many versions

Specifications

  • Input Voltage: 6.5V–12V DC or 5V USB
  • Output Voltage: 3.3V / 5V (selectable)
  • Maximum Output Current: Up to 700mA
  • Independent power rail control
  • Dimensions: Approx. 53 × 33 × 23 mm
