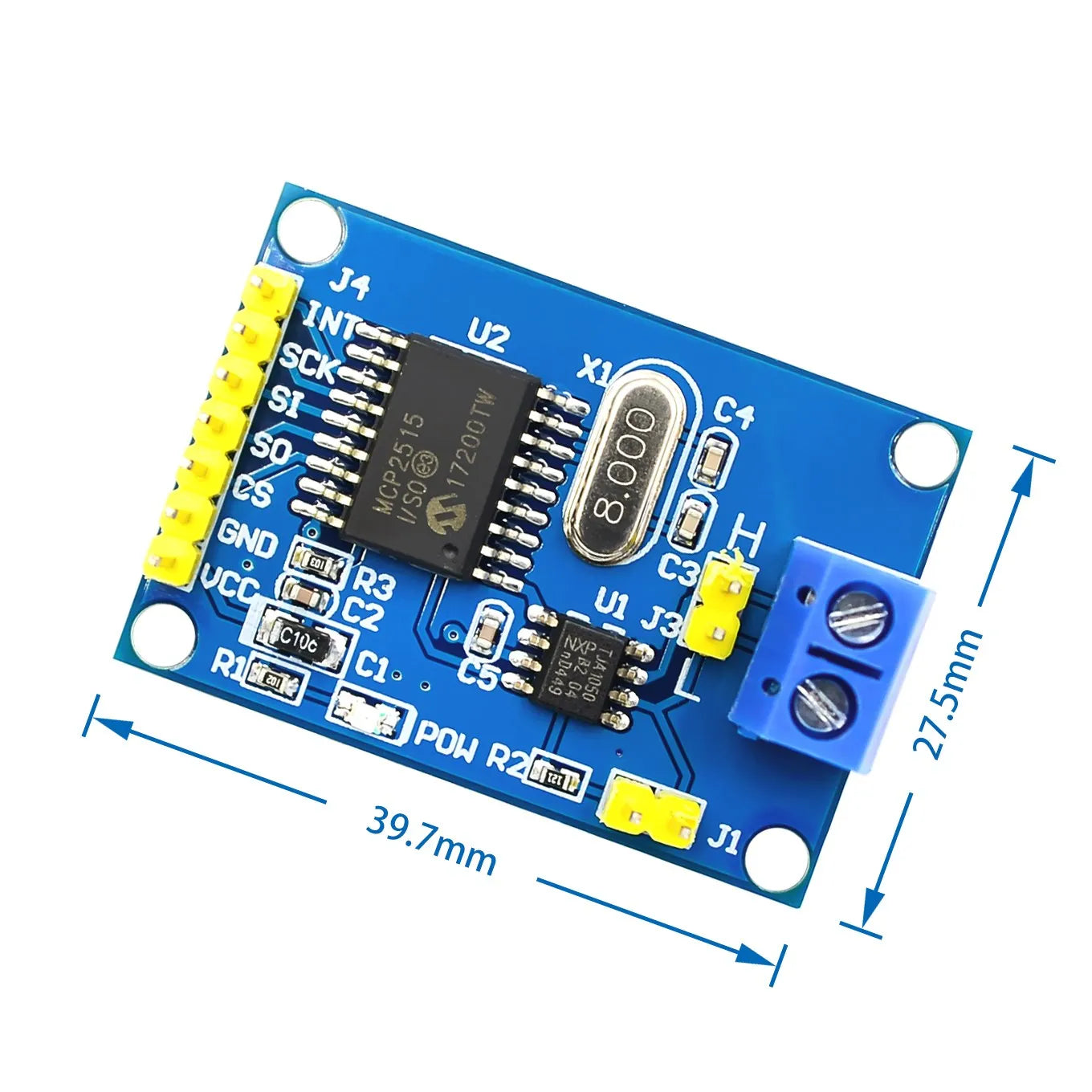

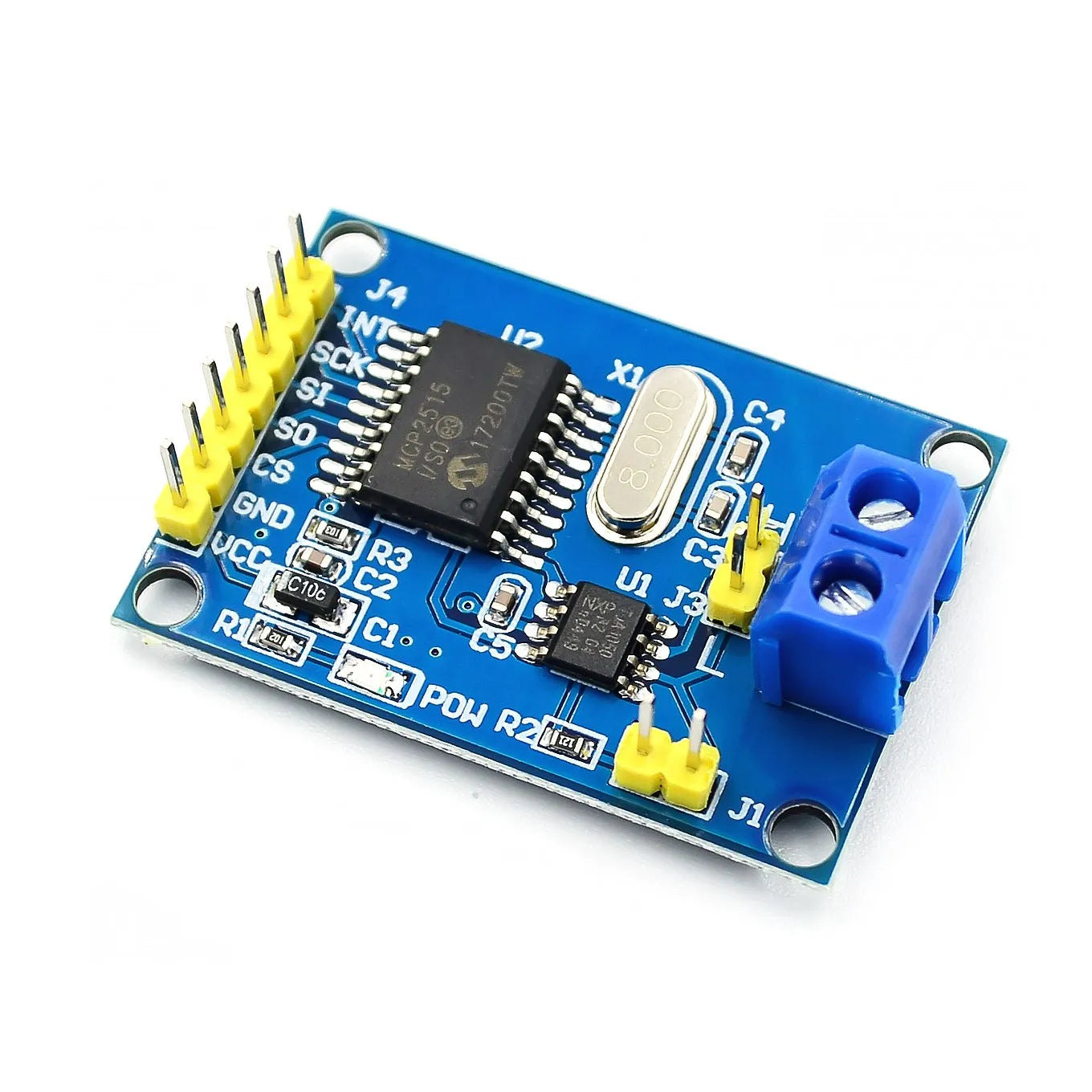

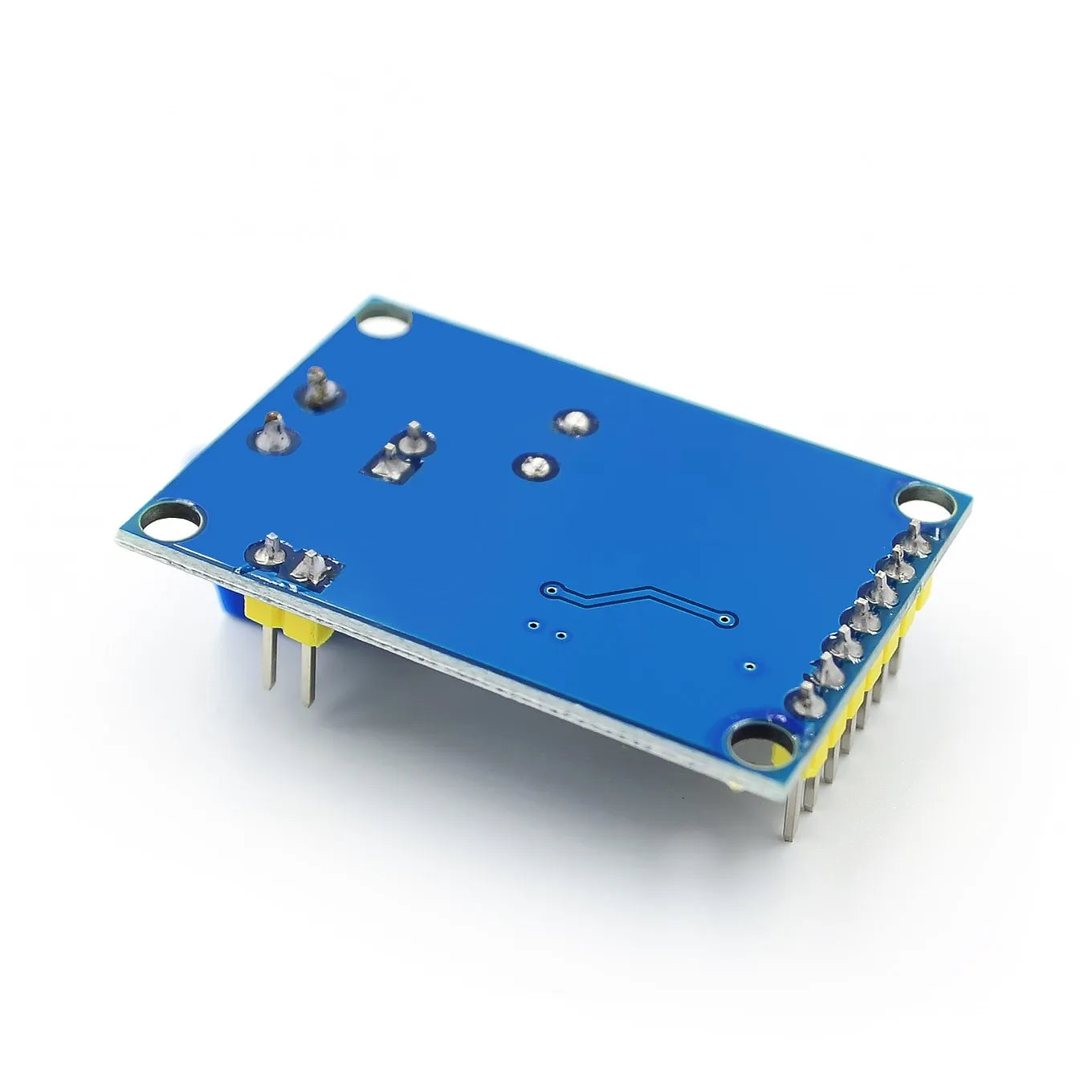

MCP2515 CAN Bus Module with TJA1050 SPI Interface

K-TECHNICS
In stock
KSh500.00

Secure checkout

Friendly support

Hassle-free returns

The MCP2515 CAN Bus Module adds CAN 2.0B communication capability to microcontrollers that do not have an integrated CAN controller. It combines the Microchip MCP2515 stand-alone CAN controller with a TJA1050 high-speed CAN transceiver, providing a convenient SPI-to-CAN interface for Arduino, Raspberry Pi, STM32, AVR, and other microcontroller projects.

The module supports standard 11-bit and extended 29-bit CAN frames, with communication speeds of up to 1 Mbps. An onboard 8MHz crystal oscillator and 120Ω termination resistor make it convenient for CAN bus prototyping, automotive diagnostics, industrial automation, and embedded CAN networks.

Key Features

  • MCP2515 CAN controller + TJA1050 transceiver
  • Supports CAN 2.0B
  • Standard 11-bit and extended 29-bit CAN identifiers
  • CAN communication speed up to 1 Mbps
  • SPI interface for connection to the host microcontroller
  • Onboard 8MHz crystal oscillator
  • Integrated 120Ω termination resistor
  • CAN-H and CAN-L screw terminal connection
  • Dedicated interrupt output
  • Power and CAN status indicators on typical module versions
  • Compact PCB suitable for breadboard and embedded projects

Technical Specifications

Parameter Specification
CAN Controller MCP2515
CAN Transceiver TJA1050
CAN Standard CAN 2.0B
CAN Speed Up to 1 Mbps
CAN Frames Standard & Extended
Data Length 0–8 bytes
Host Interface SPI
SPI Pins SCK, SI/MOSI, SO/MISO, CS, INT
Crystal 8MHz
Termination 120Ω
Supply Voltage 5V DC
CAN Interface CAN-H / CAN-L
