Metal Detector Scanner Unassembled Kit DC 3V-5V

K-TECHNICS
In stock
KSh400.00

Secure checkout

Friendly support

Hassle-free returns

The DC 3V–5V Unassembled Metal Detector Kit is an entry-level DIY soldering project that detects metal objects at a short range. It uses an integrated printed circuit board (PCB) loop antenna rather than a wire coil and operates via a buzzer or LED indicator when metal is sensed.
Typical Specifications
  • Operating Voltage: 3V to 5V DC
  • Detection Range: 2 cm to 5 cm (depending on metal size)

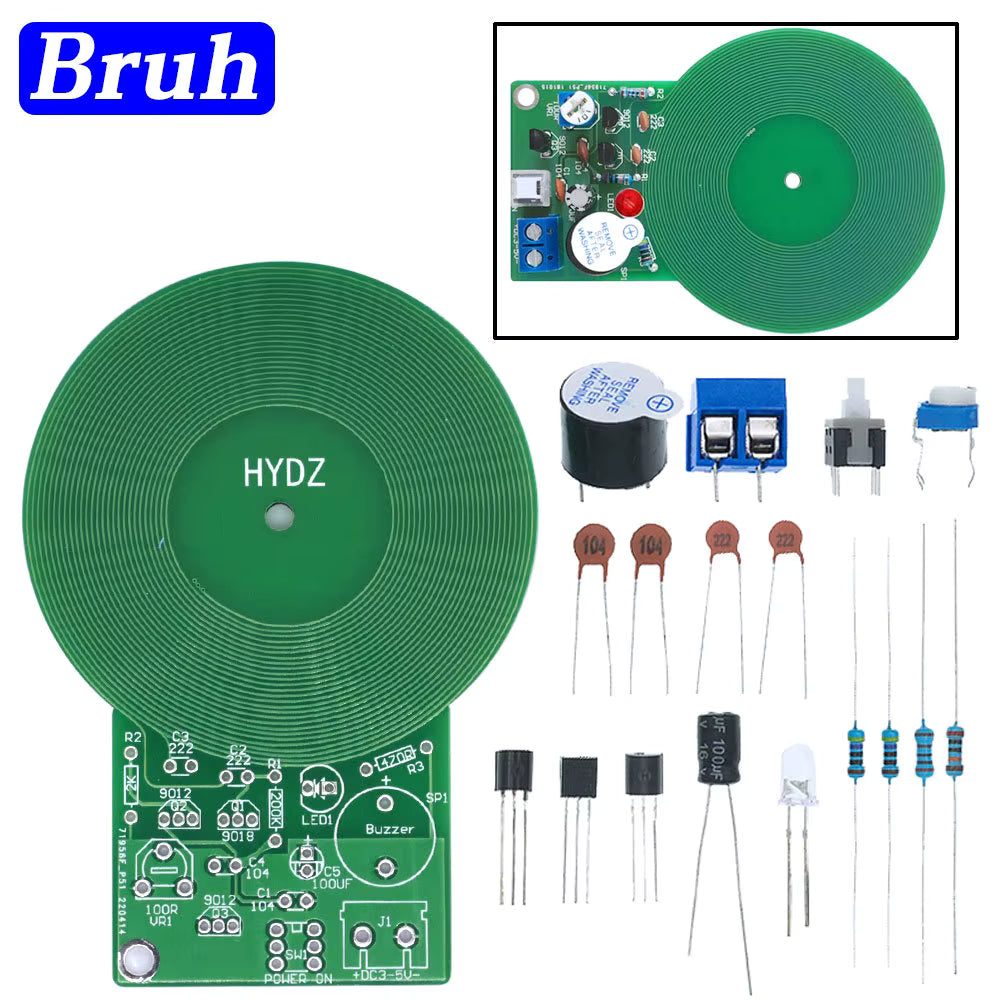

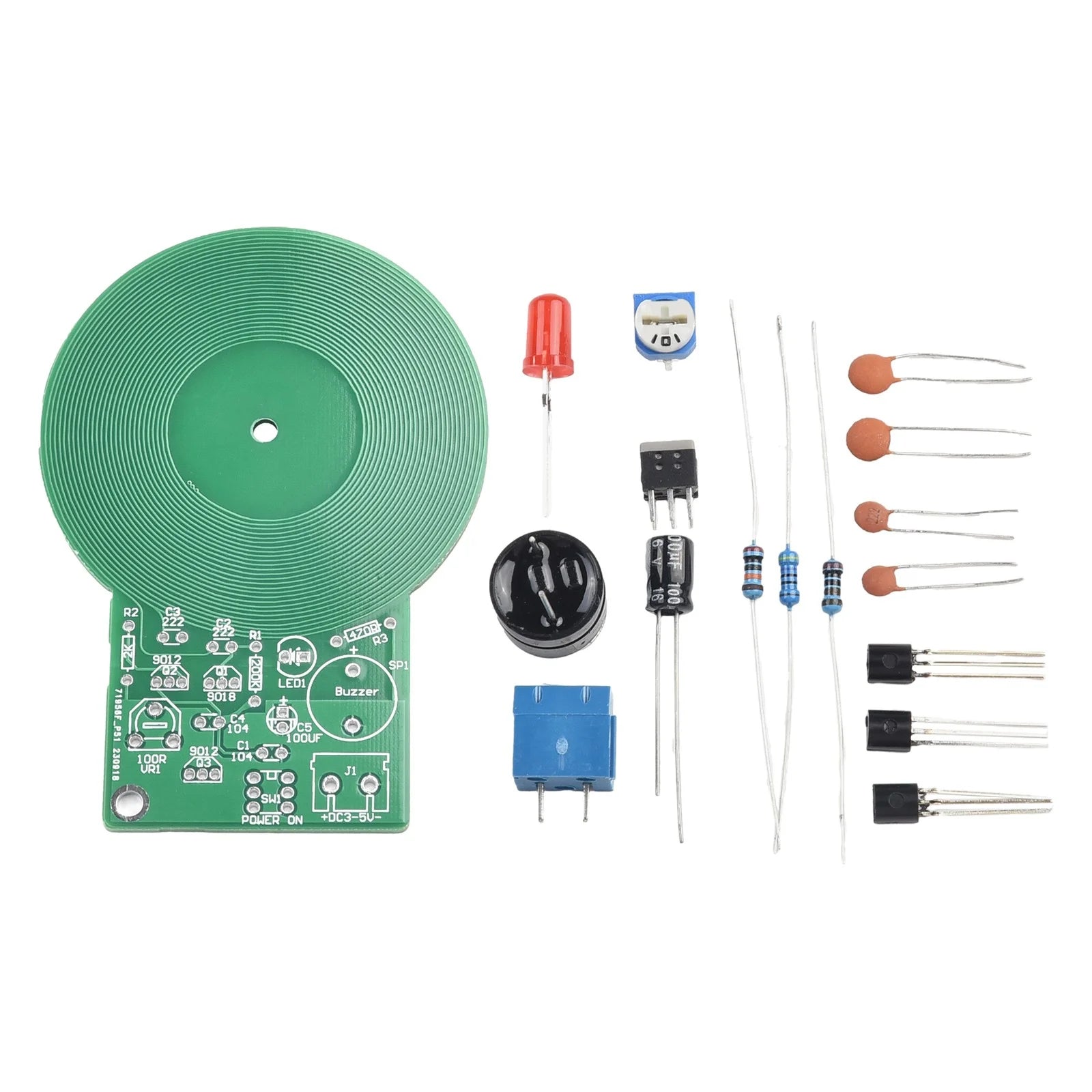

Kit Contents
These unassembled kits come with all necessary through-hole electronic components, which typically include:
  • PCB main board (with pre-printed coil traces)
  • Resistors, Capacitors, and Diodes
  • Transistors (often 9012, 9018, or 9013)
  • Buzzer (for the audio alarm)
  • Potentiometer (for sensitivity tuning)
  • Battery connecting wires
Assembly & Tuning Process
  1. Soldering: Insert and solder all electronic components onto the PCB, matching the component values to the printed labels.
  2. Powering: Connect the board to a 3V-5V power source (such as two AA batteries).
  3. Calibration: Turn on the power and adjust the onboard potentiometer until the buzzer stops making noise. Turn it slowly in the opposite direction until the sound just starts, then back it off until it is quiet.
  4. Testing: Pass the sensor board over metallic items like coins, phones, or keys. The buzzer should sound when metal is present.
