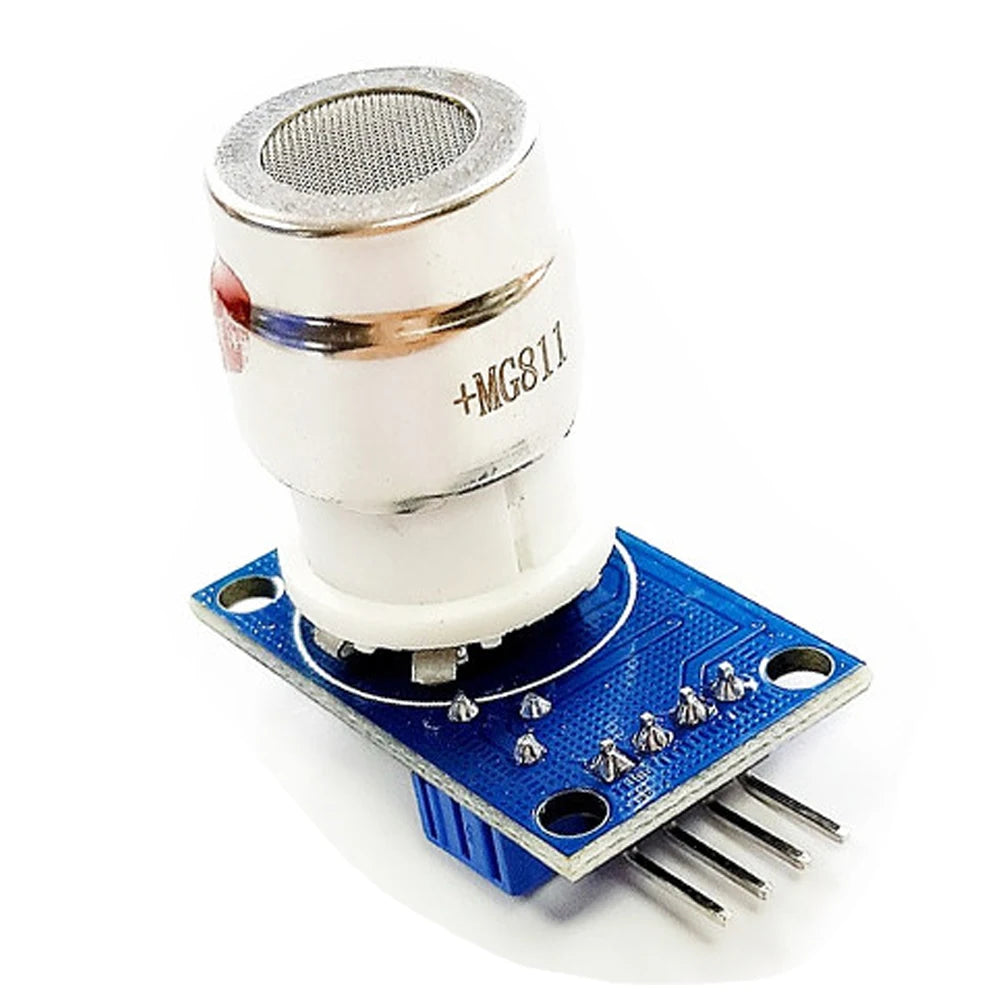

MG811 CO2 Sensor Carbon Dioxide Gas Sensor

K-TECHNICS
Out of stock
KSh6,000.00

Secure checkout

Friendly support

Hassle-free returns

The MG811 CO2 sensor is an electrochemical gas sensor designed to detect carbon dioxide (CO₂) concentration in the air, with a typical qualitative detection range of 350 to 10,000 ppm.
Unlike optical NDIR sensors, the MG811 functions as a solid electrolyte cell. It outputs a voltage that decreases as the CO₂ concentration increases.
Technical Specifications
  • Operating Voltage: Requires a strict 6.0V DC power supply for its internal preheater.
  • Current Consumption: High current consumption (~140–150mA) due to the continuous heating element.
  • Outputs: Dual signal capabilities featuring an Analog output and a TTL Digital level output.
  • Cross-Sensitivity: High selectivity to CO₂, with low cross-sensitivity to alcohol and carbon monoxide (CO).
  • Preheat Time: Requires a burn-in/preheat time to stabilize the chemical heating tank for accurate readings.

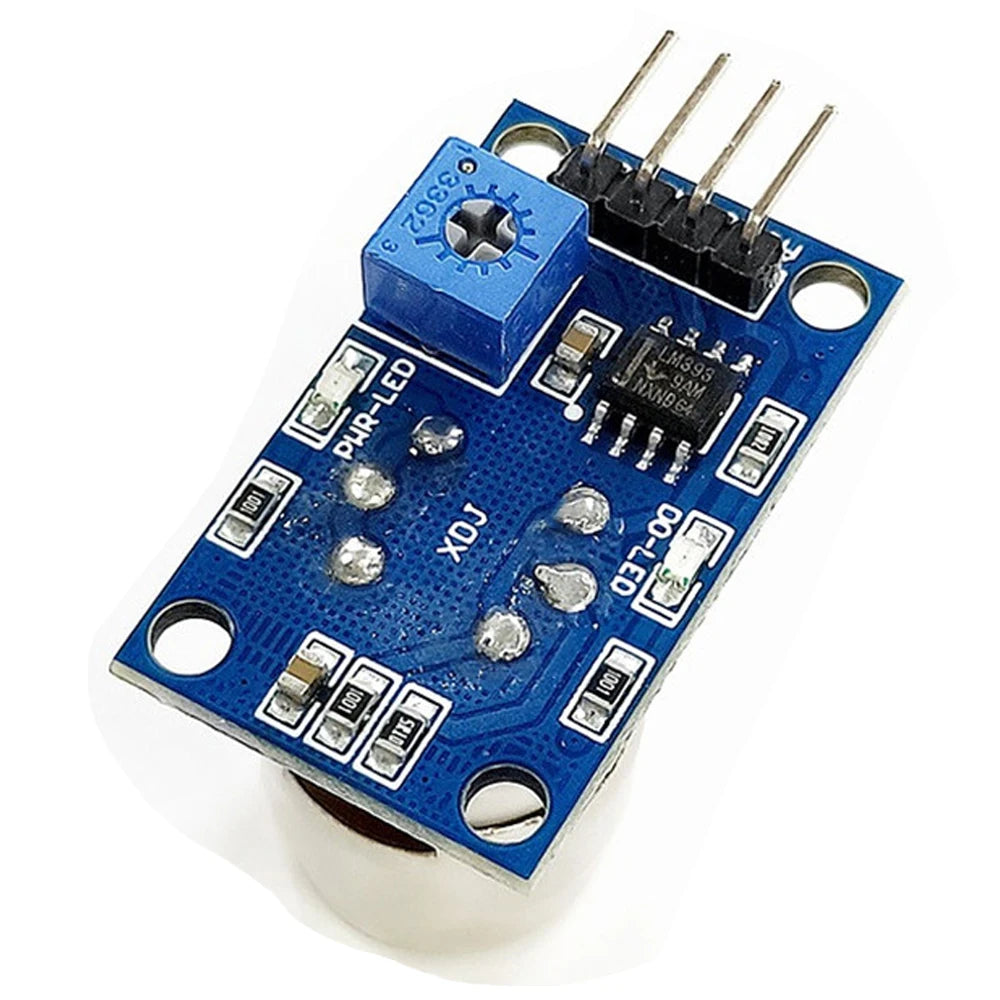

Module Pinout Guide
Standard breakout modules for the MG811 feature a 4-pin or 3-pin configuration:
  • VCC: Power input (6V optimal for heater performance).
  • GND: Ground connection.
  • AOUT (Analog): Output voltage corresponding to CO₂ parts-per-million levels.
  • DOUT (Digital): TTL output that triggers when gas limits exceed a user-defined threshold.
Typical Applications
  • Indoor air quality monitoring systems.
  • Greenhouse and agricultural environmental tracking.
  • Fermentation process controls.
