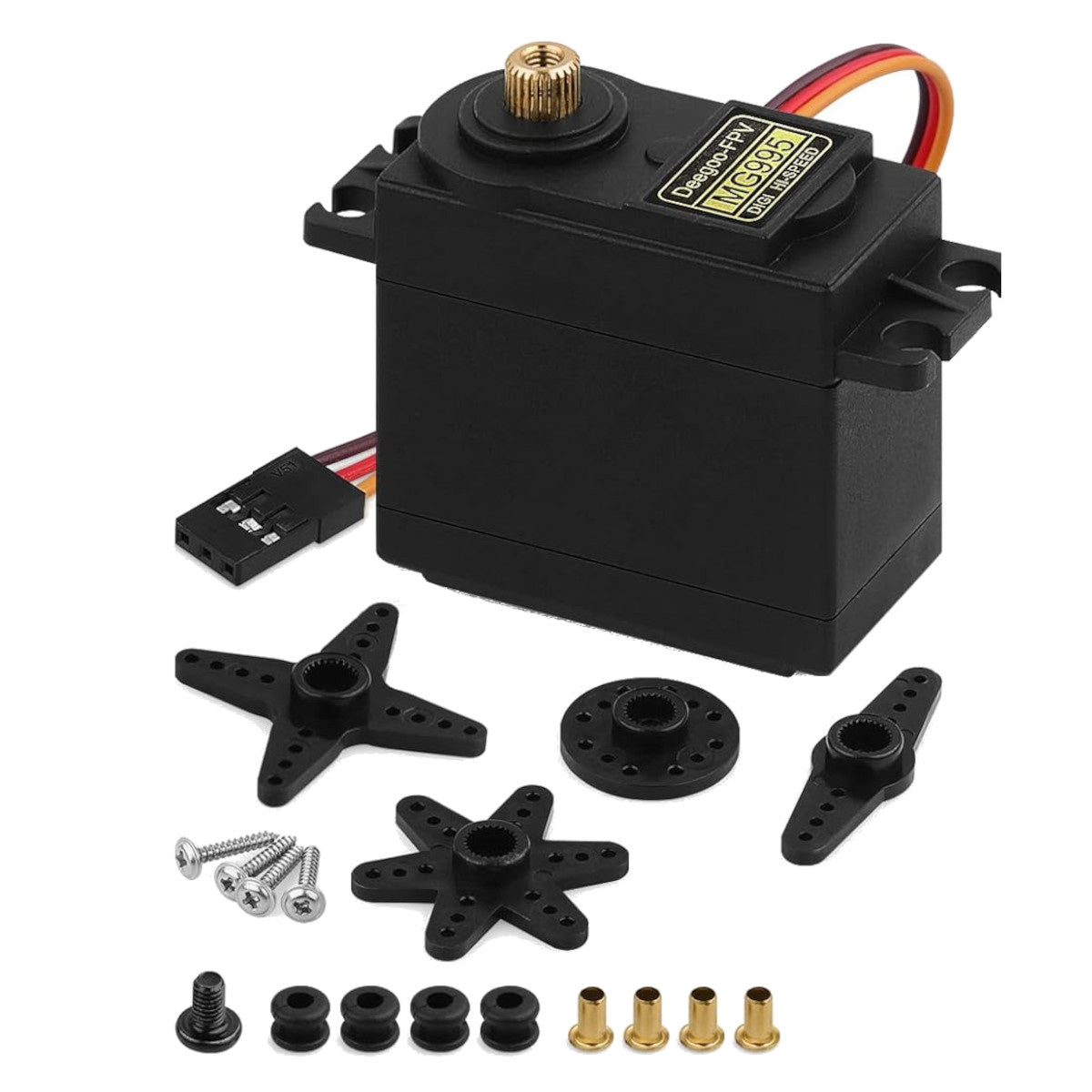

MG995 High-Speed Metal Gear Servo Motor (Standard Size)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

Built to withstand heavy physical abuse, the MG995 features a robust internal gearbox constructed entirely of brass and aluminum gears. This completely eliminates the dreaded "gear stripping" that happens when nylon servos are subjected to sudden shocks or heavy loads. Whether you are steering a heavy 1/10th scale RC buggy through the mud, building an automated pet feeder, or designing a panning mount for a heavy camera, this reliable workhorse provides the rugged mechanical strength you need.

Key Features & Functional Advantages

  • All-Metal Gearbox: Replaces brittle plastic internal components with tough brass and aluminum, ensuring the servo survives heavy mechanical loads and sudden physical impacts.

  • Massive Torque Output: Delivers a remarkable stall torque of up to 11 kg-cm (at 6.0V), providing raw physical power that micro-servos simply cannot match.

  • Standard 3-Pin Interface: Uses the universal PWM control standard (Power, Ground, Signal), making it instantly compatible with Arduino, ESP32, Raspberry Pi, and standard RC receivers.

  • High-Speed Operation: Geared to provide a rapid sweep speed of 0.16 seconds per 60 degrees (at 6.0V), ensuring quick response times for RC steering and robotic reflexes.

  • Exceptional Value: Provides heavy-duty, professional-grade torque at a price point that makes outfitting complex, multi-jointed robots highly affordable.

Perfect For

  • Budget Robotics: The perfect choice for building 4DOF or 6DOF robotic arms, bipedal walkers, and hexapods where you need to purchase multiple high-torque servos at once.

  • RC Vehicles: A rugged, inexpensive steering servo for 1/10th scale remote control cars, off-road buggies, and large RC boats.

  • Heavy Animatronics: Moving large Halloween props, automated doors, and heavy theatrical stage mechanisms.

  • Camera Pan/Tilt Arrays: Providing the muscular rotation required to pan heavy DSLRs, large solar panels, or directional antenna arrays.

Technical Specifications

  • Motor Model: MG995 (Standard 180-Degree Rotation)

  • Operating Voltage: 4.8 Volts to 7.2 Volts DC

  • Stall Torque (4.8V): 9.4 kg-cm (130.5 oz-in)

  • Stall Torque (6.0V): 11.0 kg-cm (152.8 oz-in)

  • Operating Speed (4.8V): 0.20 sec / 60 degrees (No load)

  • Operating Speed (6.0V): 0.16 sec / 60 degrees (No load)

  • Gear Material: All Metal (Brass & Aluminum)

  • Dead Band Width: 5 microseconds

  • Weight: 55 grams

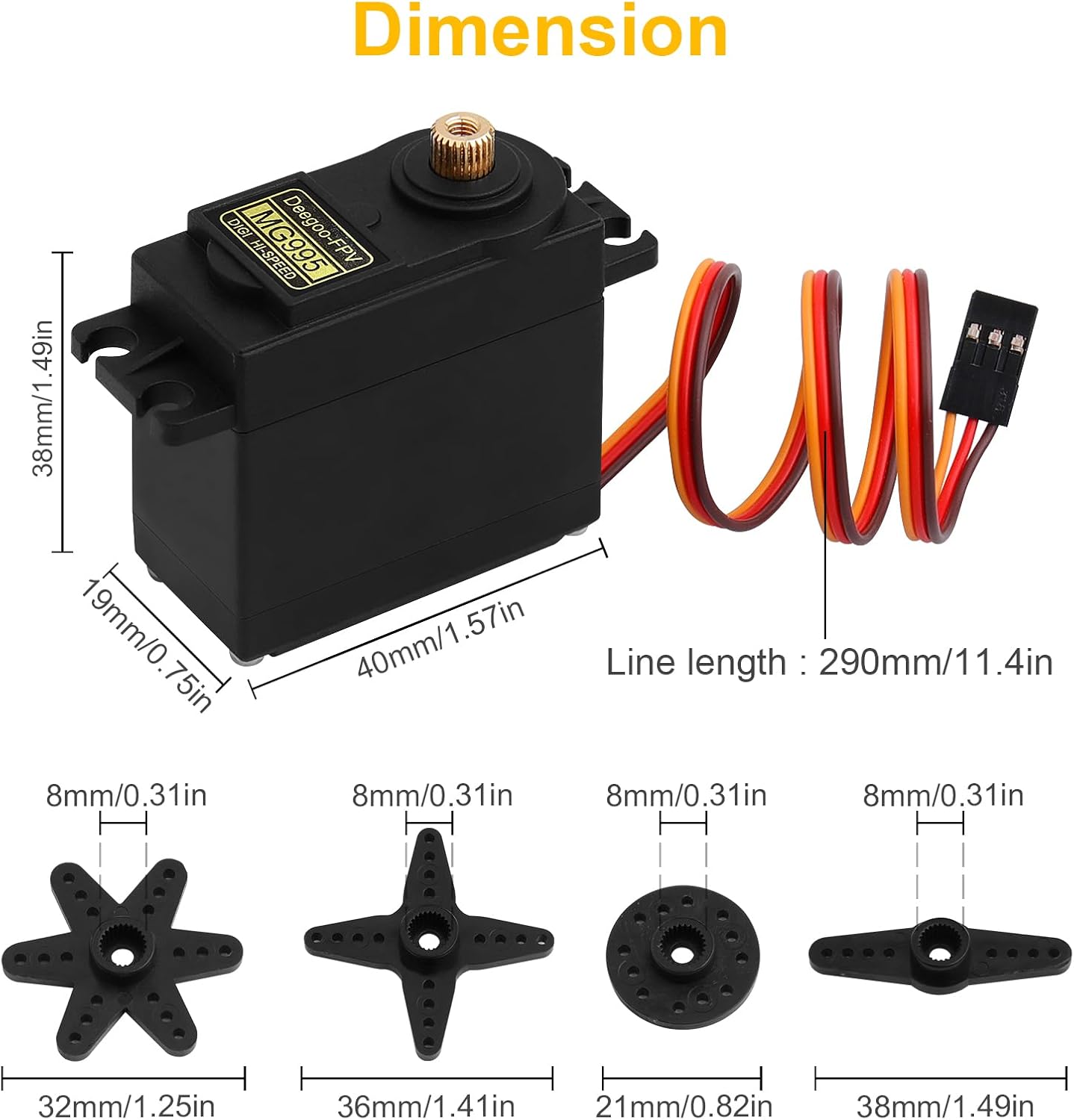

  • Dimensions: 40.7mm x 19.7mm x 42.9mm
