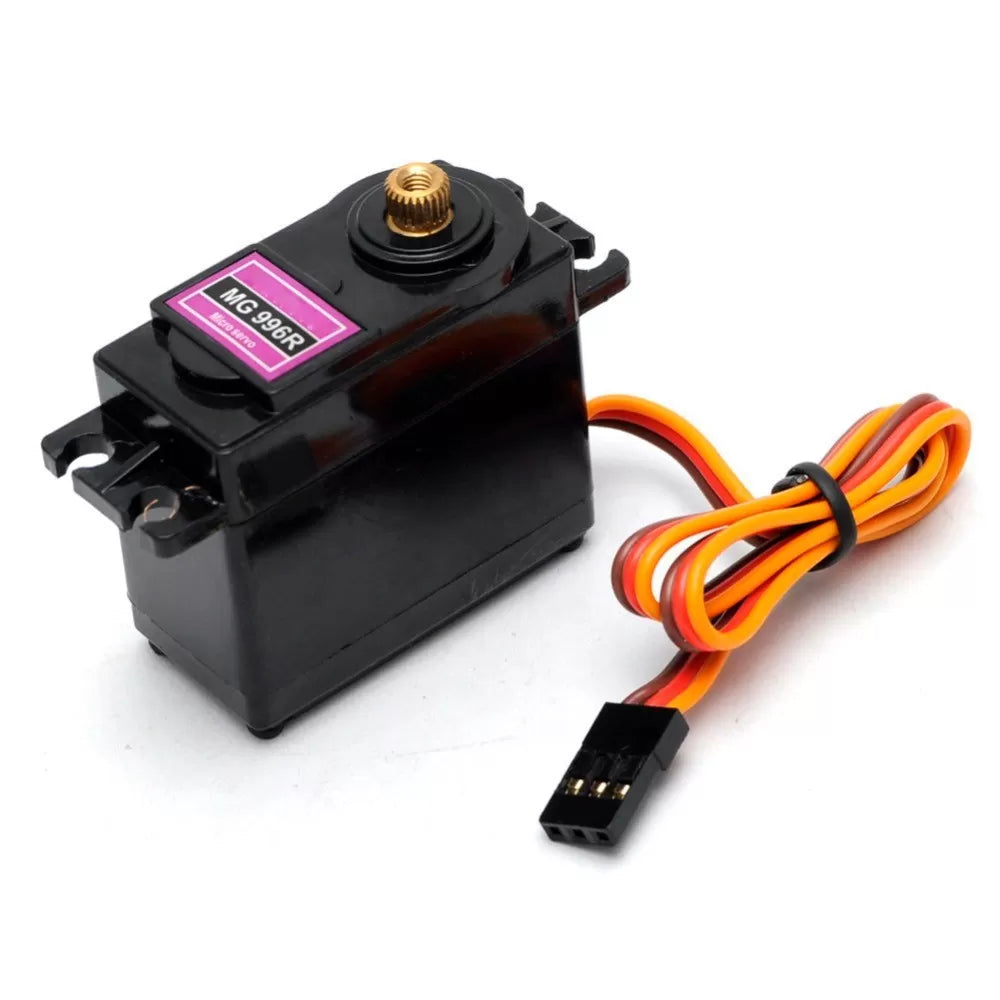

MG996R High-Torque Metal Gear Servo Motor (Standard Size)

K-TECHNICS
In stock
KSh1,100.00

Secure checkout

Friendly support

Hassle-free returns

What truly makes the MG996R a staple on the workbench is its incredibly robust mechanical design. The internal gearbox is constructed entirely of durable brass and aluminum gears, and the main output shaft is supported by double ball bearings to reduce friction and eliminate side-to-side play. Capable of outputting an impressive 11 kg-cm of stall torque when powered by a 6-Volt source, it provides the muscular, unwavering force needed to lift heavy robotic arms, articulate bipedal robots, and steer heavy 1/10th and 1/8th scale RC vehicles.

Key Features & Functional Advantages

  • All-Metal Gearbox: Replaces brittle nylon internal gears with tough brass and aluminum, completely eliminating the risk of stripping gears when lifting heavy loads or absorbing shocks.

  • Double Ball Bearing Design: The main output spline is stabilized by two smooth ball bearings, ensuring the shaft remains perfectly centered even under heavy lateral tension.

  • Massive Torque Output: Delivers a remarkable stall torque of up to 11 kg-cm (at 6.0V), providing the raw physical power needed for heavy-duty automation.

  • Upgraded Control Board: Features an improved internal IC that dramatically reduces hunting, provides better centering accuracy, and prevents the servo from jittering when holding a static position.

  • Universal Compatibility: Uses a standard 3-pin PWM interface (Power, Ground, Signal) that easily connects to Arduino, Raspberry Pi, ESP32, and standard RC receivers.

Perfect For

  • Custom Robotic Arms: Providing the reliable, high-torque lifting capacity required for the shoulder, elbow, and base rotation joints of large 3D-printed robotic manipulators.

  • RC Vehicles: The go-to, rugged steering servo for 1/10th and 1/8th scale remote control cars, buggies, and heavy monster trucks that take a beating on the dirt track.

  • Animatronics & Props: Moving heavy masks, automated jaw mechanisms, and large mechanical wings in custom cosplay and Halloween props.

  • Camera Pan/Tilt Systems: Providing smooth, stable rotation for heavy DSLR or multi-sensor tracking platforms.

Technical Specifications

  • Motor Model: MG996R (Standard 180-Degree Rotation)

  • Operating Voltage: 4.8 Volts to 7.2 Volts DC

  • Stall Torque (4.8V): 9.4 kg-cm (130.5 oz-in)

  • Stall Torque (6.0V): 11.0 kg-cm (152.8 oz-in)

  • Operating Speed (4.8V): 0.19 sec / 60 degrees (No load)

  • Operating Speed (6.0V): 0.17 sec / 60 degrees (No load)

  • Gear Material: All Metal (Brass & Aluminum)

  • Bearing Type: Double Ball Bearing

  • Weight: 55 grams

  • Dimensions: 40.7mm x 19.7mm x 42.9mm
