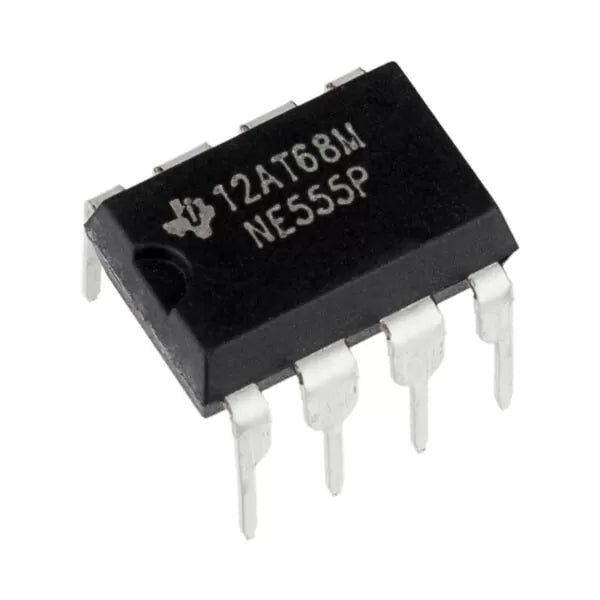

NE555 Precision Timer IC (8-Pin DIP Package)

If there is one single integrated circuit that every electronics engineer, maker, and hobbyist must have in their parts bin, it is the legendary NE555 Timer. This 8-pin, through-hole (DIP) chip is arguably the most famous IC in history. It is an incredibly robust, highly stable controller capable of producing accurate timing delays and perfectly oscillating electrical pulses. Whether you are building a simple blinking LED circuit for a school project or designing a custom pulse-width modulation (PWM) generator to control motor speeds, the 555 timer is the foundational building block.

What makes the NE555 so universally beloved is its sheer flexibility. It can be easily wired into three distinct modes: Astable (acting as an oscillator to generate continuous square waves), Monostable (acting as a "one-shot" timer to create a single pulse of a specific duration), or Bistable (acting as a basic flip-flop memory state). Furthermore, unlike delicate modern microcontrollers that can barely output 20mA from a GPIO pin, the NE555's output pin can source or sink up to a massive 200mA. This means it can drive high-power LEDs, piezo buzzers, and small mechanical relays directly, without needing an external transistor.

Key Features & Functional Advantages:

• Three Operating Modes: Easily configured as an oscillator, a one-shot delay timer, or a flip-flop switch simply by changing the arrangement of a few external resistors and capacitors.

• High Output Drive: Capable of sourcing or sinking up to 200mA, allowing it to directly power small inductive and resistive loads without additional amplification logic.

• Wide Voltage Range: Operates flawlessly anywhere from 4.5V to 15V, making it fully compatible with 5V TTL logic, standard 9V batteries, and 12V automotive systems.

• Incredible Temperature Stability: Maintains highly accurate timing (typically within 0.005% per °C) regardless of environmental temperature fluctuations.

• Breadboard Native: The standard 0.1-inch (2.54mm) pitch 8-pin DIP package drops perfectly into any solderless breadboard or standard perfboard for rapid, hassle-free prototyping.

Perfect For:

• Basic Signal Generation: The absolute best way to generate clean, tunable square waves without having to write a single line of C++ code for a microcontroller.

• Custom PWM Controllers: Excellent for building analog Pulse-Width Modulation circuits to control the speed of DC motors (pairing perfectly with an L298N driver) or dimming LED strips.

• Switch Debouncing: Used heavily in custom logic circuits to "clean up" the noisy electrical signals generated by mechanical pushbuttons and limit switches.

• Audio Synthesizers: The classic core component for building DIY "Atari Punk Consoles" and generating retro, 8-bit square wave audio tones.

Technical Specifications:

• Operating Supply Voltage (Vcc): 4.5V to 15V DC

• Maximum Output Current: 200 mA (Source or Sink)

• Maximum Operating Frequency: > 500 kHz

• Timing Range: Microseconds to Hours (Dependent on external RC values)

• Logic Compatibility: TTL Compatible (When operated at 5V)

• Package / Case: 8-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
