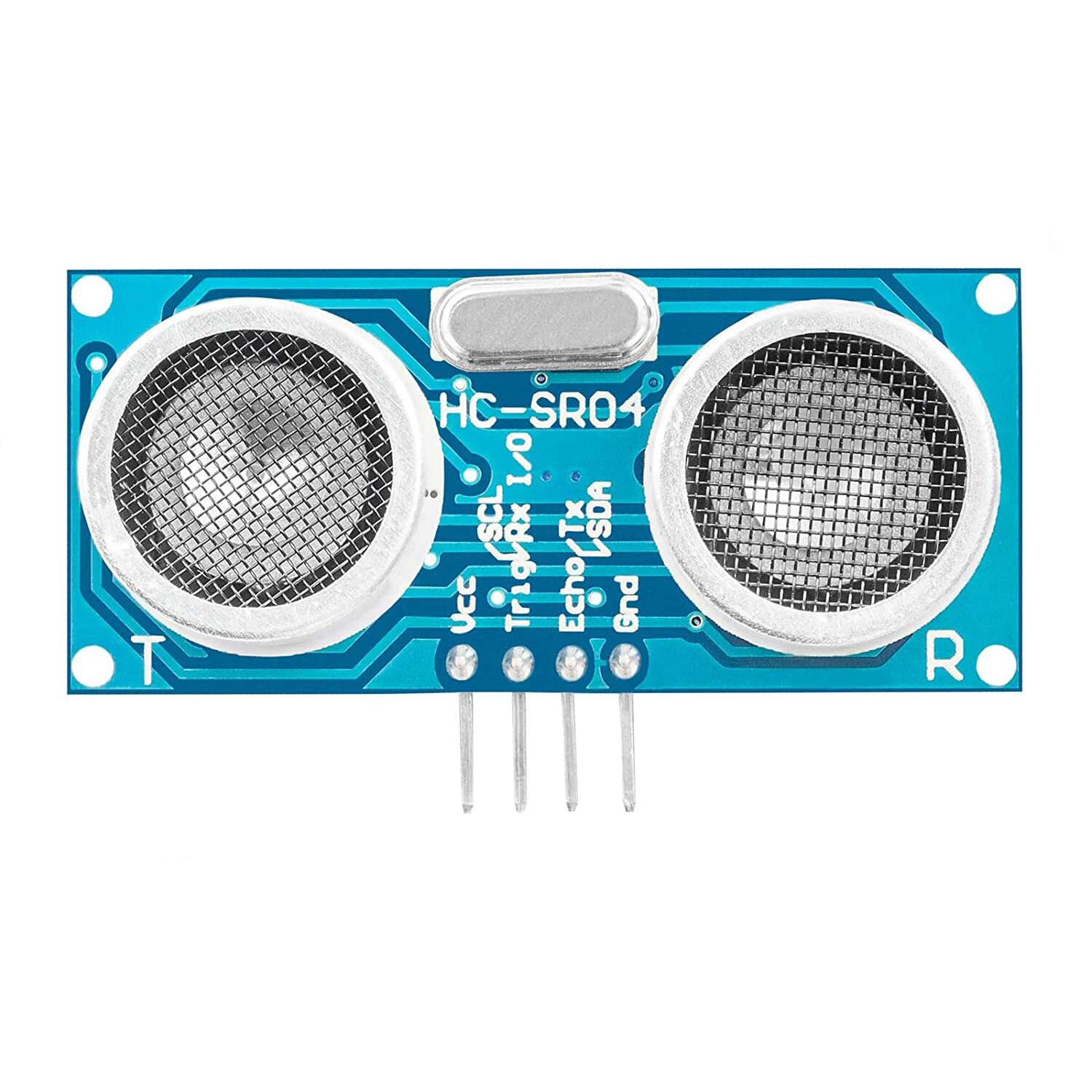

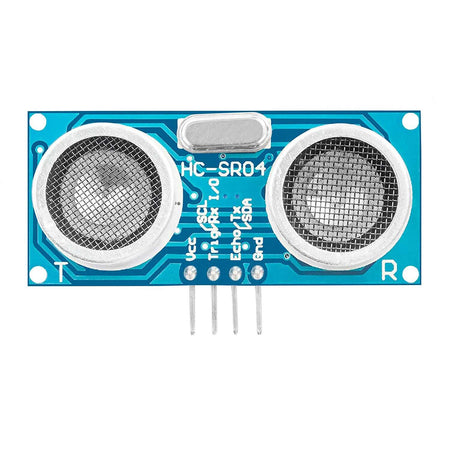

New 3.3-5V HC-SR04 ultrasonic Distance Sensor

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

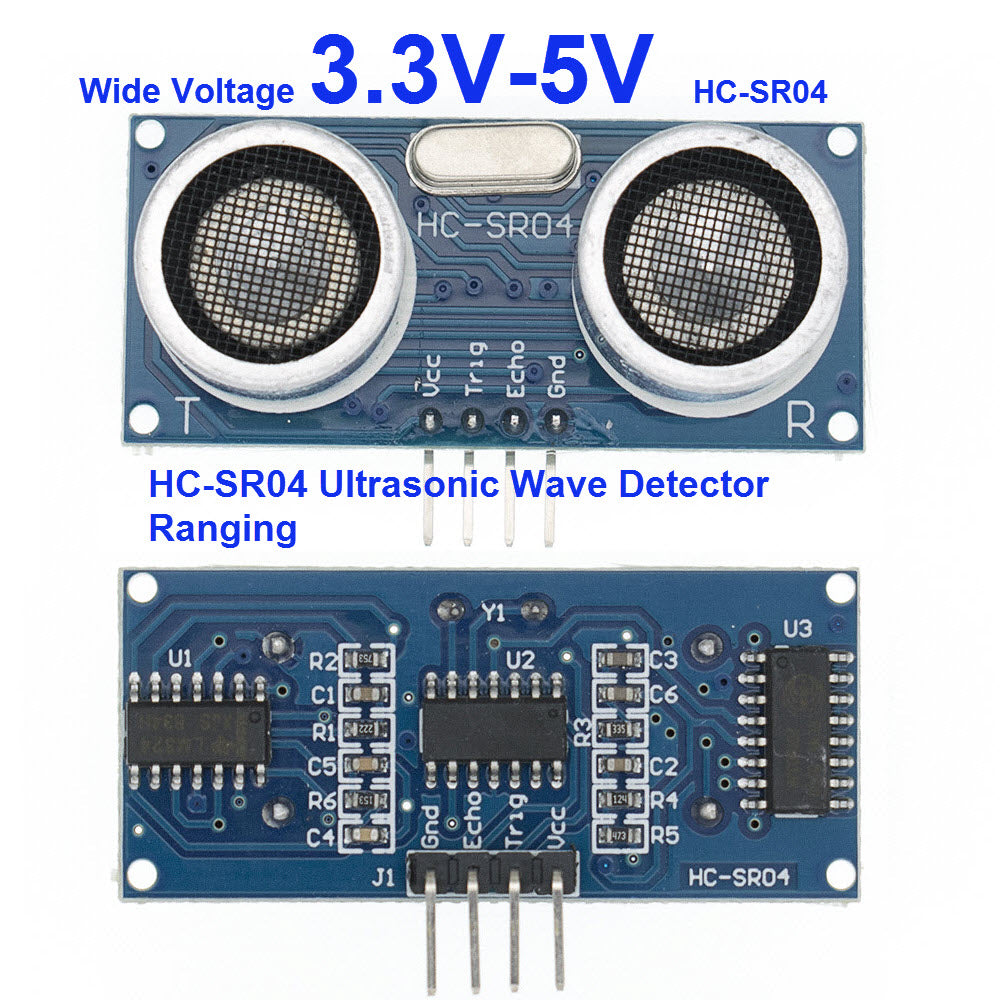

The new dual-voltage HC-SR04 ultrasonic distance sensor operates natively on a wide voltage range of 3.3V to 5V DC. This major upgrade completely eliminates the need for complex, manual voltage dividers when interfacing the sensor with modern 3.3V microcontrollers like the Raspberry Pi, ESP32, or Arduino Nano Every.
Technical Specifications
  • Operating Voltage: 3.3V to 5V DC
  • Detection Range: 2 cm to 400 cm (4 meters)
  • Measurement Precision: Up to 2 mm – 3 mm accuracy
  • Measuring Angle: Narrow 15° beam for focused detection
  • Working Current: Low power consumption at ~15 mA
  • Ultrasonic Frequency: 40 kHz
  • Dimensions: Standard compact 45 x 20 x 15 mm footprint
Advantages Over the Classic 5V Version
  • Direct 3.3V Logic: Safe connection to 3.3V IO pins without risk of frying your board.
  • No Voltage Dividers: You no longer need to splice resistors into the Echo trace line.
  • True Drop-In Replacement: Fits exact same mechanical brackets as older models.
Standard 4-Pin Interface
  • VCC: Power supply input (3.3V or 5V).
  • Trig (Trigger): Input pin. Pull HIGH for 10 microseconds to start a measurement.
  • Echo: Output pin. Stays HIGH for the exact duration of the sound wave's round trip.GND: Ground connection.
