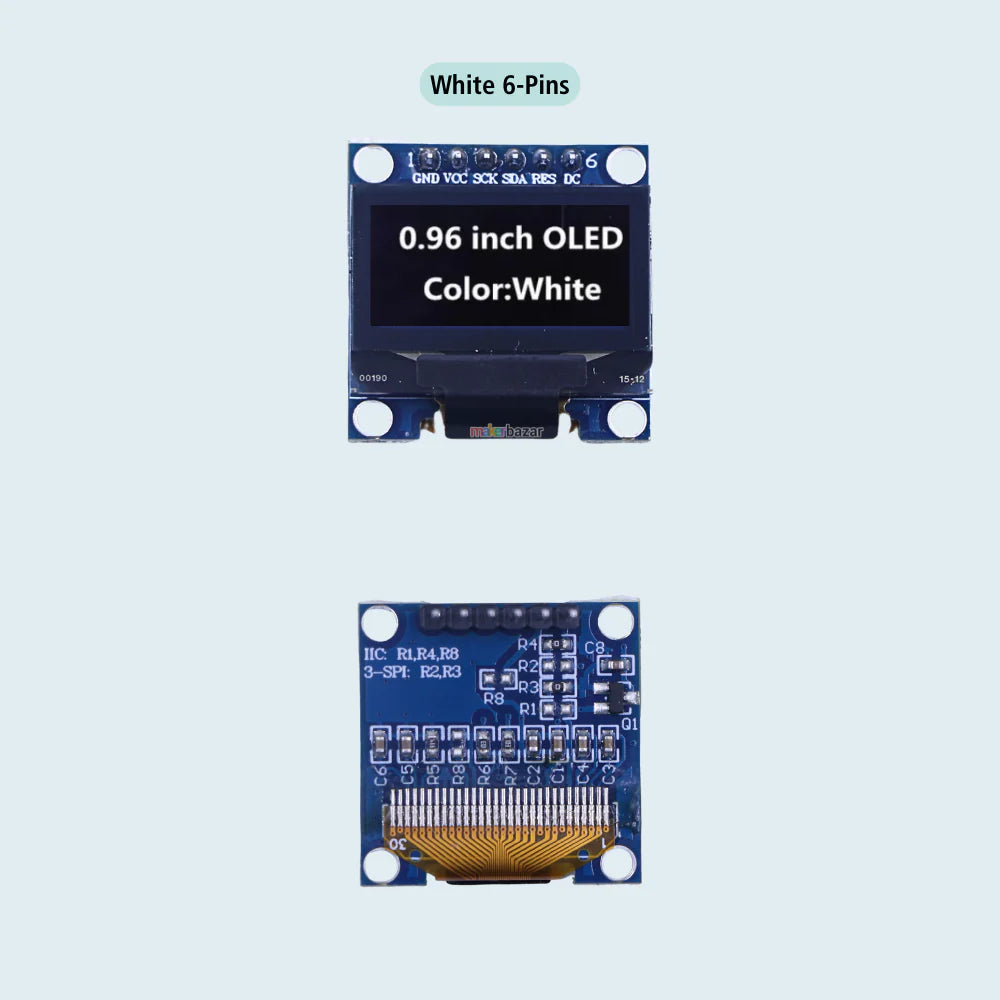

OLED 0.96″ Inch White SPI LCD Module 6 pin

K-TECHNICS
Out of stock
KSh600.00

Secure checkout

Friendly support

Hassle-free returns

The 0.96″ White SPI 6-Pin OLED Display Module is a compact, high-contrast monochrome screen driven by the popular SSD1306 controller chip. Unlike traditional backlit LCD screens, this self-illuminating display lights up individual pixels to achieve true blacks, exceptional energy efficiency, and a viewing angle wider than 160°.
Core Specifications
  • Resolution: 128 × 64 pixels.
  • Display Color: Bright white text/graphics on a pitch-black background.
  • Driver IC: SSD1306 Chip.
  • Operating Voltage: 3.3V to 5V (logic compatible with both without level shifters).
  • Protocol: 4-wire Serial Peripheral Interface (SPI) for rapid data refresh rates.
  • Dimensions: Approximately 27.3mm × 27.8mm.

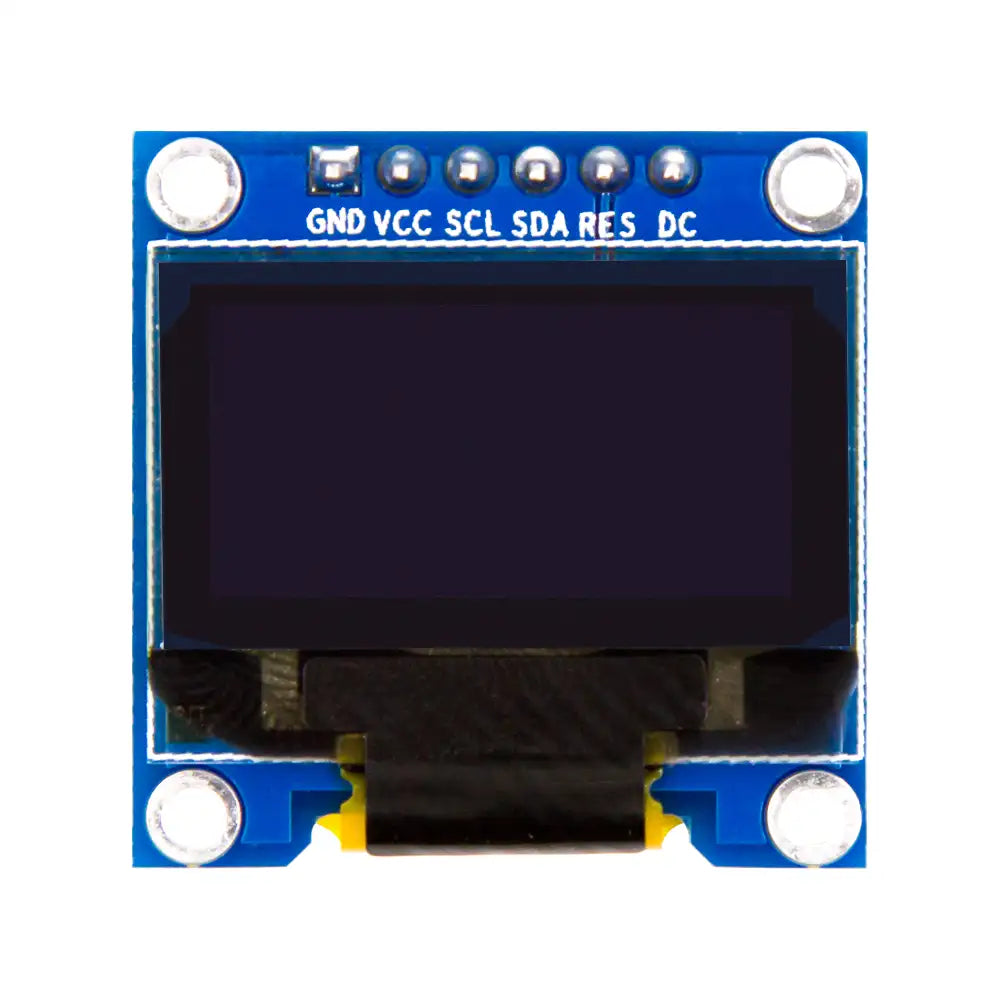

Pinout Mapping
The 6-pin layout combines power rails with hardware SPI data lines and control signals:
Pin Label  Pin Function Description
GND Ground Power return line.
VCC Power Supply Input voltage (3.3V - 5V).
D0 (SCK) Serial Clock SPI clock line.
D1 (MOSI) Serial Data Master Out Slave In data input.
RES (RST) Reset Hardware reset pin.
DC (A0) Data / Command Dictates if sent byte is instruction or graphics data.
Note: Because this is a cost-effective 6-pin variant, it lacks a dedicated CS (Chip Select) pin. The CS is tied internally to ground, meaning the module is permanently selected and expects to be the sole device on that SPI hardware bus.
