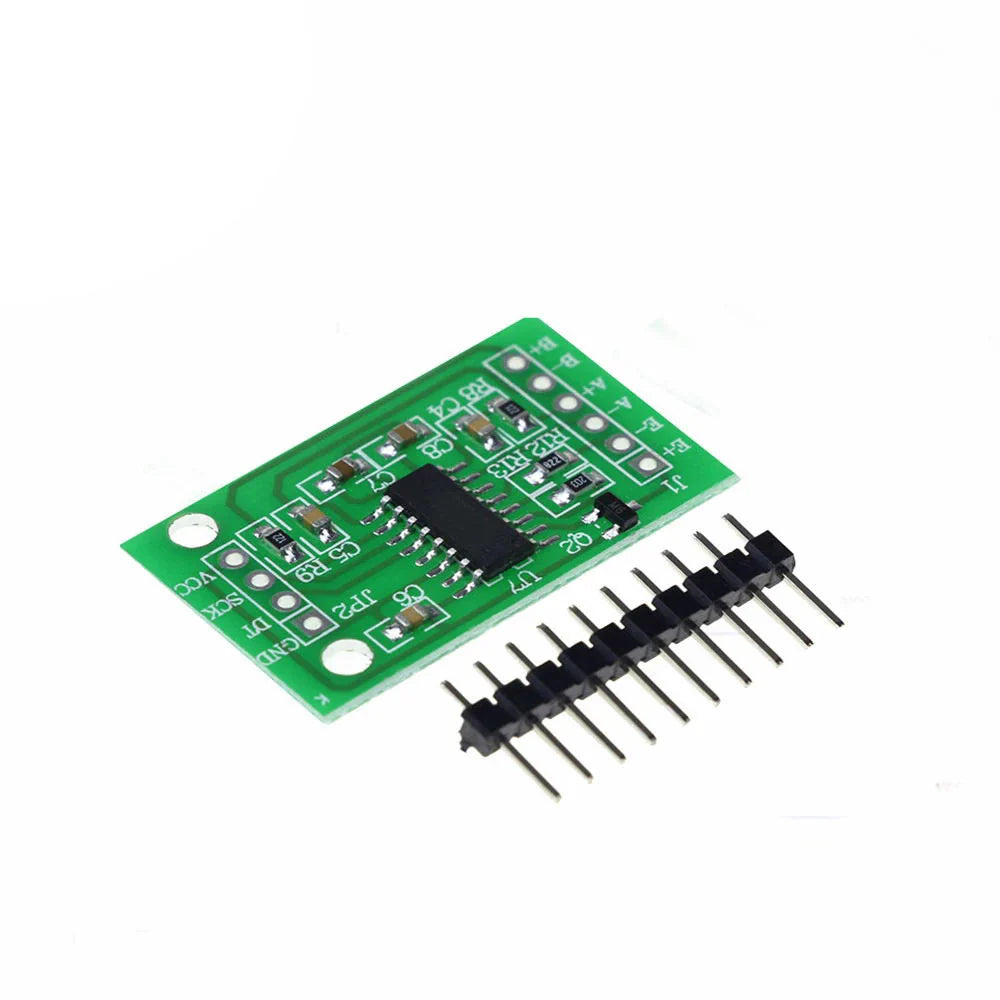

Pressure Sensor HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

The HX711 is a high-precision, 24-bit analog-to-digital converter (ADC) designed specifically for weigh scales and industrial control applications to interface directly with a bridge sensor.
Key Specifications
  • Resolution: 24-bit delta-sigma ADC.
  • Channels: Two selectable differential inputs.
  • Gain Options: 32, 64, or 128 for Channel A; 64 for Channel B.
  • Data Rate: Selectable 10 SPS (samples per second) or 80 SPS.
  • Voltage: 2.6V to 5.5V supply range.

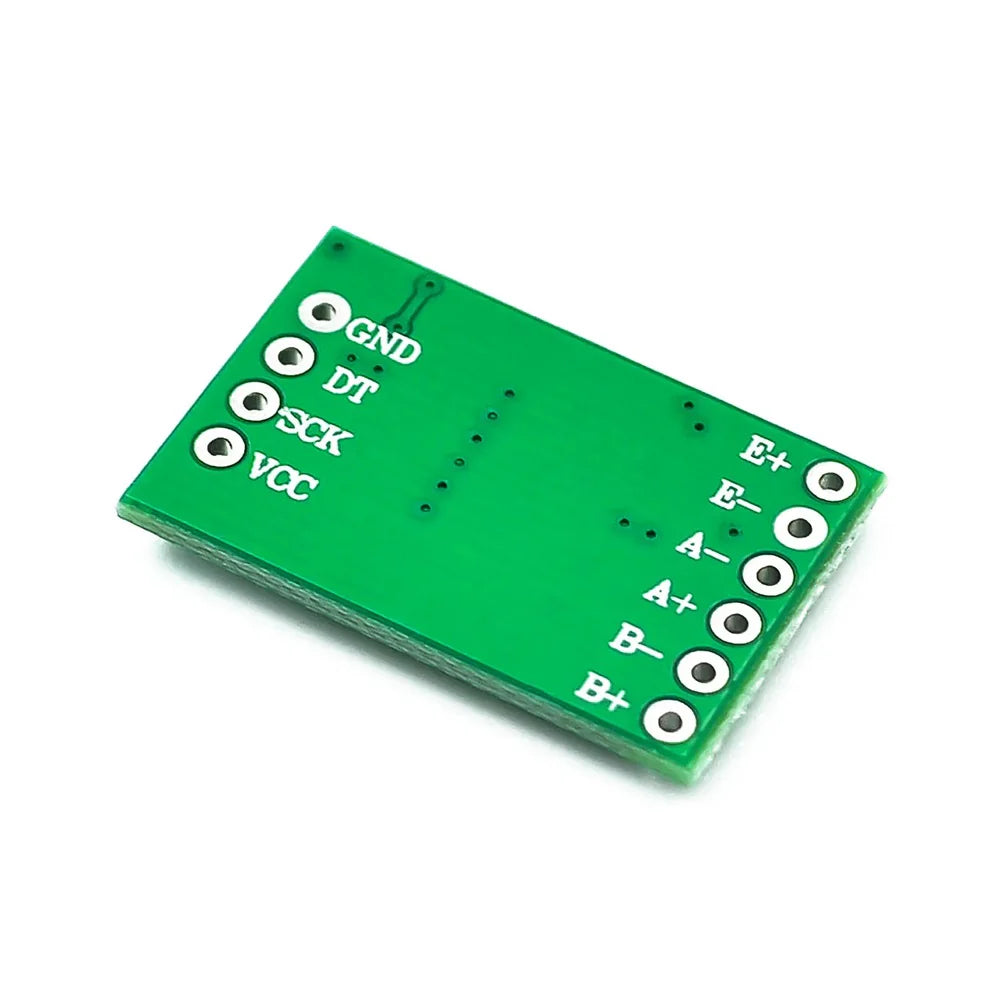

Pinout Configuration
  • VCC / VDD: Power supply input.
  • GND: Ground connection.
  • DT (DATA): Serial data output pin.
  • SCK (CLOCK): Serial clock input pin.
  • E+ / E-: Load cell excitation power.
  • A+ / A-: Channel A differential input.
  • B+ / B-: Channel B differential input.
Common Uses
  • Electronic Scales: Kitchen, luggage, and retail scales.
  • Industrial Automation: Material tank level measurement.
  • Smart Agriculture: Automated livestock weighing platforms.
  • DIY Electronics: Arduino and Raspberry Pi weight-sensing projects.
