PT Pan-and-Tilt Assembly Bracket Kit for SG90/MG90S Micro Servos

Constructed from durable, lightweight matte ABS plastic, this bracket kit is engineered to minimize overall weight, ensuring that tiny micro servos can actuate the mechanism effortlessly without drawing excessive current or straining their internal gears. It features specialized mounting platforms specifically tailored to hold an HC-SR04 ultrasonic distance sensor, a miniature FPV camera, or a small laser diode. Whether you are building an object-tracking camera gimbal or a maze-navigating rover that needs to look before it turns, this affordable mechanical bracket removes the hassle of custom fabricating your own hardware mounts.

Key Features & Functional Advantages

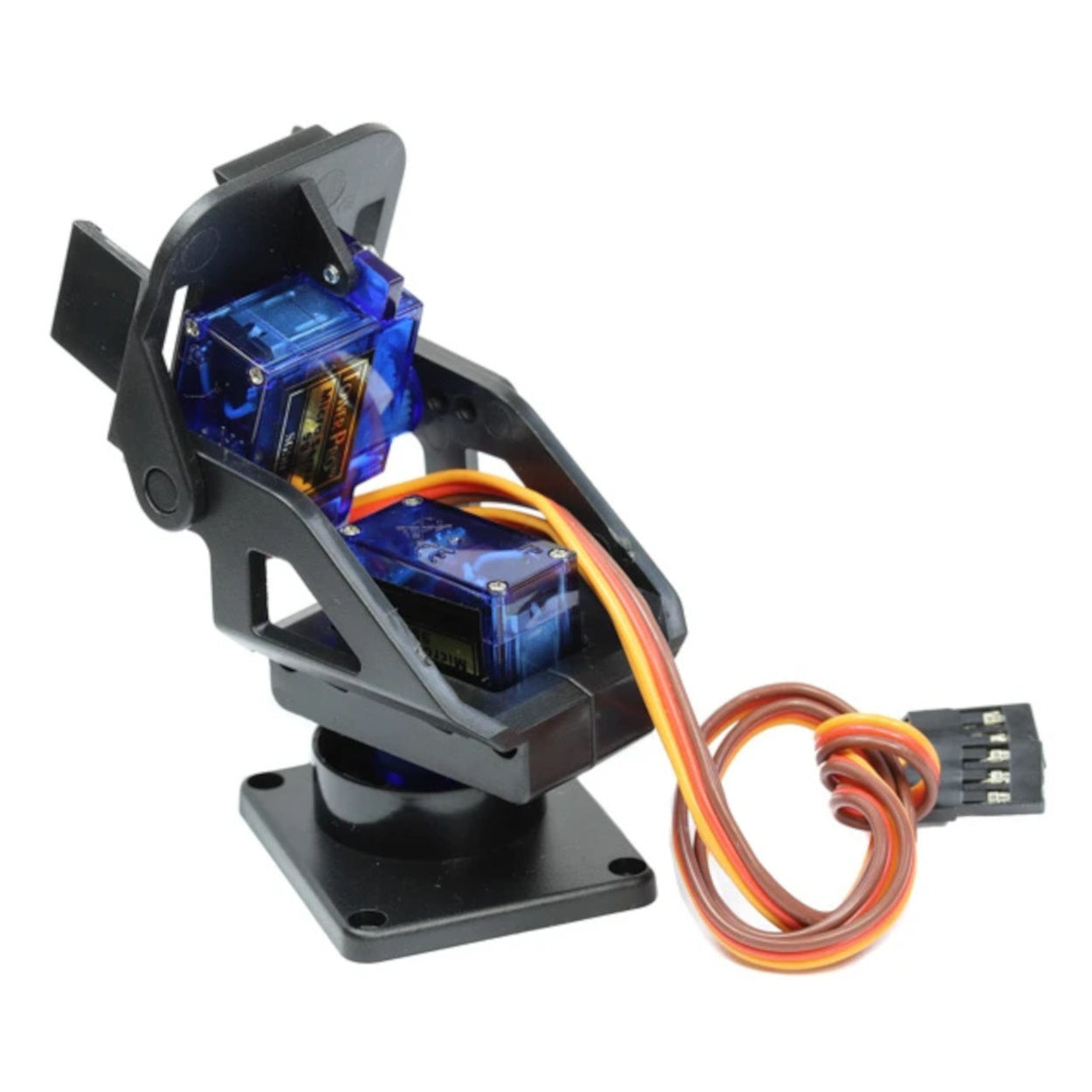

• Dual-Axis Freedom: Allows for a full range of panning (left-to-right) and tilting (up-and-down) motion when driven by two standard micro servos.

• Optimized for Micro Servos: Precision-molded to fit the standard dimensions of SG90, MG90S, and other equivalent 9g structural servo bodies perfectly.

• Ultra-Lightweight Material: Made from high-grade, structurally sound plastic that adds virtually no inertia, protecting your servo gearboxes from premature wear.

• Dedicated Sensor Mounting: Features built-in screw holes and brackets specifically spaced to accommodate popular hobbyist sensors like the HC-SR04 ultrasonic module.

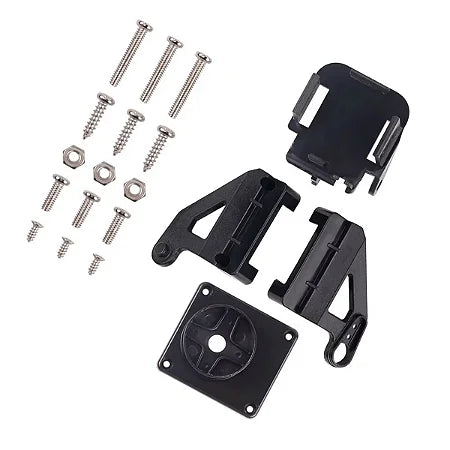

• Complete Mechanical Hardware: Includes all the necessary specialized self-tapping screws and mounting components required to link the brackets and servo horns together smoothly.

Perfect For

• Obstacle Avoidance Rovers: Mounting an ultrasonic distance sensor to the front of a robot chassis so it can look left and right to calculate the optimal path forward.

• DIY FPV & Security Cameras: Creating a panning and tilting base for lightweight wireless camera modules used in drone ground stations or custom smart-home monitoring systems.

• Face & Object Tracking: Connecting to an OpenCV-powered Raspberry Pi setup to dynamically track faces, colors, or moving targets in real time.

• Laser Turrets & STEM Projects: Building interactive, code-driven laser pointers or pointing arrays for classroom demonstrations and student design competitions.

Technical Specifications

• Product Type: 2-Axis Pan-and-Tilt Mechanical Bracket Kit

• Compatible Motors: SG90, MG90S, and similar 9g-14g micro servos (Servos not included)

• Material: High-Impact ABS Plastic

• Color: Matte Black

• Axis Configuration: X-Axis (Pan) and Y-Axis (Tilt)

• Supported Add-ons: Pre-molded cutouts for HC-SR04 modules and standard miniature camera boards

• Assembled Weight: Approximately 15 grams (excluding servos)
