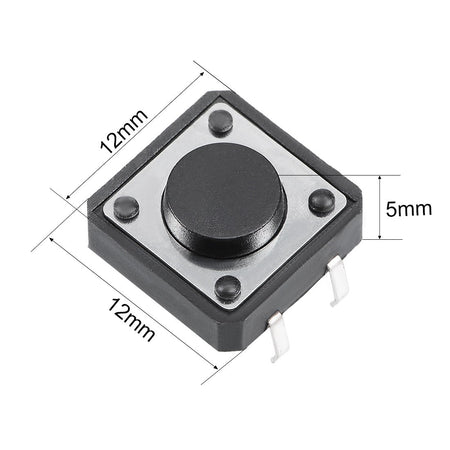

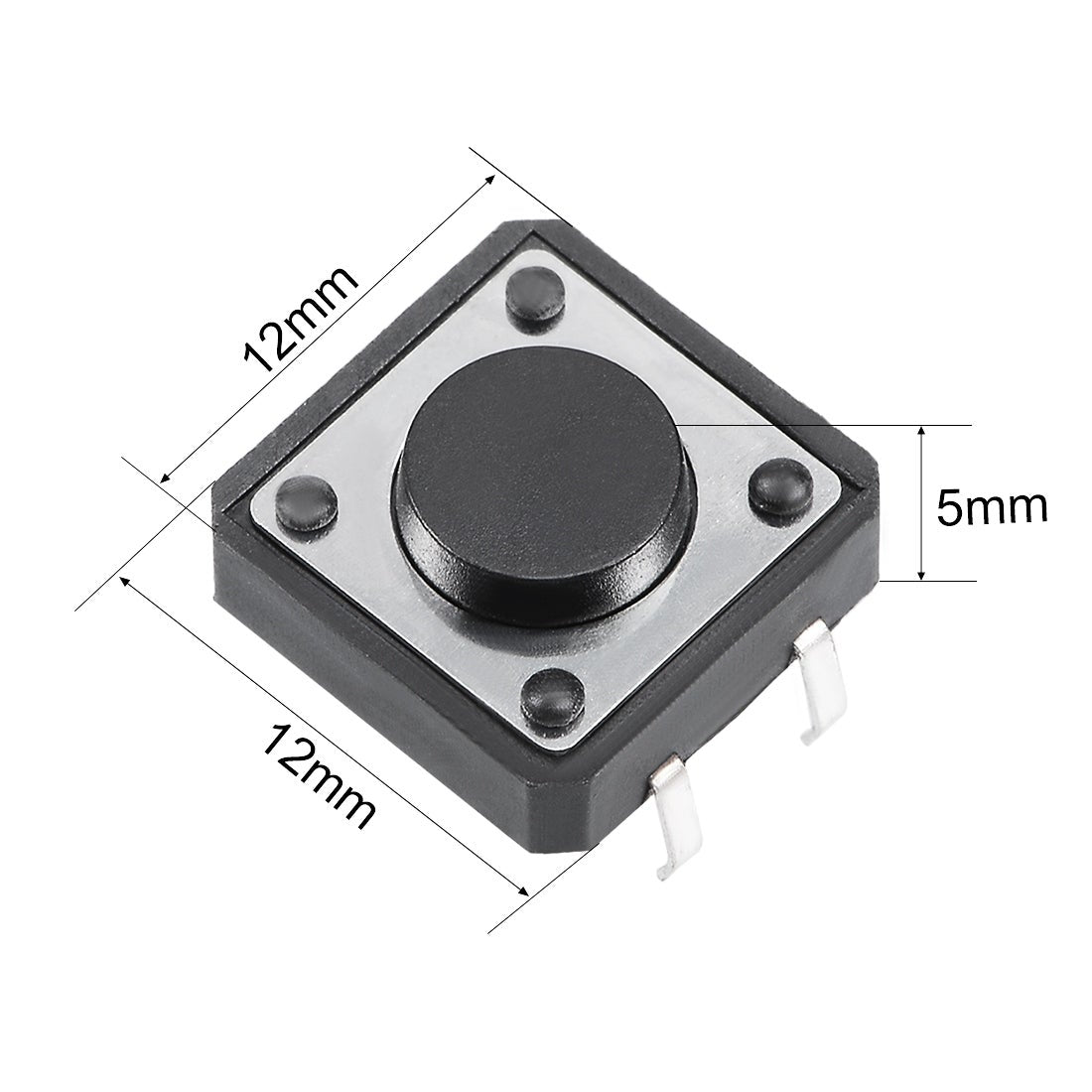

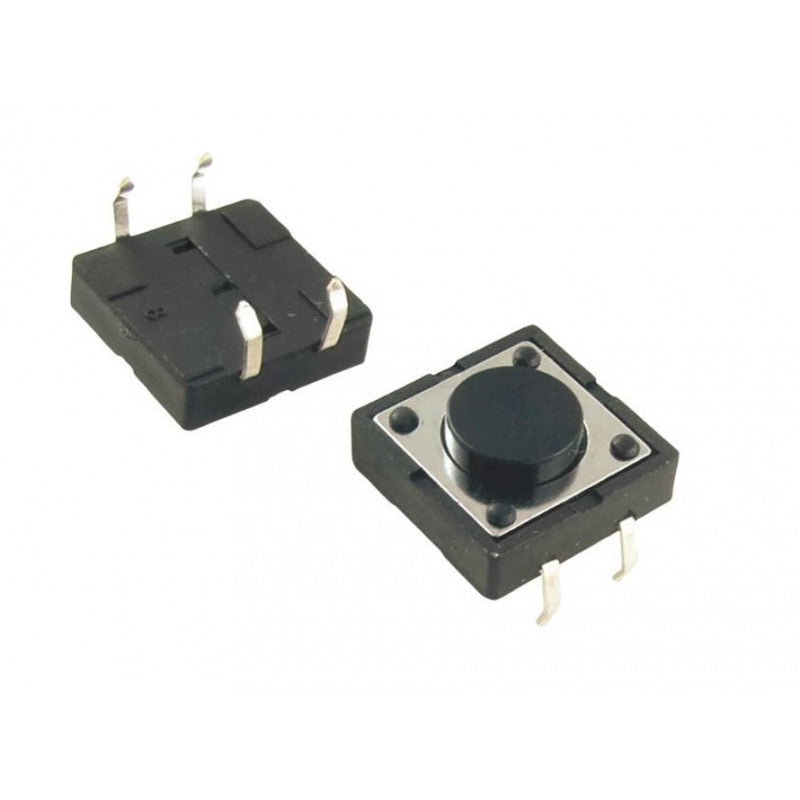

Push Button Switch – 12mm – 4 Pin Tactile / Micro Switch

K-TECHNICS
In stock
KSh10.00

Secure checkout

Friendly support

Hassle-free returns

Key Features

  • Compact 12mm x 12mm x 5mm design
  • 4-pin through-hole configuration for secure PCB mounting
  • Momentary action: normally open (NO), closes when pressed
  • High durability with up to 300,000 operating cycles
  • Strong tactile response with operating force of 3–5N
  • Suitable for automotive-grade and industrial applications

Specifications

  • Body Material: Plastic
  • Operating Voltage: 12V
  • Operating Current: 50mA
  • Pin Count: 4-pin
  • Switch Type: Push Button / Tactile Micro Switch
  • Contact Material: Brass
  • Contact Resistance: 50mΩ
  • Insulation Resistance: 100MΩ
  • Operating Temperature: -20°C to +70°C
  • Operation Force: 3.0N – 3.6N (up to 5N range)
  • Dimensions: 12mm (L) × 12mm (W) × 5mm (H)
  • Weight: 1g
