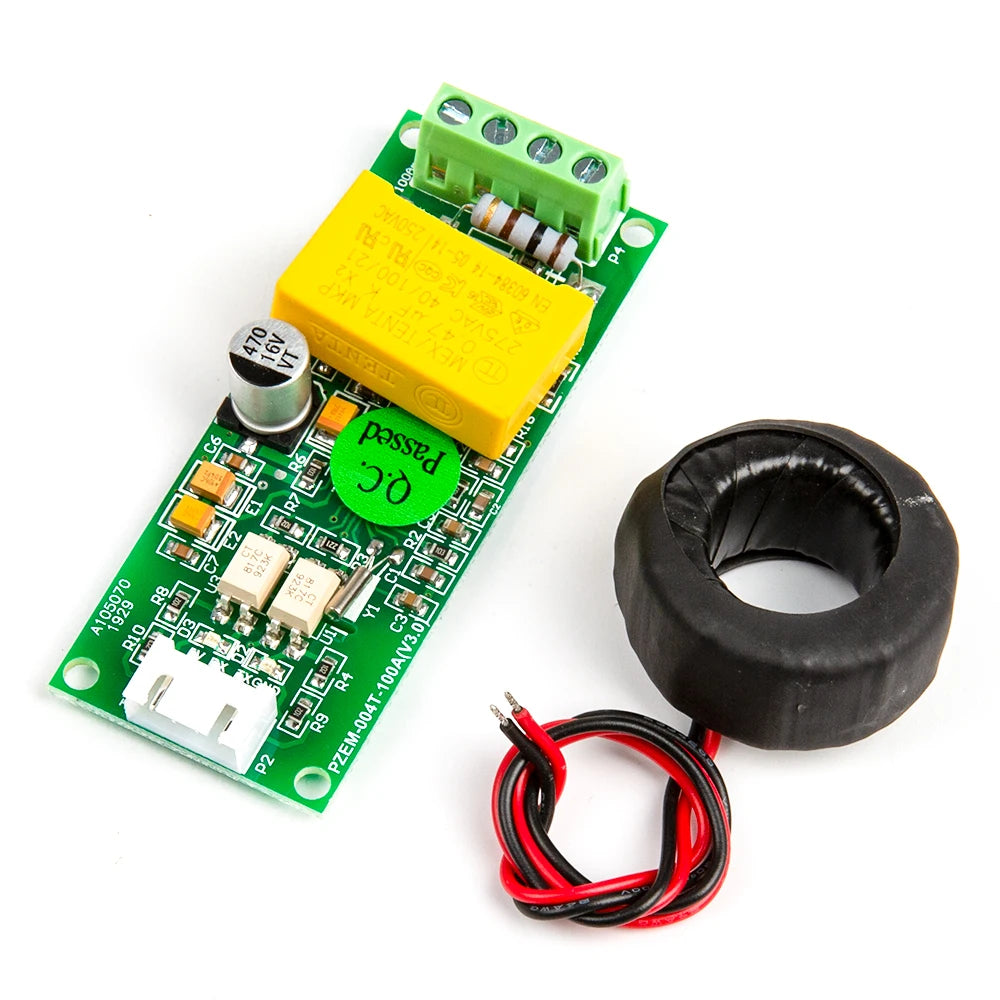

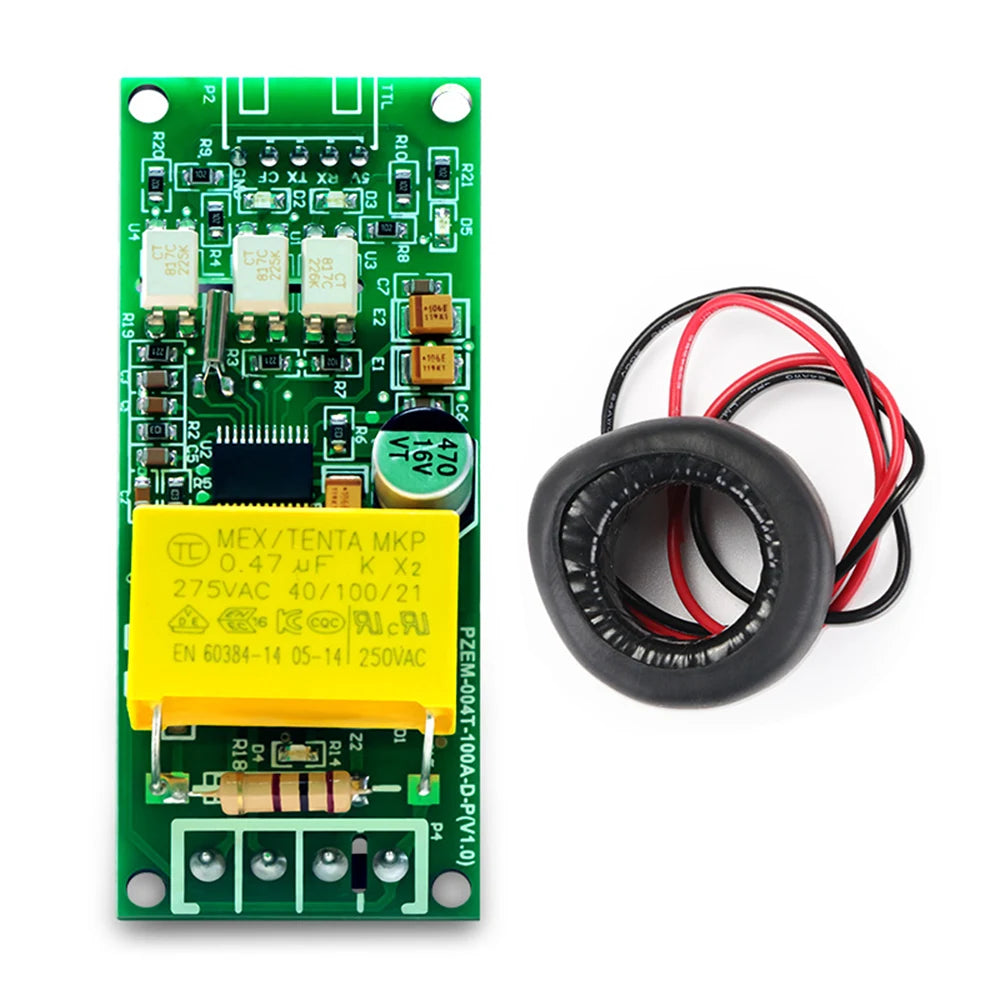

PZEM-004T AC Electric Energy Metering Monitor Without Case

K-TECHNICS
CT Type

Secure checkout

Friendly support

Hassle-free returns

📊 Core Measurements
The module replaces the need for separate voltage, current, and frequency sensors by processing:
  • Voltage: 80 V ~ 260 VAC

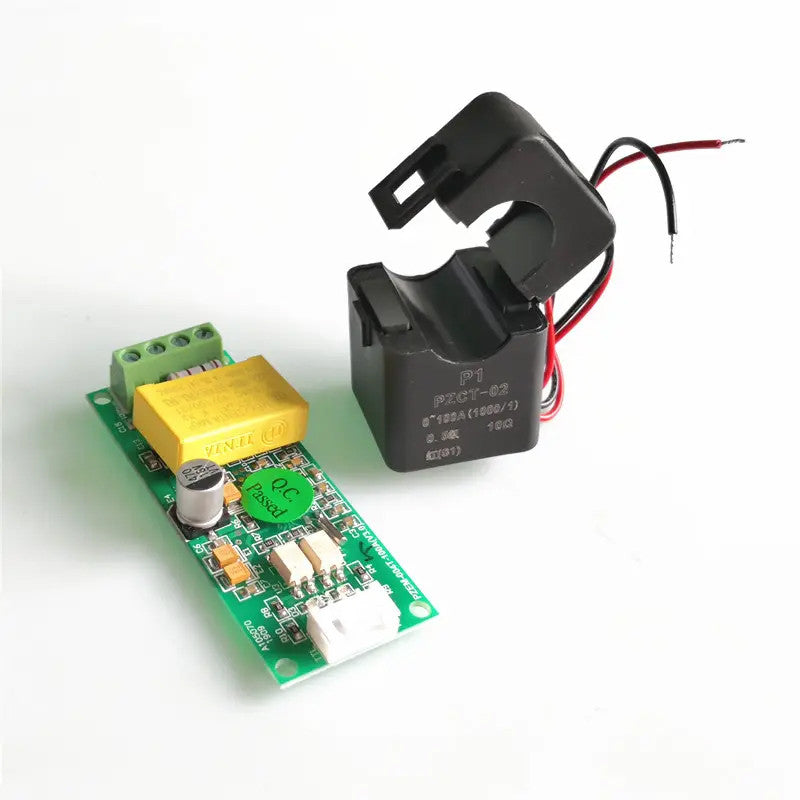

  • Current: 0 A ~ 100 A (when bundled with an external Current Transformer/CT coil)
  • Active Power: 0 kW ~ 23 kW
  • Energy Consumption: 0 kWh ~ 9999.99 kWh (retains memory on power loss)
  • Frequency: 45 Hz ~ 65 Hz
  • Power Factor: 0.00 ~ 1.00
⚙️ Technical Specifications
Parameter  Specification Details
Measurement Accuracy Grade 1.0 (±0.5% to 1% accuracy depending on parameter)
Interface Protocol Modbus-RTU application layer via a TTL UART interface
Baud Rate 9600 bps, 8 data bits, 1 stop bit, no parity (8N1)
Physical Dimensions Board size is roughly 7.3 × 3.0 × 2.3 cm
Isolation Design Built-in optocouplers for galvanic isolation between high voltage AC and low voltage logic pins
