PZEM-031 Digital DC Energy Meter (LCD Voltage, Current & Power Monitor)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

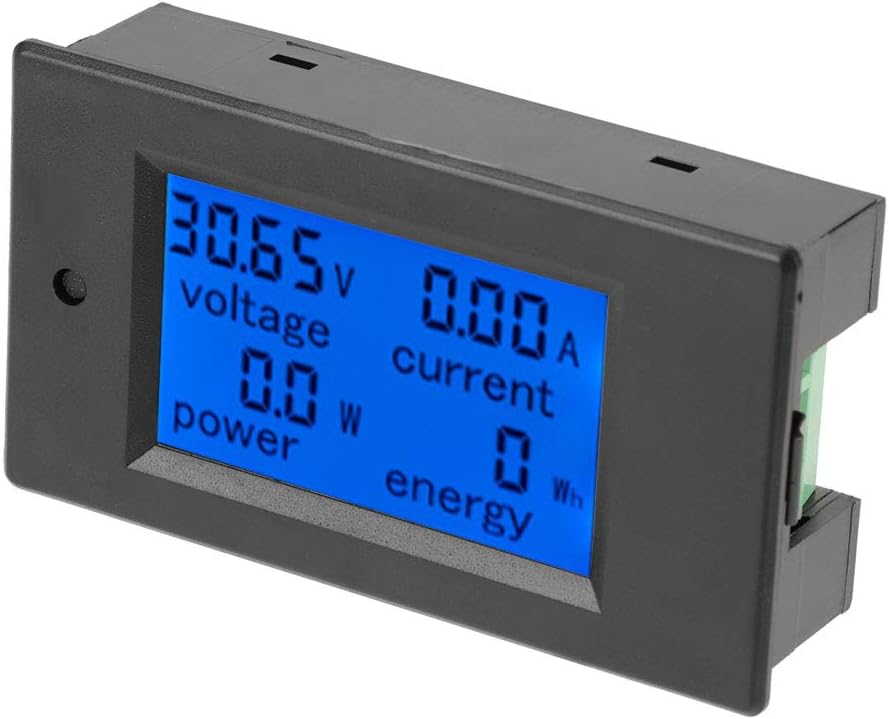

The PZEM-031 DC Energy Meter is a compact, panel-mount digital multimeter designed to give you total visibility into your DC electrical systems. Featuring a clear, backlit LCD screen, this all-in-one monitor simultaneously displays real-time voltage, current, active power, and total energy consumption, allowing you to track system performance at a glance.

Unlike models that require external components, the PZEM-031 features a built-in shunt, making it incredibly simple to wire inline with your load. It operates over a wide voltage range of 6.5V to 100V and can handle continuous currents up to 20A. It also includes smart features like a programmable voltage alarm and non-volatile memory that saves your accumulated energy data even if power is disconnected.

Perfect For:

  • Solar & Off-Grid Systems: Monitor the output of small solar panels, charge controllers, and 12V/24V battery banks in real-time.

  • RVs & Marine Applications: Keep a close eye on the power consumption of auxiliary 12V circuits, lighting, and appliances.

  • DIY Electronics Workbenches: Build a permanent monitoring panel for your custom DC power supplies and test stations.

Technical Specifications:

  • Model: PZEM-031

  • Operating Voltage: 6.5V to 100V DC

  • Current Measurement Range: 0 to 20A (Built-in shunt)

  • Power Measurement Range: 0 to 2000W

  • Energy Measurement Range: 0 to 9999kWh

  • Display: LCD with switchable blue backlight

  • Features: Voltage alarm threshold (flashing backlight alert), data reset button, and power-off data retention

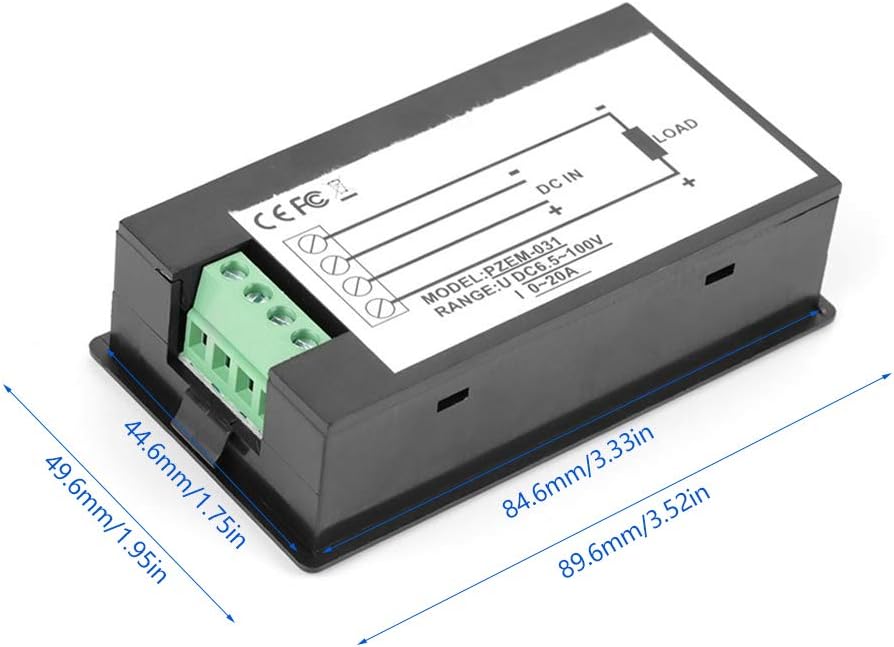

  • Dimensions: 89.6 x 49.6 x 24.4 mm (Standard panel-mount design)
