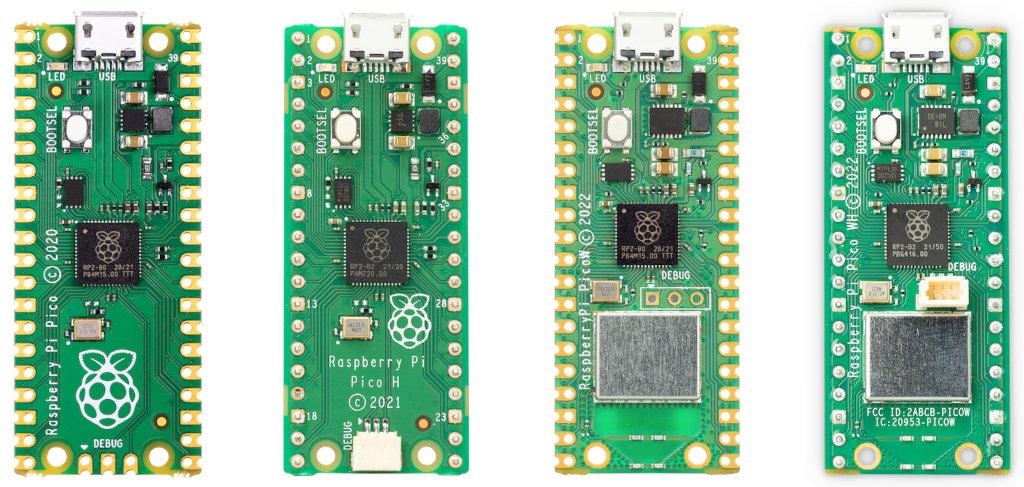

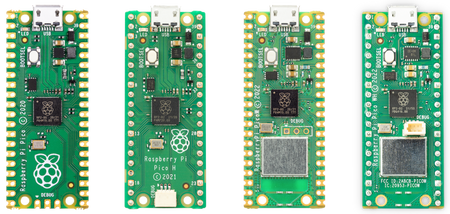

Raspberry Pi Pico Series (Pico, Pico W, Pico 2, & Pico 2 W)

K-TECHNICS
Variant

Secure checkout

Friendly support

Hassle-free returns

Key Features & Functional Advantages

  • Custom Raspberry Pi Silicon: Choose between the classic, highly documented RP2040 or the new, high-performance RP2350 chip with upgraded security (ARM TrustZone) and significantly more SRAM.

  • Wireless "W" Variants: The Pico W and Pico 2 W models feature an onboard 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2 module, making them the absolute best choice for creating connected IoT sensors and smart home devices.

  • Programmable I/O (PIO): A uniquely powerful hardware feature that allows you to create custom peripheral interfaces (like emulating an SD card or outputting DVI video) without tying up the main CPU cores.

  • Dual-Architecture (Pico 2 Series): The newest Pico 2 boards allow you to switch seamlessly between standard ARM Cortex-M33 cores or open-hardware Hazard3 RISC-V cores, making them a fantastic platform for experimenting with different architectures.

  • Castellated Edges: The side pins feature semi-circle cutouts, allowing you to easily solder header pins for breadboard prototyping, or surface-mount the entire Pico directly onto your own custom printed circuit board as a module.

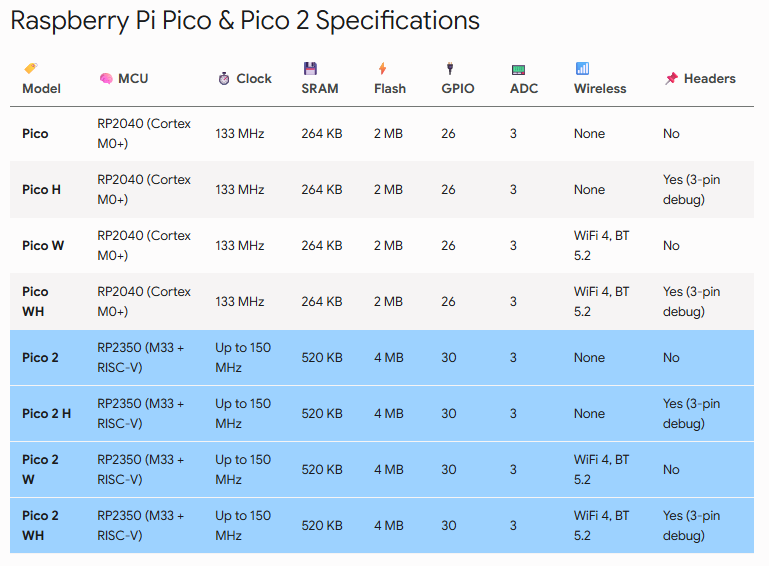

Technical Specifications

  • Device Type: Microcontroller Board (MCU)

  • Processor (Pico 1 Series): Dual-Core ARM Cortex-M0+ @ 133MHz (RP2040)

  • Processor (Pico 2 Series): Dual-Core ARM Cortex-M33 OR Dual-Core Hazard3 RISC-V @ 150MHz (RP2350)

  • Memory: 264KB SRAM (Pico 1) / 520KB SRAM (Pico 2)

  • Flash Storage: 2MB (Pico 1) / 4MB (Pico 2)

  • Wireless Connectivity: 2.4GHz Wi-Fi 4 & Bluetooth 5.2 (Only on "W" models)

  • I/O Pins: 26 Multi-purpose GPIO pins (including ADC channels)

  • Peripherals: SPI, I2C, UART, PWM, and PIO state machines

  • Power Input: 1.8V to 5.5V DC (Via micro-USB or VSYS pin)

  • Dimensions: 21mm x 51mm
