RC522 RFID Reader & Writer Module 13.56MHz

K-TECHNICS
In stock
KSh500.00

Secure checkout

Friendly support

Hassle-free returns

Add secure RFID and contactless card functionality to your electronics projects with the RC522 RFID Reader & Writer Module. Operating at 13.56MHz, this compact and reliable module supports MIFARE RFID cards and tags, making it ideal for access control systems, attendance tracking, smart locks, inventory management, and IoT applications.

Key Features:

  • Complete Prototyping Kit: Ships with the RC522 reader module, a blank S50 RFID smart card, and an RFID key fob to get you testing immediately.

  • Multi-Interface Support: Easily integrates with microcontrollers via high-speed SPI, I2C, or UART protocols.

  • Plug-and-Play Compatibility: Fully supported by standard open-source libraries (like the MFRC522 Arduino library) for quick setup.

  • Low Power Consumption: Operates on a power-efficient 3.3V logic supply, complete with a low-power sleep mode for battery-powered builds.

Technical Specifications:

  • Operating Frequency: 13.56 MHz (ISM band)

  • Operating Voltage: 2.5V to 3.3V DC (Note: Do not connect to 5V power supply)

  • Operating Current: 13–26mA (Idle: 10–13mA, Sleep: < 80µA)

  • Communication Interface: SPI (Default, up to 10Mbit/s), I2C, UART

  • Supported Card Types: MIFARE1 S50, MIFARE1 S70, MIFARE Ultralight, MIFARE Pro, MIFARE DESFire

  • Read Range: Up to 50 mm (Depending on antenna tuning and tag type)

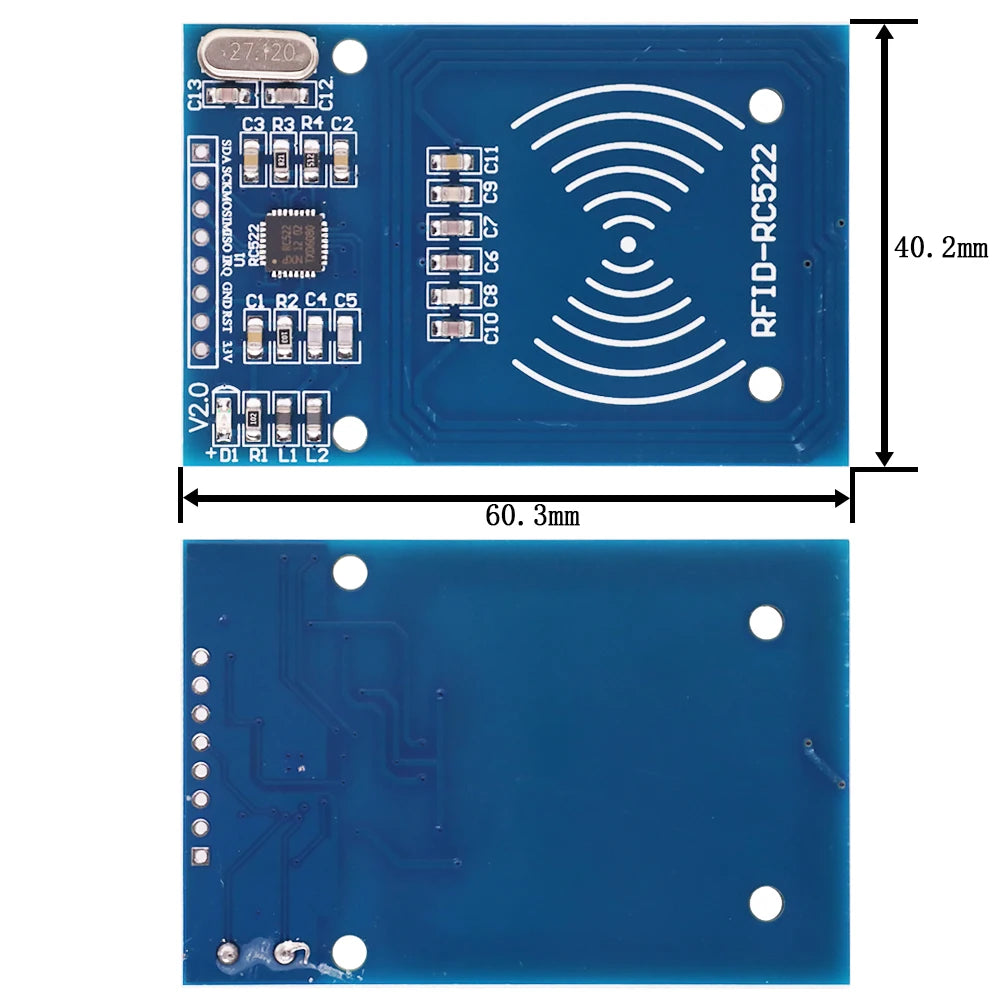

  • Module Dimensions: 40mm × 60mm

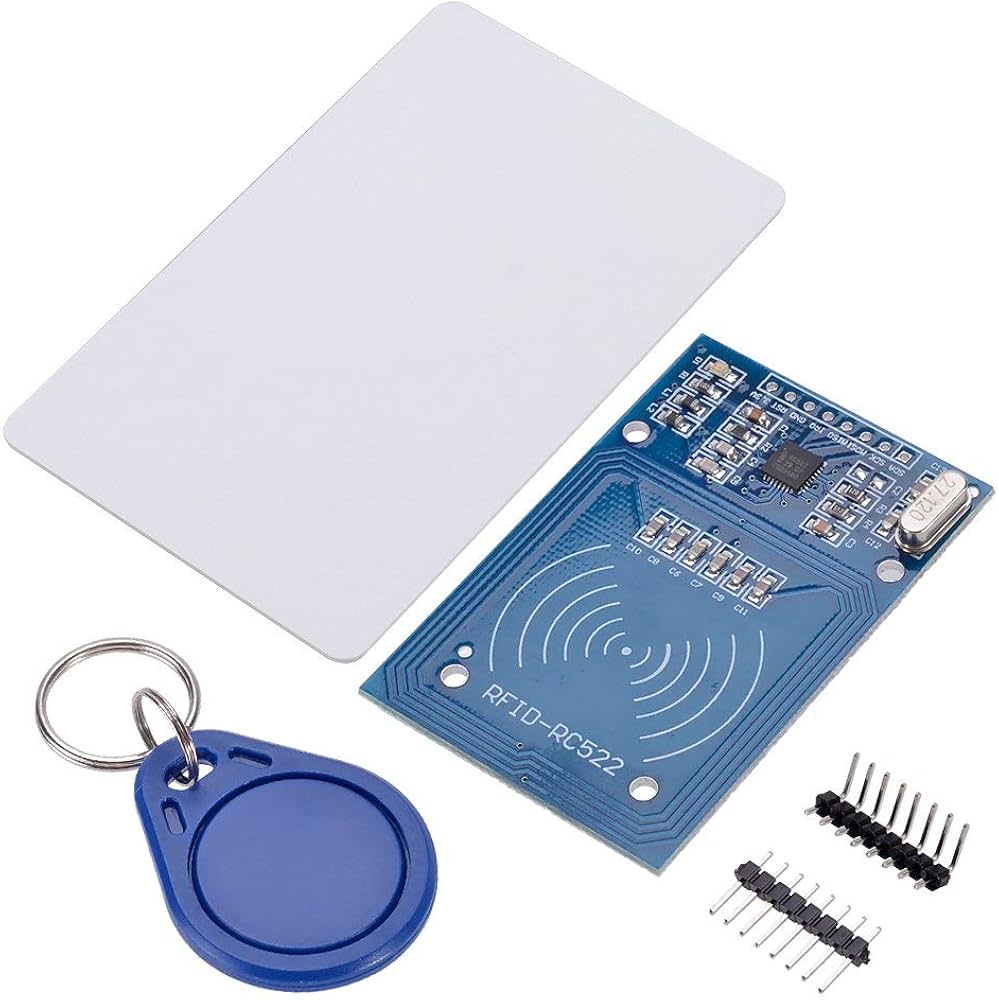

What’s in the Box:

  • 1 × RC522 RFID Reader Module

  • 1 × Standard Blank RFID Card (S50)

  • 1 × RFID Key Fob (S50)

  • 1 × Straight Pin Header

  • 1 × Right-Angle Pin Header
