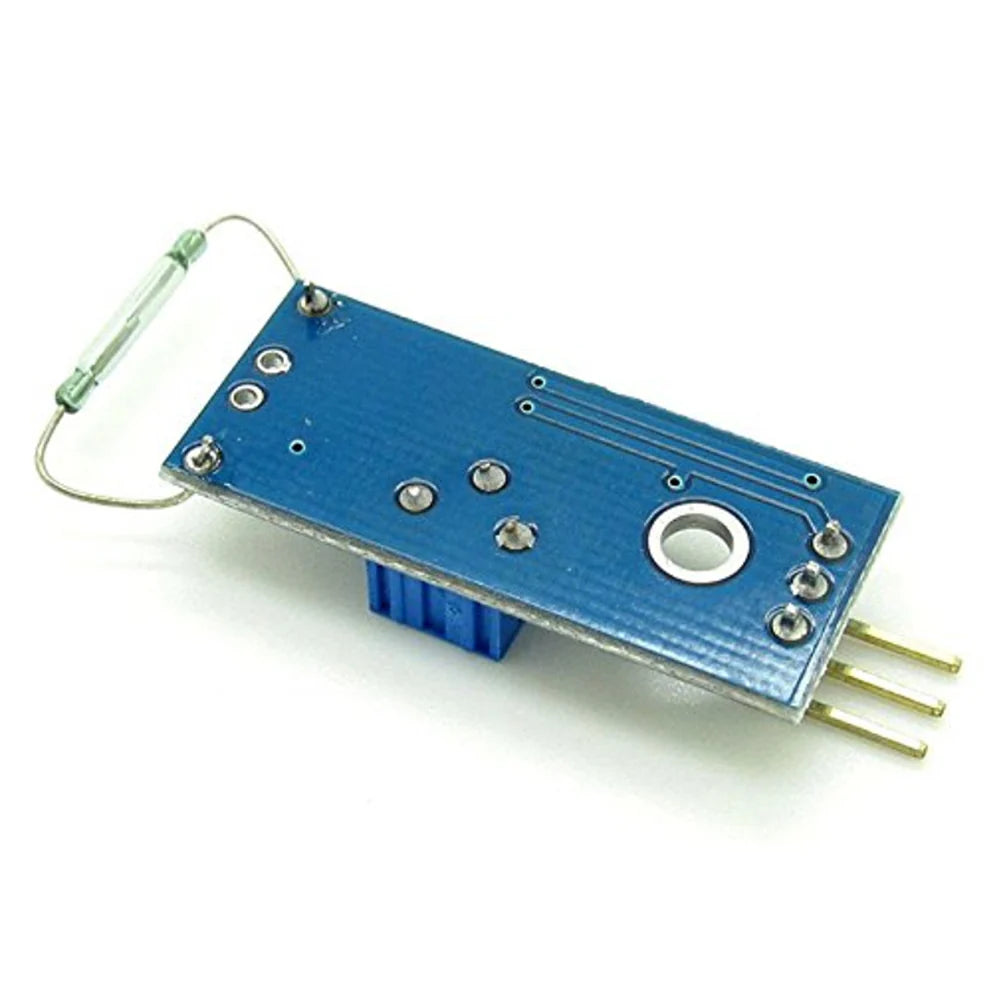

Reed switch sensor module Magnetic switch

K-TECHNICS
Out of stock
KSh600.00

Secure checkout

Friendly support

Hassle-free returns

A reed switch sensor module is an electrical switch operated by an applied magnetic field. It acts as a simple digital trigger that opens or closes a circuit when a magnet comes near.
How It Works
  • No Magnet: The internal metal contacts (reeds) stay apart. The circuit remains open.
  • Magnet Present: The magnetic field pulls the contacts together. The circuit closes.

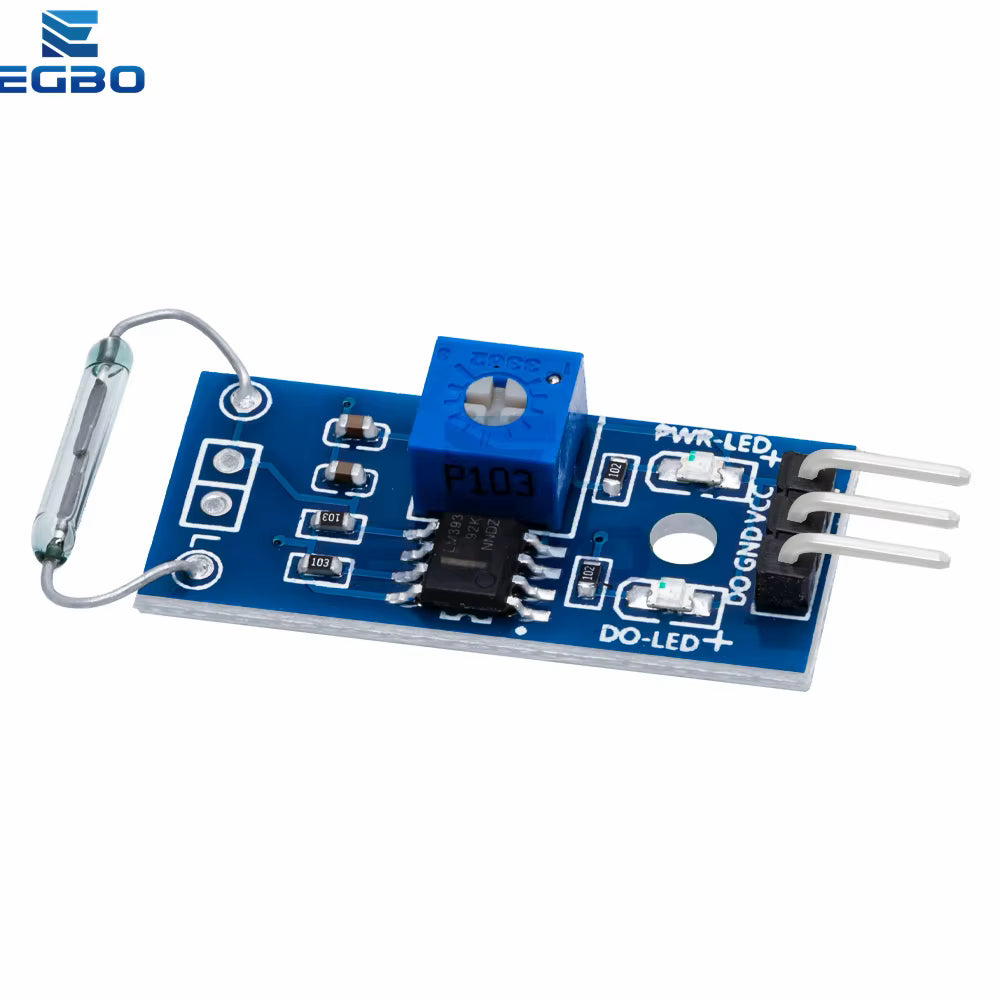

  • Module Board: Most modules include a comparator chip (like the LM393). This stabilizes the signal and provides both digital (DO) and analog (AO) outputs.
Typical Pinout
  • VCC: Power input (usually 3.3V to 5V).
  • GND: Ground connection.
  • DO: Digital output (High or Low signal).
Common Applications
  • Security: Door and window alarm sensors.
  • Automation: Limit switches for 3D printers or robots.
  • Utilities: Counting wheel revolutions on water or gas meters.
