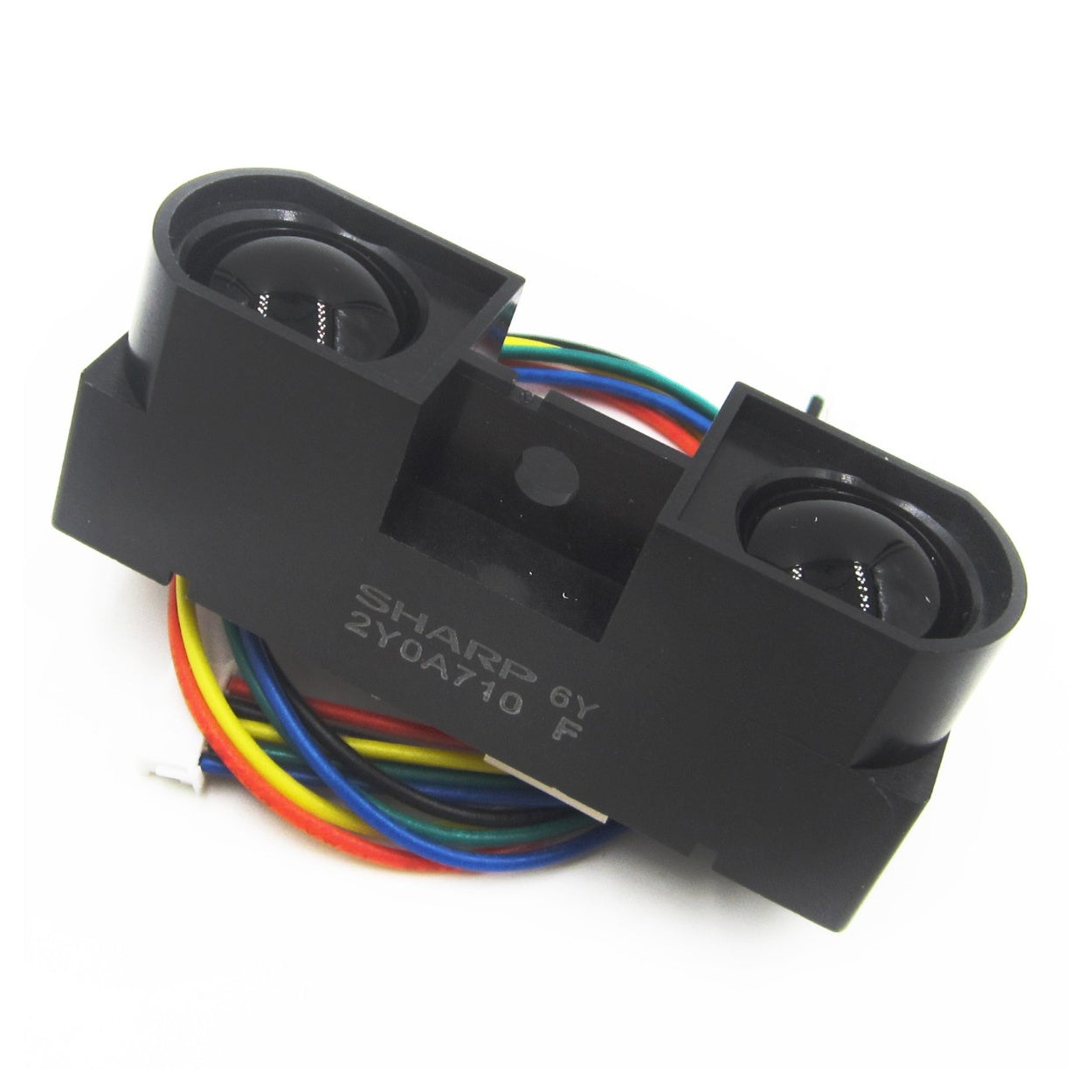

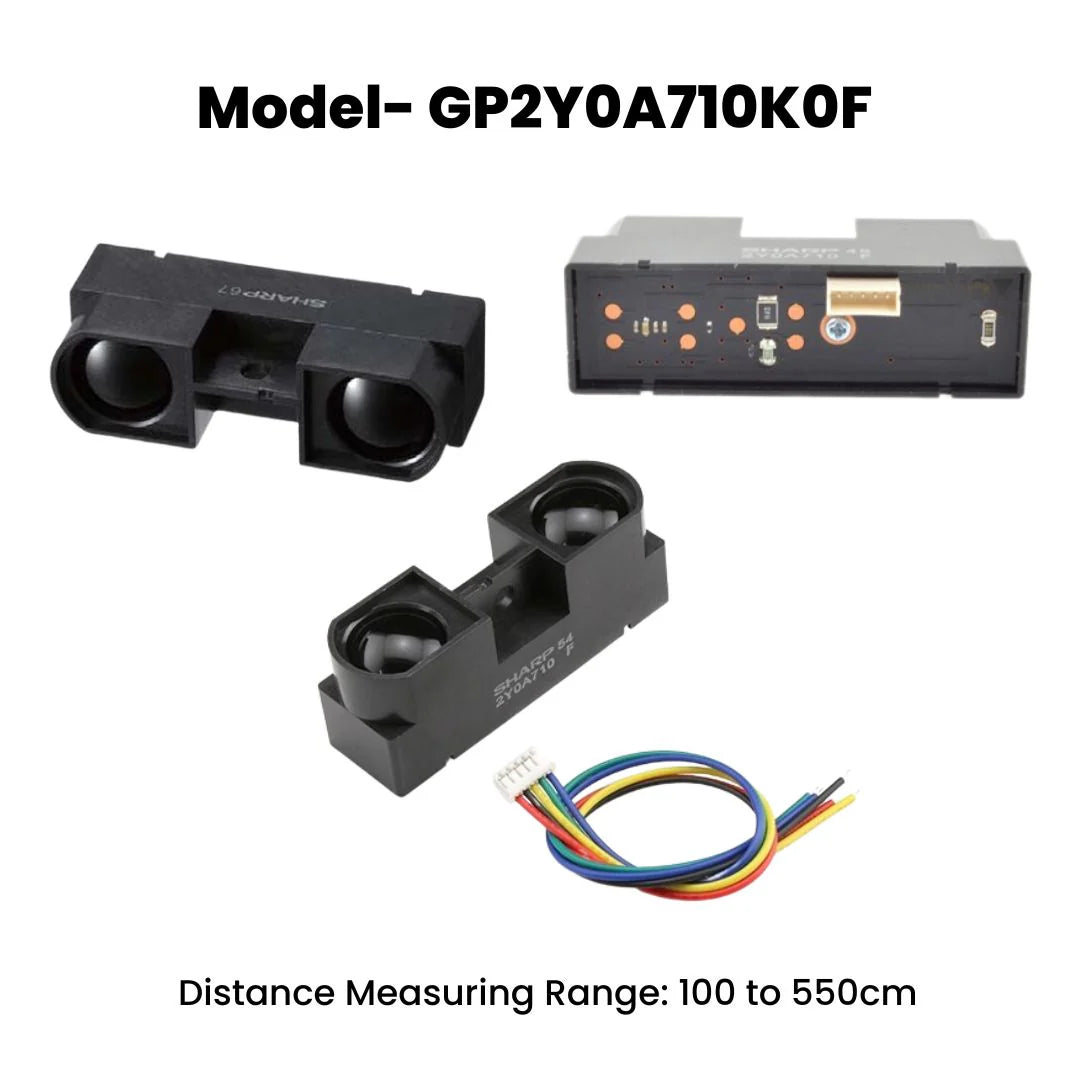

Sharp GP2Y0A710KOF Analog Distance Sensor

K-TECHNICS
Out of stock
KSh2,400.00

Secure checkout

Friendly support

Hassle-free returns

The Sharp GP2Y0A710K0F is an extra-long-range infrared (IR) distance measuring sensor unit. It uses a triangulation method combining an infrared emitting diode (IRED), a position-sensitive detector (PSD), and a signal processing circuit. Because it relies on triangulation rather than time-of-flight, its readings are not easily influenced by the reflectivity of the target object, operating duration, or environmental temperatures.
Core Technical Specifications
Parameter  Specification Details
Distance Range 100 cm to 550 cm (1 to 5.5 meters)
Output Type Analog voltage (Inversely proportional, non-linear)
Supply Voltage 4.5 V to 5.5 V DC
Current Consumption Typically 30 mA (Up to 50 mA during peak pulses)
Output Voltage Range Approximately 3.0 V (at 100 cm) to 1.4 V (at 550 cm)
Response / Update Time 38 ± 10 ms
Dimensions 58 mm × 17.6 mm × 22.5 mm
Pinout and Wiring Considerations
Unlike shorter-range Sharp sensors that utilize a simple 3-wire system, the GP2Y0A710K0F uses a 5-pin JST connector interface. This configuration uses parallel power tracks to accommodate higher internal current spikes:
  • Vcc Pins (2 pins): Connect both wires to the 5V DC power line.
  • GND Pins (2 pins): Connect both wires to the common Ground line.
  • Vo Pin (1 pin): Connects to the analog input pin (e.g., A0 on an Arduino) to read the voltage.
Important Wiring Tip: These sensors can introduce substantial electrical noise into your power lines. It is highly recommended to solder or bridge a 220µF bypass capacitor across the VCC and GND leads as close to the physical sensor module as possible.
