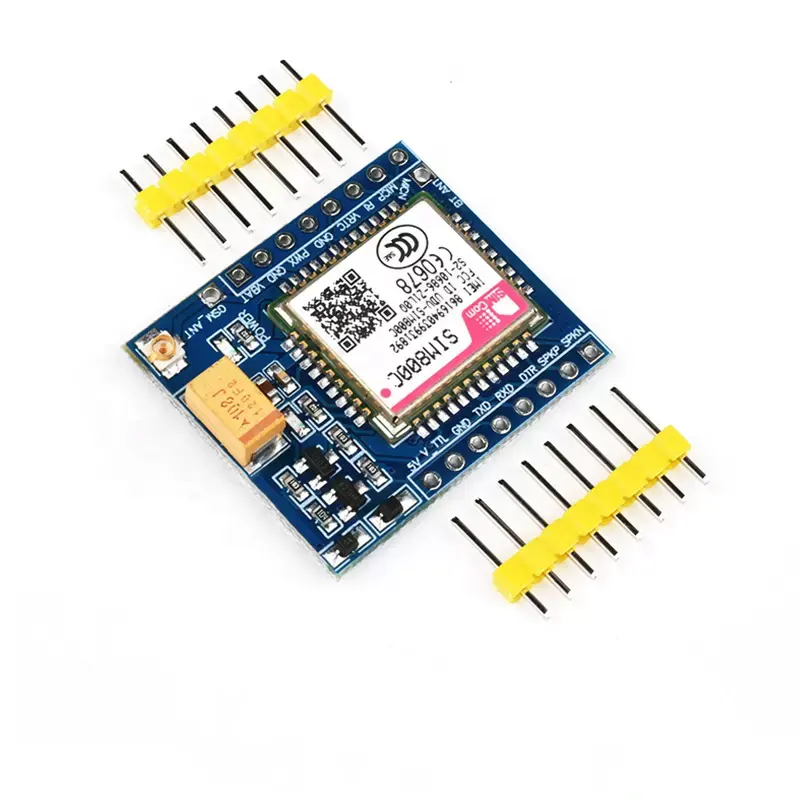

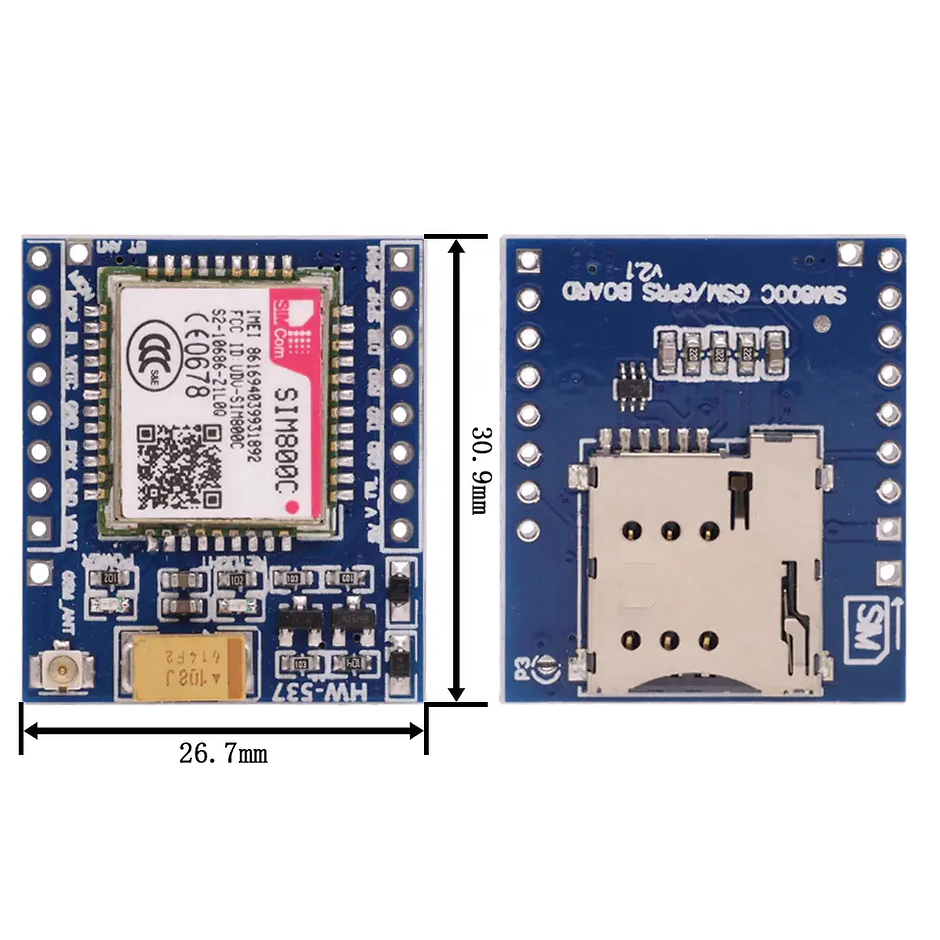

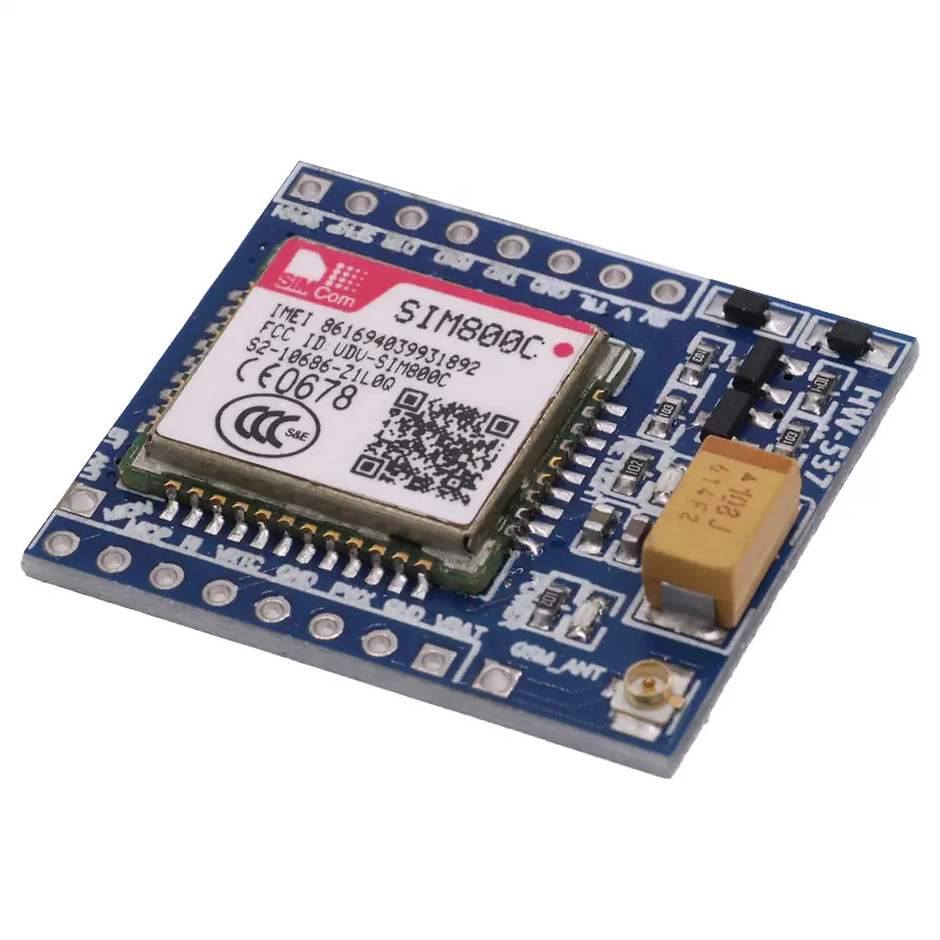

SIM800C GSM GPRS Cellular Module (5V V2.0 Breakout Board)

K-TECHNICS
In stock
KSh1,200.00

Secure checkout

Friendly support

Hassle-free returns

The SIM800C GSM GPRS Module 5V V2.0 is a highly versatile cellular breakout board designed to make connecting to mobile networks as simple as possible. What sets this V2.0 board apart from standard bare-bones modules is its built-in voltage regulation and logic-level shifting. It is natively compatible with standard 5V power supplies and 5V TTL logic, meaning you can wire it directly to an Arduino Uno or similar 5V microcontrollers without needing external buck converters or fragile logic level shifters.

Operating on quad-band GSM/GPRS frequencies, this module allows your project to send and receive SMS text messages, make voice calls, and upload data to the internet via a cellular GPRS connection. By using standard AT commands over a UART serial interface, it is incredibly straightforward to program and integrate into almost any remote electronics build.

Perfect For:

  • 5V Microcontroller Projects: The ultimate plug-and-play cellular module for standard Arduino Uno and Mega builds.

  • SMS Alarm Systems: Create custom security panels or water-level monitors that send an immediate text message alert when triggered.

  • Remote Data Logging: Push sensor data from isolated weather stations or agricultural monitors to a cloud dashboard using GPRS data.

Technical Specifications:

  • Module Chip: SIM800C

  • Network Compatibility: Quad-Band 850/900/1800/1900MHz (2G GSM/GPRS)

  • Logic Compatibility: 5V TTL (Directly compatible with 5V microcontrollers)

  • Communication Interface: UART Serial (AT Commands)

  • Features: Supports SMS, voice, and GPRS data transmission

  • Antenna Connection: IPEX / U.FL connector
