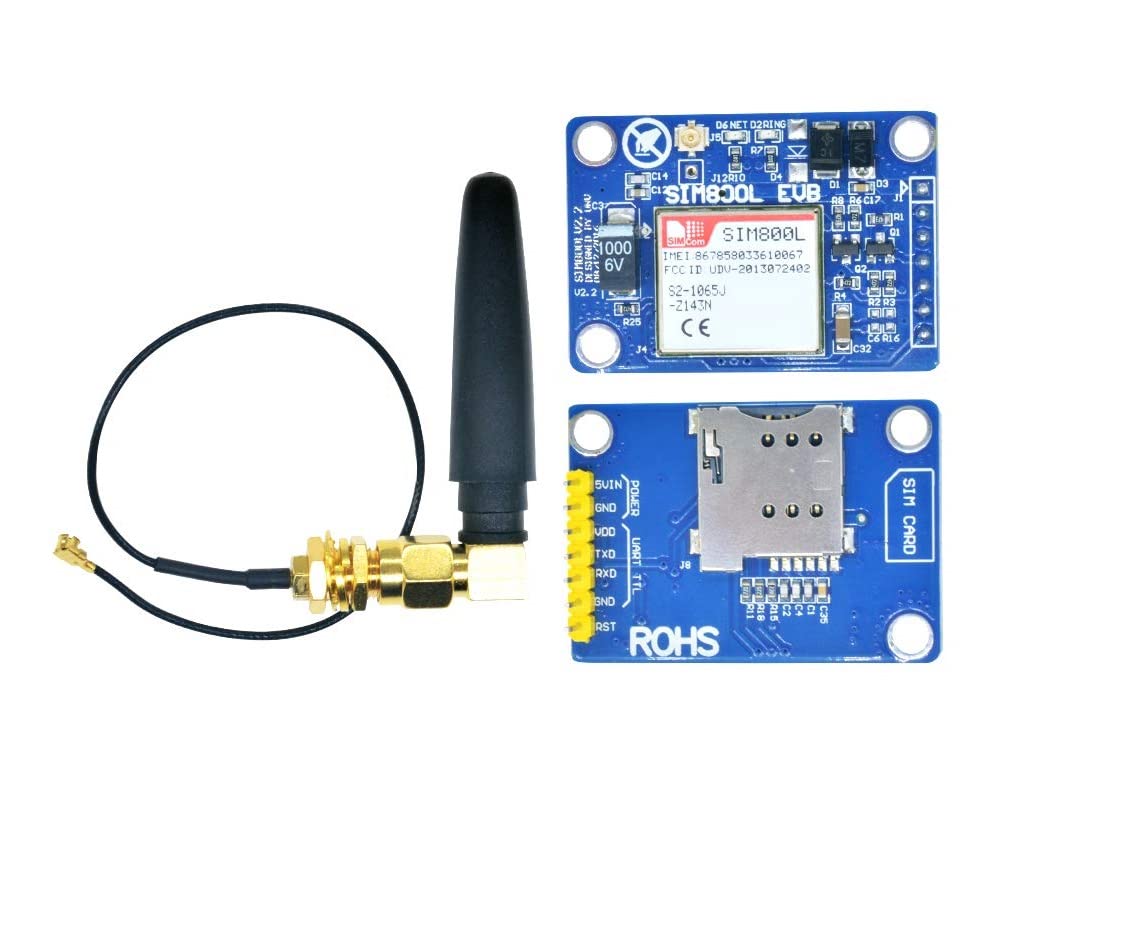

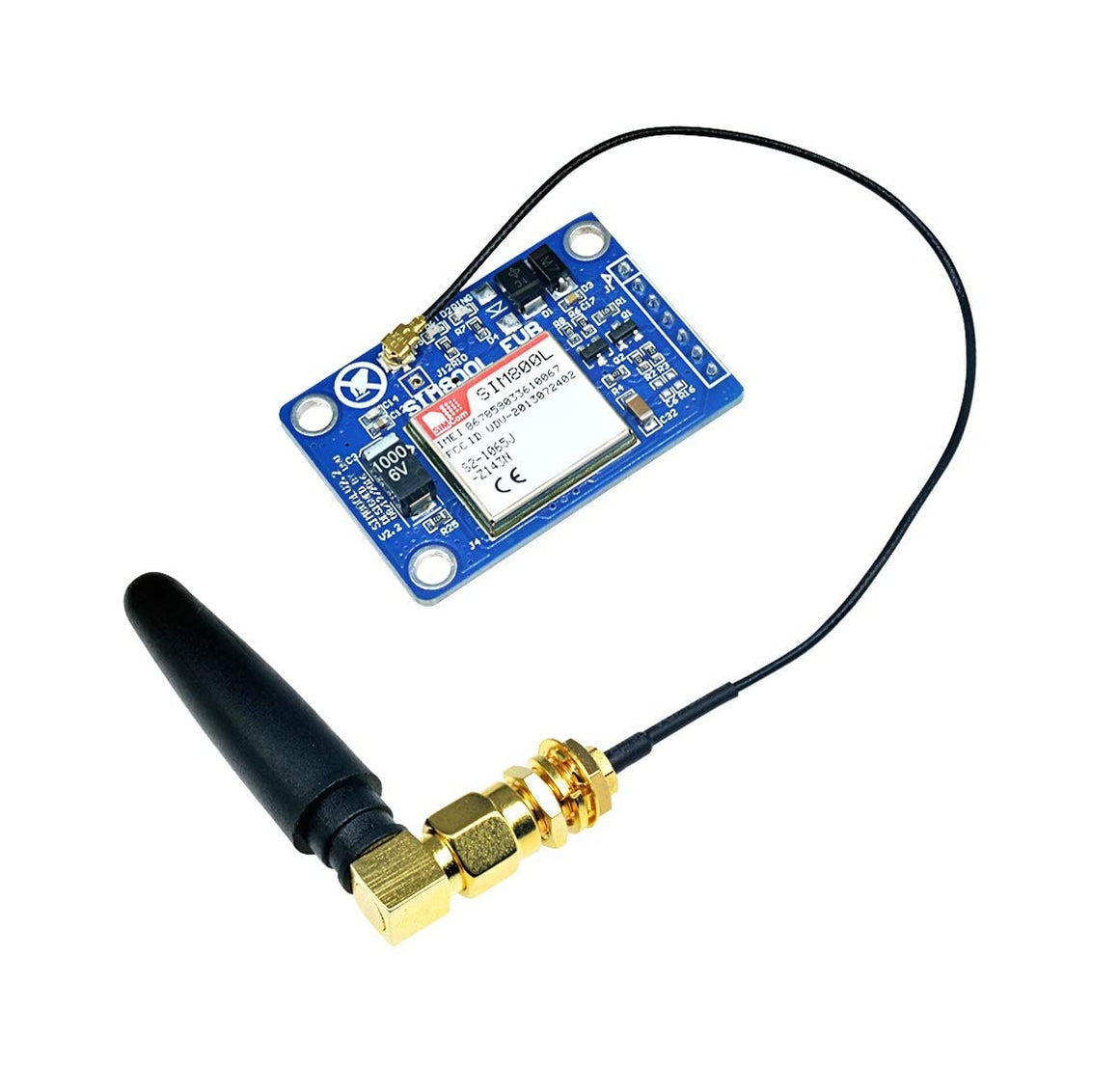

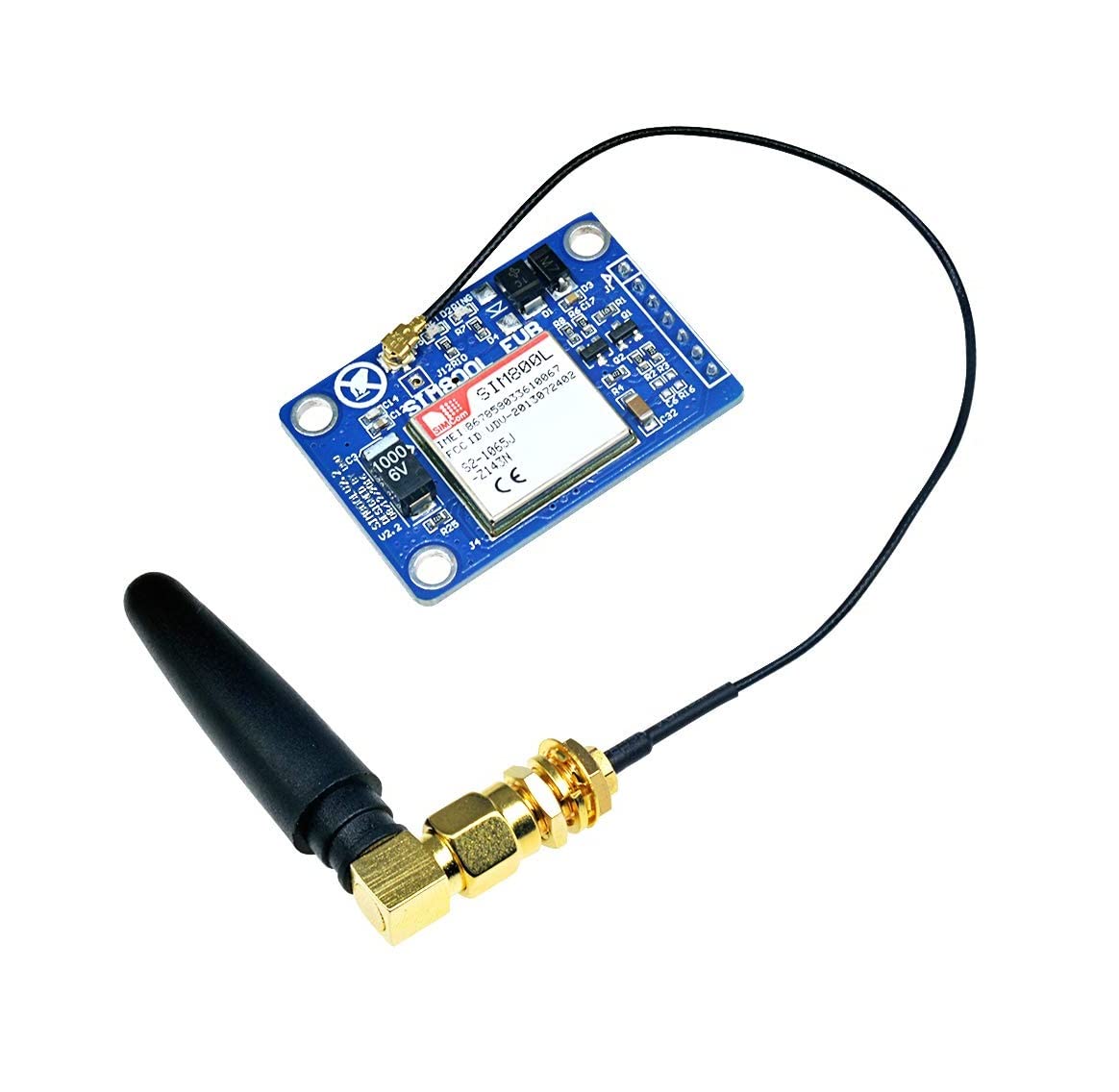

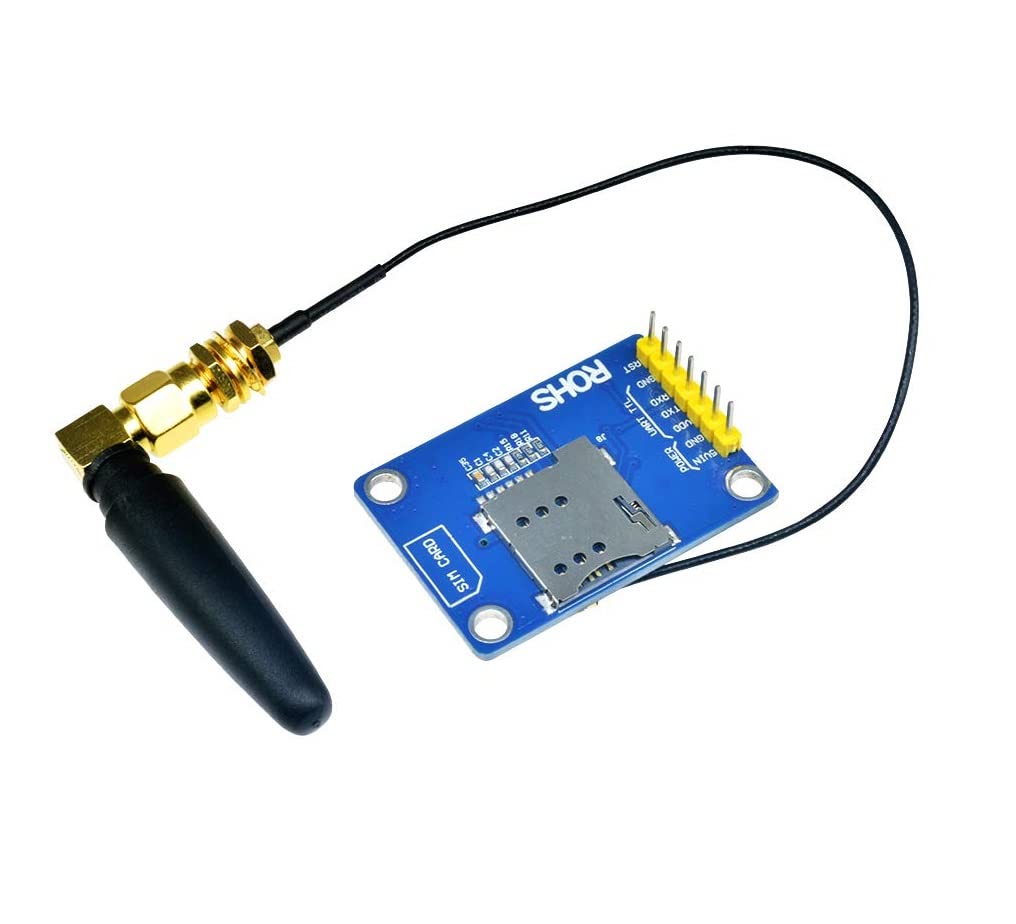

SIM800L V2.0 5V GSM/GPRS Cellular Module with Antenna

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

The SIM800L V2.0 GSM/GPRS Module takes the headache out of adding mobile network communication to your electronics projects. While standard SIM800L bareboards require strict 3.7V to 4.2V power supplies and external logic shifters to prevent damage, this V2.0 breakout board features onboard voltage regulation and logic-level conversion. This means you can power and interface the module directly using a standard 5V power supply and 5V microcontrollers, like the Arduino Uno, right out of the box.

Operating on quad-band 2G frequencies, this module allows your hardware to send and receive SMS text messages, make voice calls, and upload sensor data to cloud servers via a GPRS internet connection. The kit includes a matching antenna, ensuring you have everything you need to start sending AT commands over a standard UART serial interface immediately.

Perfect For:

  • Arduino Prototyping: The ultimate plug-and-play cellular solution for standard 5V microcontroller builds.

  • Remote SMS Alarms: Build standalone security systems, water leak detectors, or temperature monitors that instantly text your phone when triggered.

  • IoT Data Logging: Connect environmental sensors in remote areas without Wi-Fi and push the data directly to your online dashboard using GPRS.

Technical Specifications:

  • Cellular Chip: SIM800L

  • Network Compatibility: Quad-Band 850/900/1800/1900MHz (2G GSM/GPRS)

  • Operating Voltage: 5V DC (Via onboard regulator)

  • Logic Level: 5V TTL (Directly compatible with 5V microcontrollers on RX/TX pins)

  • Communication Interface: UART Serial (AT Commands)

  • Included Accessories: Cellular antenna (Typically spring or PCB style depending on batch) and header pins

  • SIM Slot: Micro SIM
