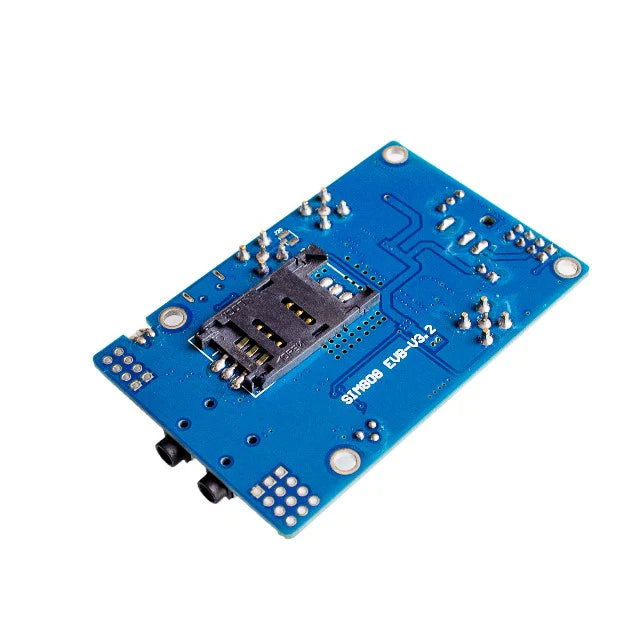

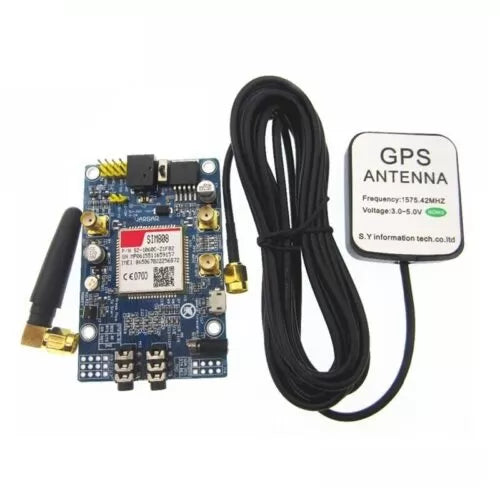

SIM808 GSM, GPRS & GPS Cellular Tracking Module

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

When your project needs to know exactly where it is and transmit that data over long distances, the SIM808 Cellular Module delivers. By combining a Quad-band GSM/GPRS cellular modem with a highly sensitive GPS navigation receiver in a single footprint, this board eliminates the need to wire multiple discrete modules together.

Using standard AT commands via a UART serial interface, you can easily command your microcontroller to send SMS messages, make voice calls, upload sensor data over a GPRS internet connection, and pull real-time latitude and longitude coordinates. This makes it an incredibly powerful tool for any project that leaves the boundaries of your local Wi-Fi network.

Perfect For:

  • Asset & Vehicle Tracking: Build custom GPS trackers for cars, drones, or valuable cargo that text or upload their coordinates in real-time.

  • Remote Weather & Data Logging: Collect environmental data in isolated locations and transmit it back to a central server via the GPRS cellular network.

  • Wearable Safety Devices: Design SOS systems that can simultaneously dial a contact and transmit precise location data during an emergency.

Technical Specifications:

  • Cellular Network: Quad-band GSM/GPRS (850/900/1800/1900MHz)

  • Location Tracking: Integrated GPS/CNSS navigation (Supports GPS NMEA protocol)

  • Communication Interface: UART (AT Commands)

  • Operating Voltage: Typically 3.4V to 4.4V (Check your specific breakout board, as many include 5V logic level shifters and voltage regulators)

  • Antenna Connections: Separate IPEX/U.FL connectors for both GSM and GPS antennas

  • SIM Slot: Standard micro SIM or nano SIM depending on the board variant

  • Additional Features: Supports SMS, voice calls, and basic Bluetooth functionality
