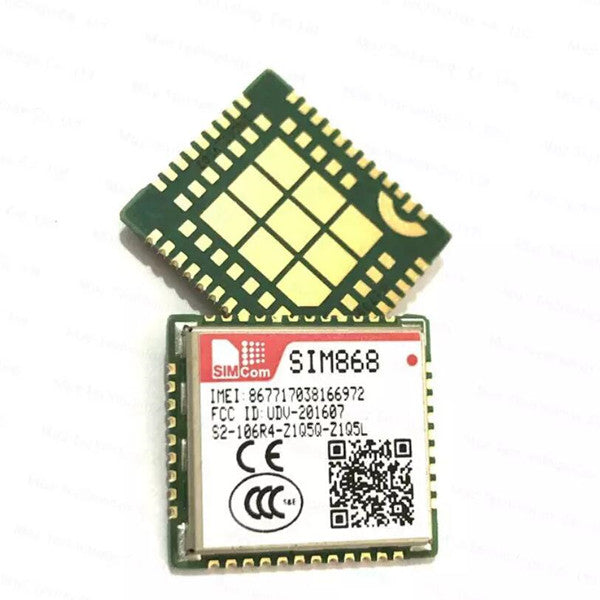

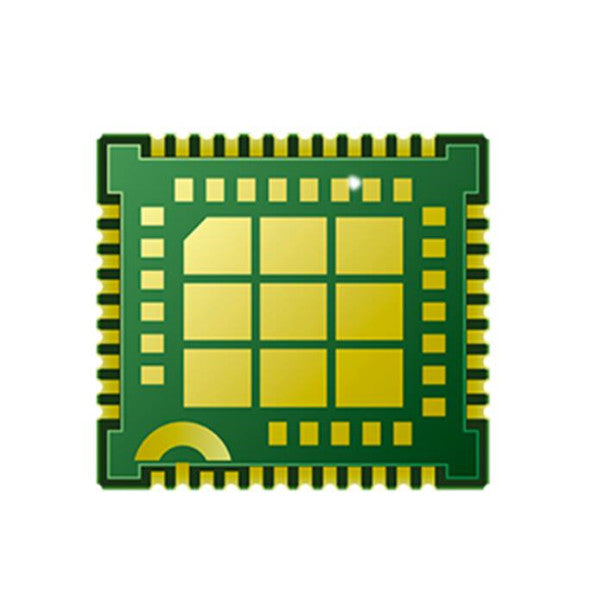

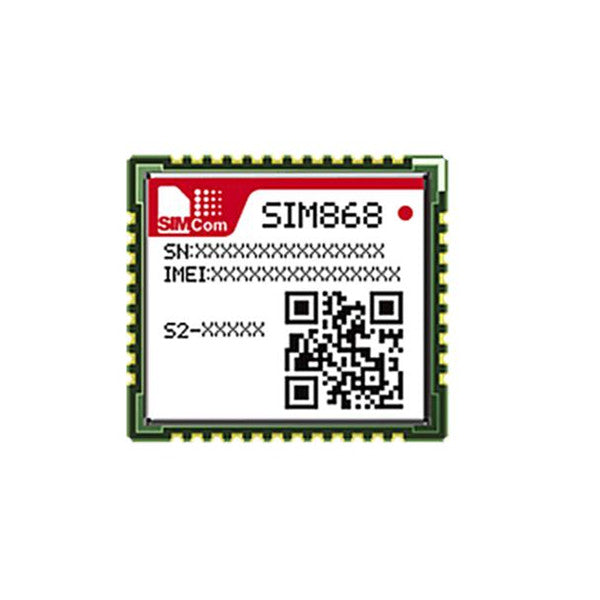

SIM868 GSM/GPRS, Bluetooth & GNSS Cellular Module (SMD IC / LCC Package)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

When you are ready to transition from prototyping with bulky breakout boards to manufacturing your own custom hardware, the SIM868 Surface-Mount Cellular Module is the component you need. This ultra-compact LCC (Leadless Chip Carrier) package integrates Quad-band GSM/GPRS, a highly accurate GNSS receiver (GPS and GLONASS), and Bluetooth 3.0 into a single chip footprint measuring just 15.7 x 17.6 mm.

Designed specifically for OEM integration and mass production, this module allows engineers to design incredibly small, power-efficient IoT devices. By utilizing this bare module, you gain complete control over your PCB layout, power management circuitry, and antenna placement, allowing you to optimize your product's size and battery life to the absolute limit.

Perfect For:

  • Custom PCB Manufacturing: Integrate cellular and GPS tracking directly onto your proprietary motherboards for commercial production.

  • Ultra-Compact Wearables: Design smartwatches, emergency pendants, or biometric monitors where internal space is at a premium.

  • Discrete Micro-Trackers: Build custom asset tags, pet collars, or fleet management devices with an incredibly small physical footprint.

Technical Specifications:

  • Form Factor: 77-pin LCC + LGA Package

  • Dimensions: 15.7mm x 17.6mm x 2.3mm

  • Cellular Network: Quad-band 850/900/1800/1900MHz (2G GSM/GPRS)

  • Location Tracking: High-sensitivity GNSS (GPS, GLONASS, BeiDou) with 33 tracking and 99 acquisition channels

  • Local Connectivity: Bluetooth 3.0 (Supports SPP and audio profiles)

  • Operating Voltage: 3.4V to 4.4V

  • Power Consumption: Ultra-low power consumption in sleep modes

  • Interfaces: UART, USB, RTC, GPIO, ADC, and dedicated antenna pads
