SIM868 GSM, GPRS, GPS & Bluetooth Cellular Module (Antennas Included)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

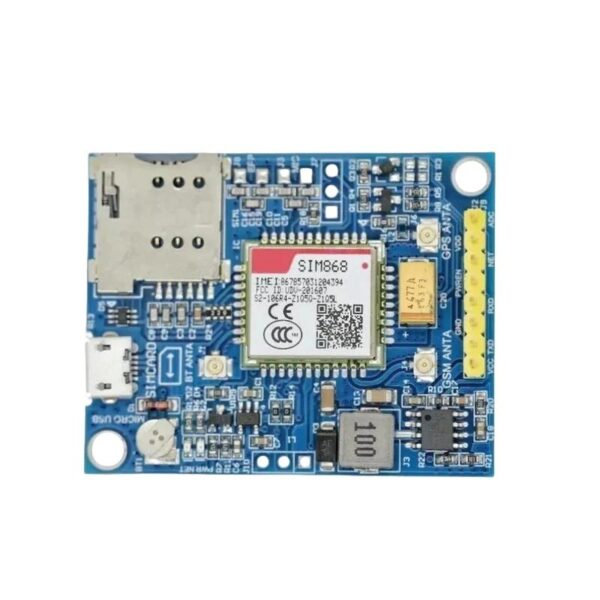

The SIM868 Cellular Module is the ultimate all-in-one connectivity board for space-constrained projects. Advancing upon the foundation of older modules like the SIM808, the SIM868 significantly reduces the physical footprint while offering a powerful trifecta of wireless capabilities: Quad-band GSM/GPRS for cellular data and SMS, a highly sensitive GNSS receiver for global positioning (GPS/GLONASS), and Bluetooth 3.0 for short-range local communication.

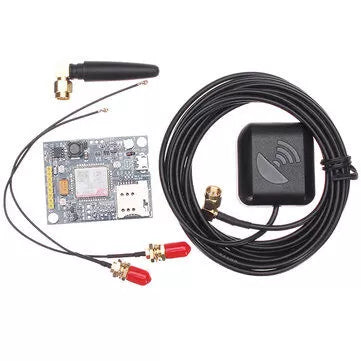

This complete kit includes the necessary antennas, allowing you to hit the ground running right out of the box. Controlled via standard AT commands over a serial interface, this module makes it simple to command your microcontroller to upload telemetry data to a cloud server, track physical coordinates in real-time, or communicate locally with Bluetooth peripherals.

Perfect For:

  • Wearables & Micro-Trackers: The exceptionally small IC footprint makes it ideal for integrating into pet trackers, smartwatches, or discrete asset monitors.

  • Fleet & Vehicle Management: Build comprehensive OBD-II scanners or vehicle trackers that log precise GPS coordinates and transmit them via GPRS.

  • Smart Agriculture & Telemetry: Collect data from remote Bluetooth sensors and relay that information over the cellular network to a central dashboard.

Technical Specifications:

  • Cellular Network: Quad-band 850/900/1800/1900MHz (2G GSM/GPRS)

  • Location Tracking: Multi-constellation GNSS (GPS, GLONASS, BDS) for fast, highly accurate positioning

  • Local Connectivity: Bluetooth 3.0 (Supports SPP and audio profiles)

  • Communication Interface: UART (AT Commands)

  • Antenna Connections: Separate U.FL / IPEX connectors for GSM, GPS, and Bluetooth (Antennas included in the kit)

  • SIM Card: Integrated micro SIM card slot

  • Operating Voltage: Typically 3.4V to 4.4V (Check your specific breakout board for 5V compatibility)
