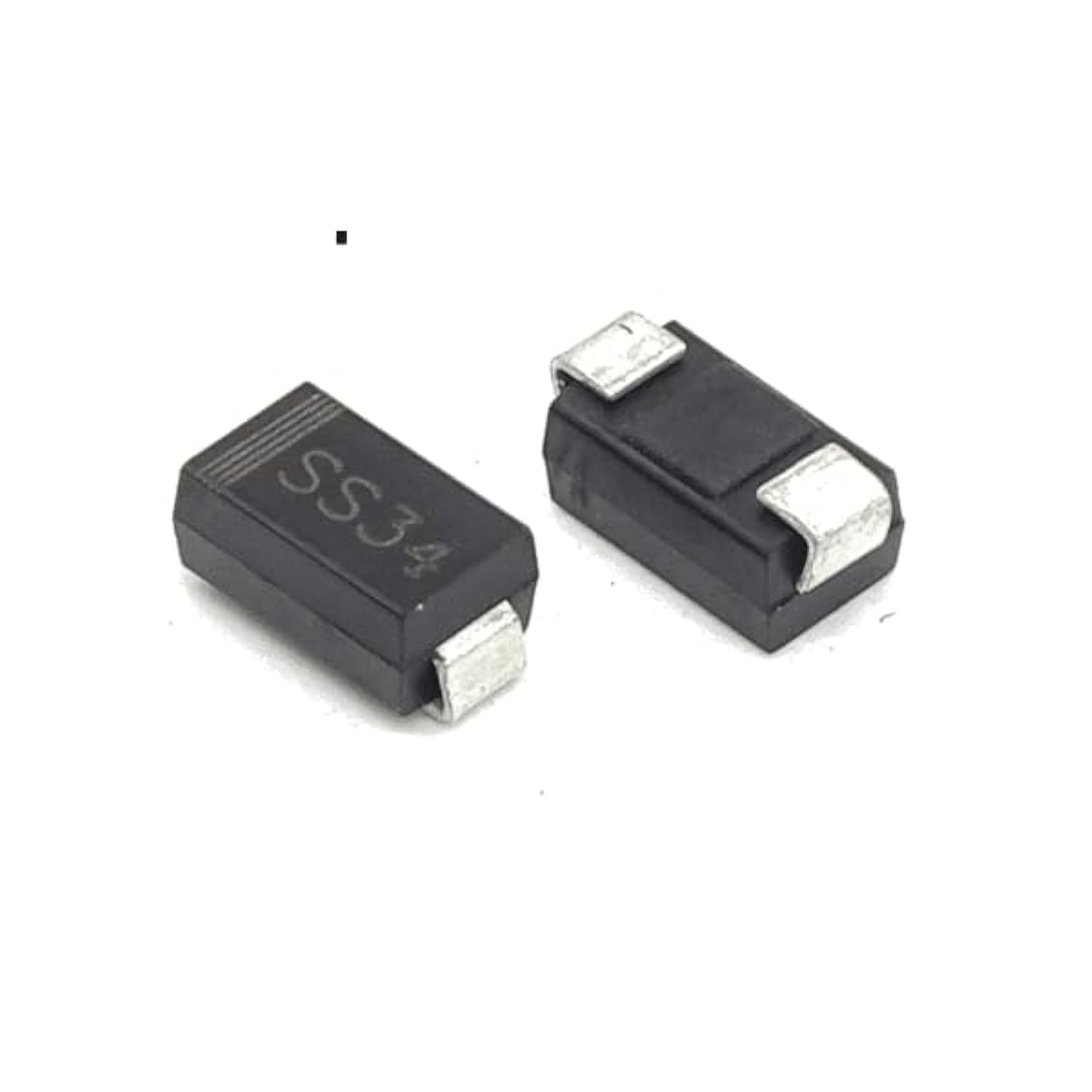

SMD Schottky Diode SS34 (1N5822) – 3A 40V High-Efficiency Rectifier

K-TECHNICS
In stock
KSh5.00

Secure checkout

Friendly support

Hassle-free returns

🔧 Key Features:

  • High Current Capability: Supports up to 3A average forward current
  • Low Forward Voltage Drop: ~0.5V for improved efficiency and reduced heat
  • Fast Switching Speed: Perfect for high-frequency applications
  • High Surge Capacity: Handles peak surge currents up to 100A
  • Compact SMD Package: DO-214AB (SMC) for easy PCB mounting

⚡ Specifications:

  • Model: SS34 / 1N5822 Equivalent
  • Type: Schottky Barrier Diode
  • Forward Current (IF): 3A
  • Reverse Voltage (VR): 40V
  • Forward Voltage (VF): ≤ 0.5–0.55V
  • Operating Temperature: -55°C to +150°C
  • Package: SMC (DO-214AB), Surface Mount

📌 Applications:

  • Switching power supplies
  • DC-DC converters
  • Reverse polarity protection
  • Freewheeling and flyback circuits
  • Battery charging systems
