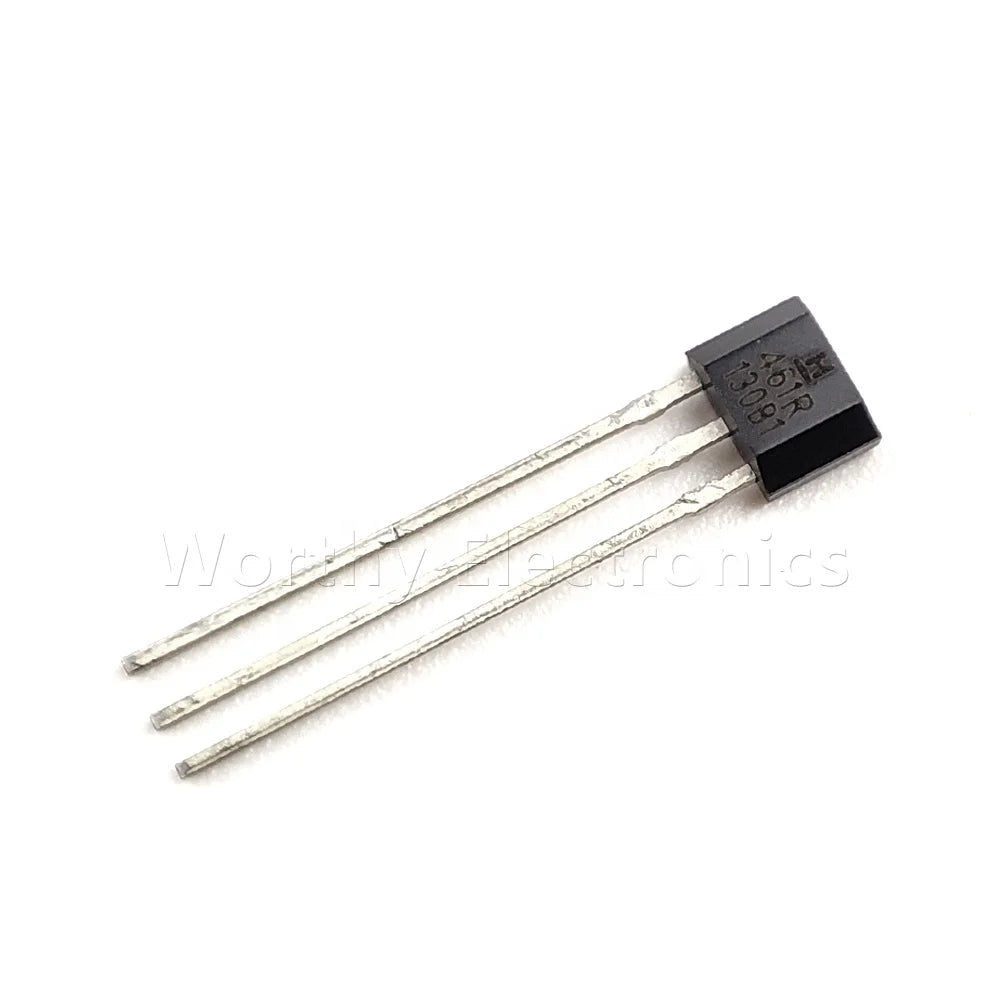

SS461R Hall Effect Sensor

K-TECHNICS
Out of stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

The Honeywell SS461R is a high-sensitivity, bipolar latching digital Hall-effect sensor. It turns ON when exposed to a South magnetic pole and remains latched until a North magnetic pole turns it OFF.
Core Specifications
  • Voltage: 3.0 Vdc to 24 Vdc
  • Output: Digital open-collector (requires a pull-up resistor)
  • Current: 20 mA maximum
  • Sensitivity: 50 Gauss typical
  • Temperature: -40°C to 150°C
Pinout (Flat Face Front, Pins Down)
  1. Pin 1: VCC (Power Input)
  2. Pin 2: GND (Ground)
  3. Pin 3: OUT (Signal Output)
Basic Wiring
  • Connect a 10 kΩ pull-up resistor between Pin 1 (VCC) and Pin 3 (OUT).
  • South pole pulls OUT to 0V (Low).
  • North pole releases OUT to VCC (High).
